Built in Shandong. Engineered for global refrigeration systems.

PRODUCT CATALOGUE

Refrigeration equipment by series

Browse product families and catalogue series. Final selection is confirmed against refrigerant, capacity, pressure, temperature, material and connection requirements.

PRODUCT CATALOGUE

All products

55 products

Miniature vessels

SGL Series Filter

Working media

R134aR22R407C

Series models: SGL-120 to SGL-489
Filter cores: 1 to 4 cartridges
Tube outside diameter: 20 to 89 mm

Submit conditions Selection data →

Miniature vessels

SGS Series Filter

Working media

R134aR22R407C

Series models: SGS-157 to SGS-3133
Filter cores: 1 to 3 cartridges
Tube outside diameter: 57 to 133 mm

Submit conditions Selection data →

Miniature vessels

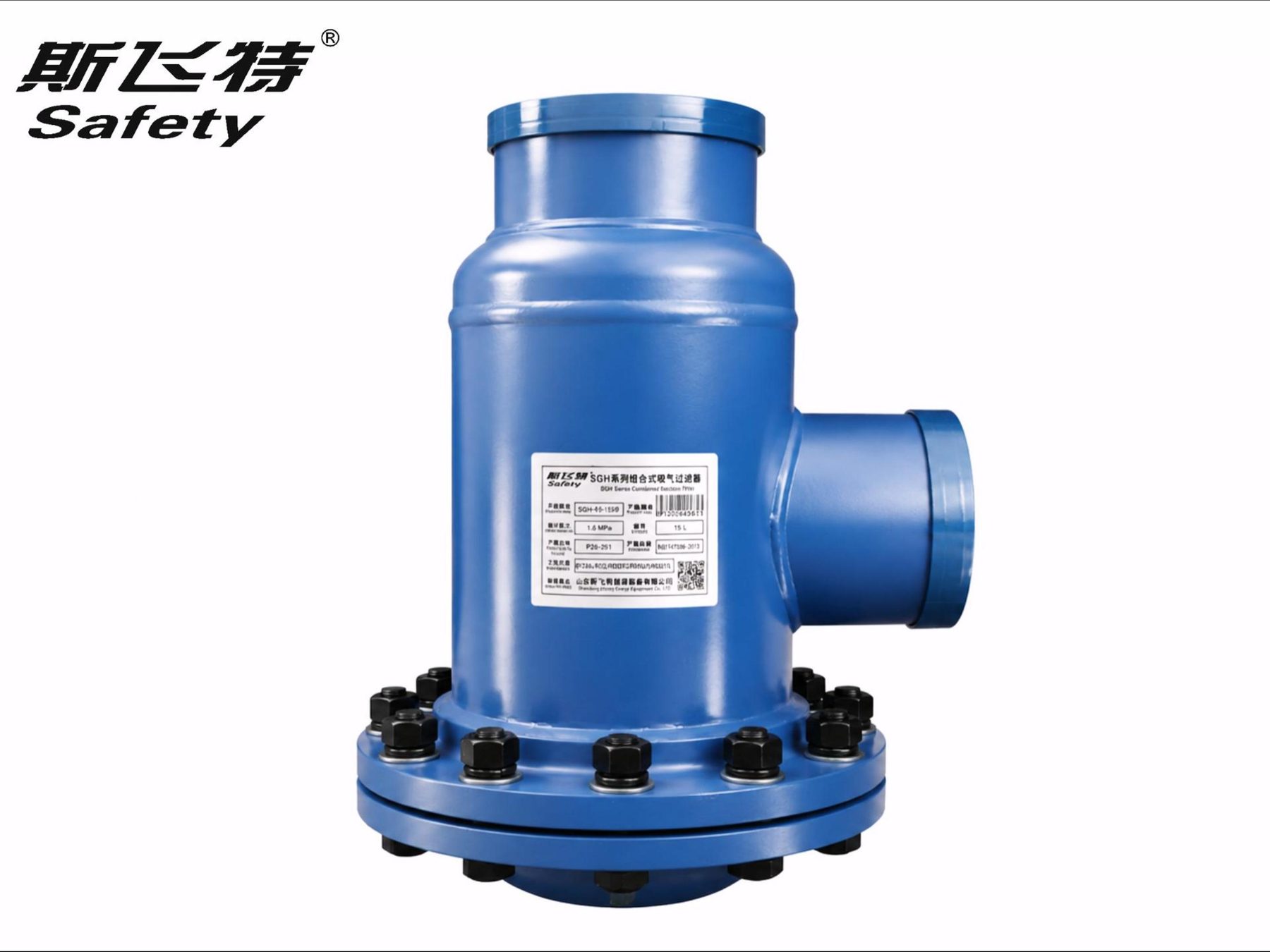

SGH Series Combined suction filter

Working media

R134aR22R407C

Application: Large-unit suction-line filtration
Filter elements: SFE-48 or SFE-48W
Installation: Vertical, flange upward

Submit conditions Selection data →

Miniature vessels

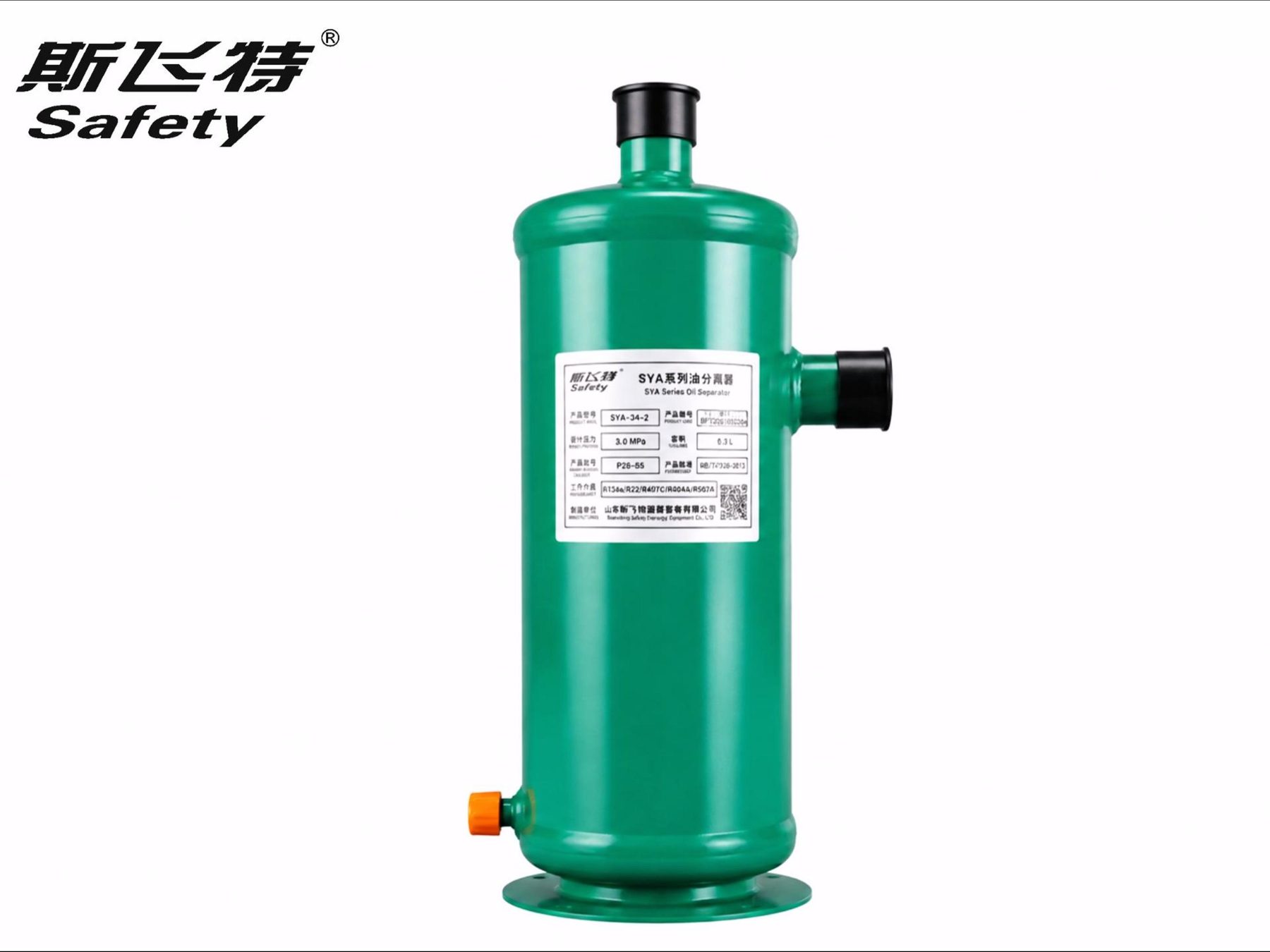

SYA Series Oil separator

Working media

R134aR22R407C

Series models: SYA-14 to SYA-60
Connection size: 3/8 to 2-1/8 in
Initial oil charge: 0.6 to 1.2 L

Submit conditions Selection data →

Miniature vessels

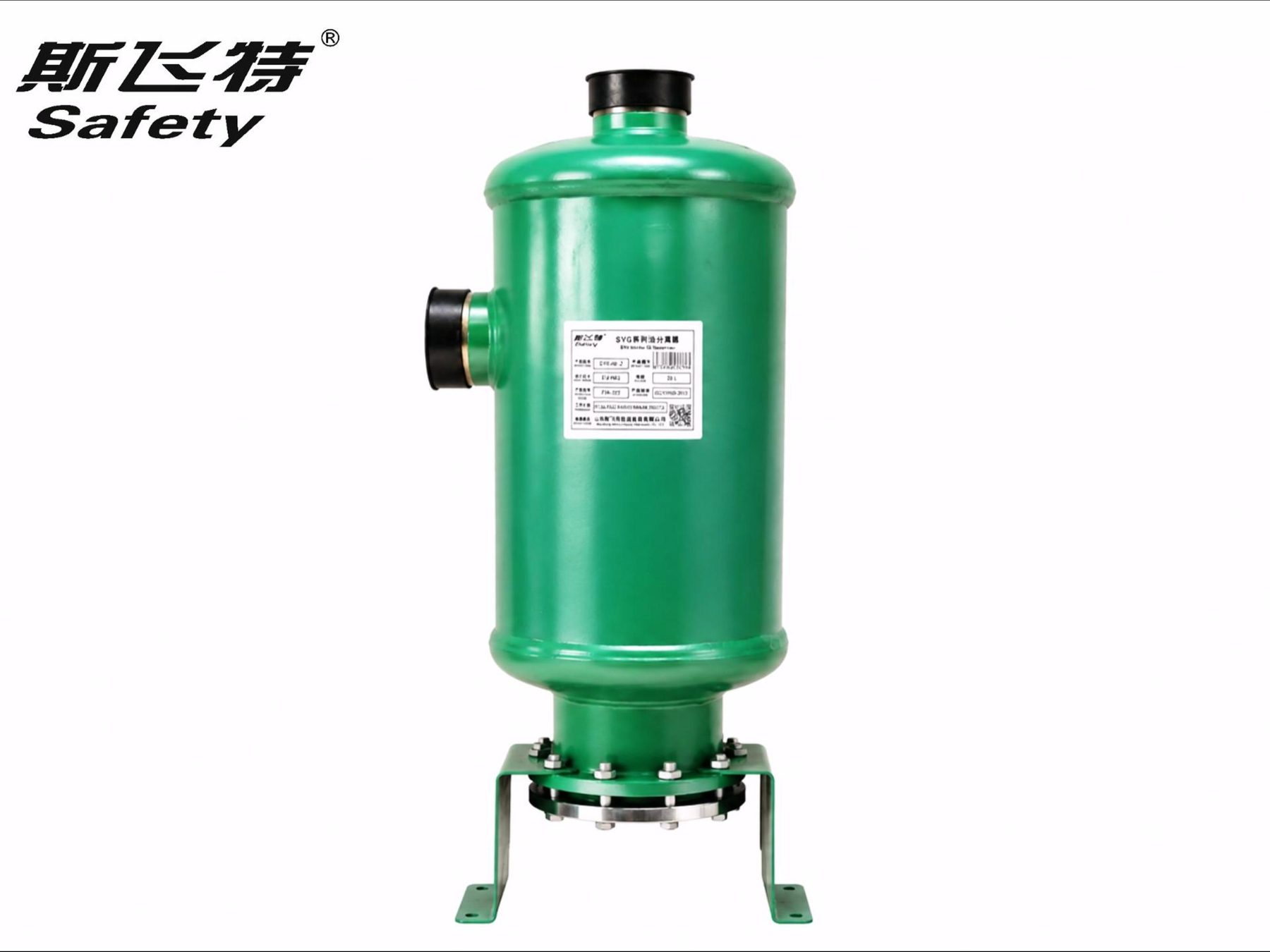

SYG Series Oil separator

Working media

R134aR22R407C

Series models: SYG-34 to SYG-89
Connection size: 1-1/8 to 3 in
Initial oil charge: 0.5 to 1.1 L

Submit conditions Selection data →

Miniature vessels

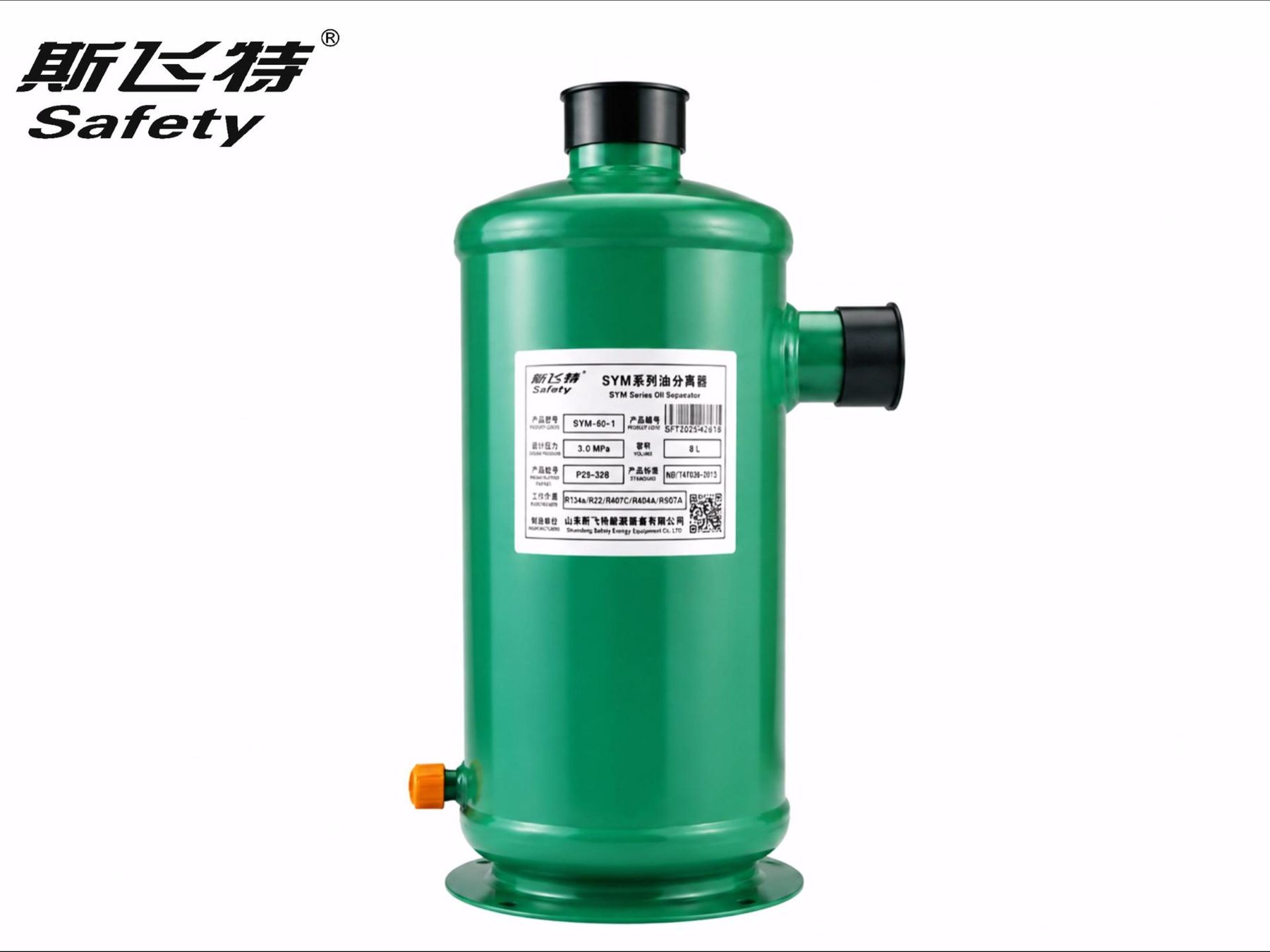

SYM Series Oil separator

Working media

R134aR22R407C

Series models: SYM-16 to SYM-60
Connection size: 1/2 to 2-1/8 in
Initial oil charge: 0.6 to 1.2 L

Submit conditions Selection data →

Miniature vessels

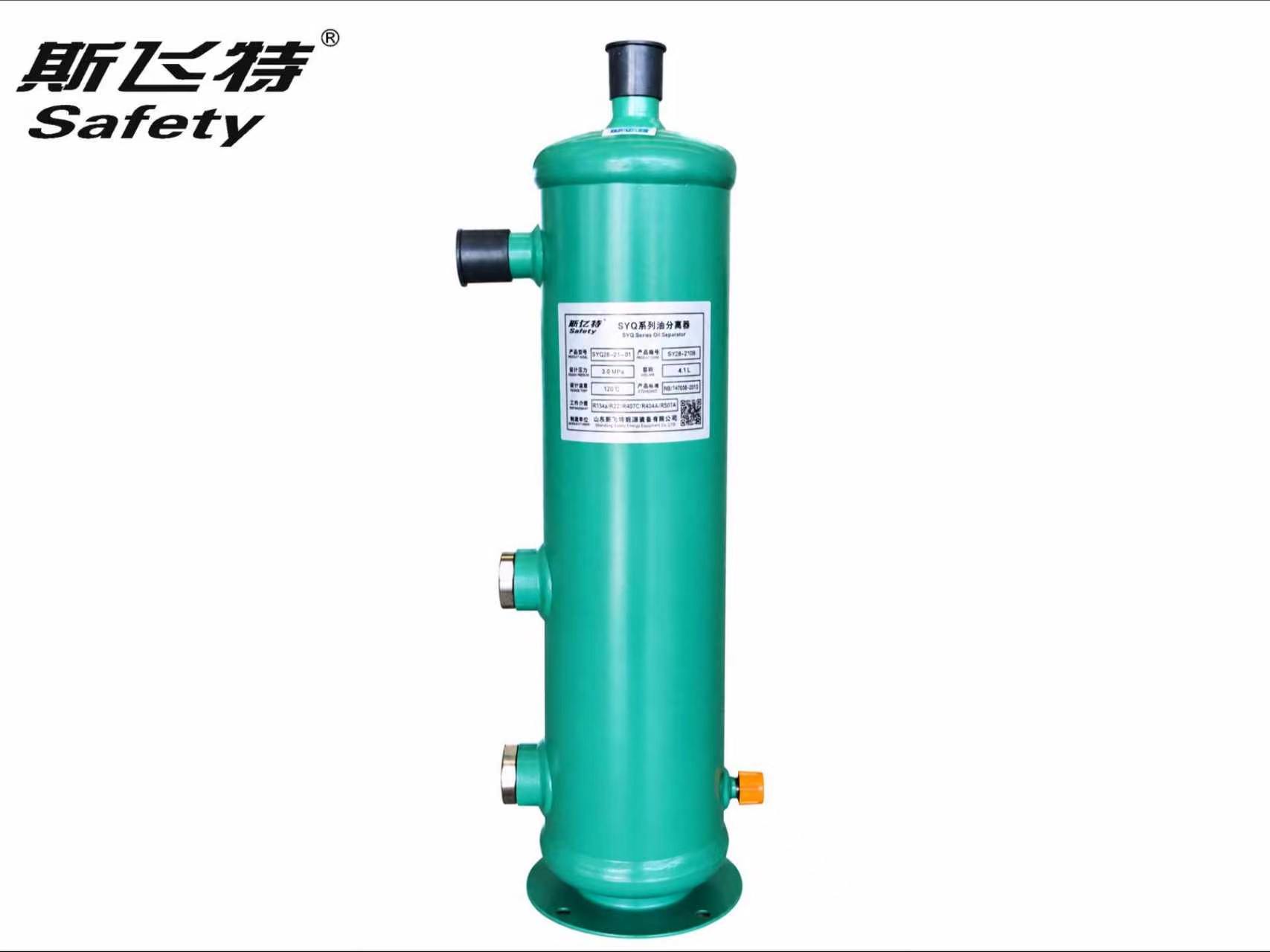

SYQ Series Oil-reservoir oil separator

Working media

R134aR22R407C

Series models: SYQ-16 to SYQ-60
Connection size: 1/2 to 2-1/8 in
Oil storage volume: 2.7 to 7.6 L

Submit conditions Selection data →

Miniature vessels

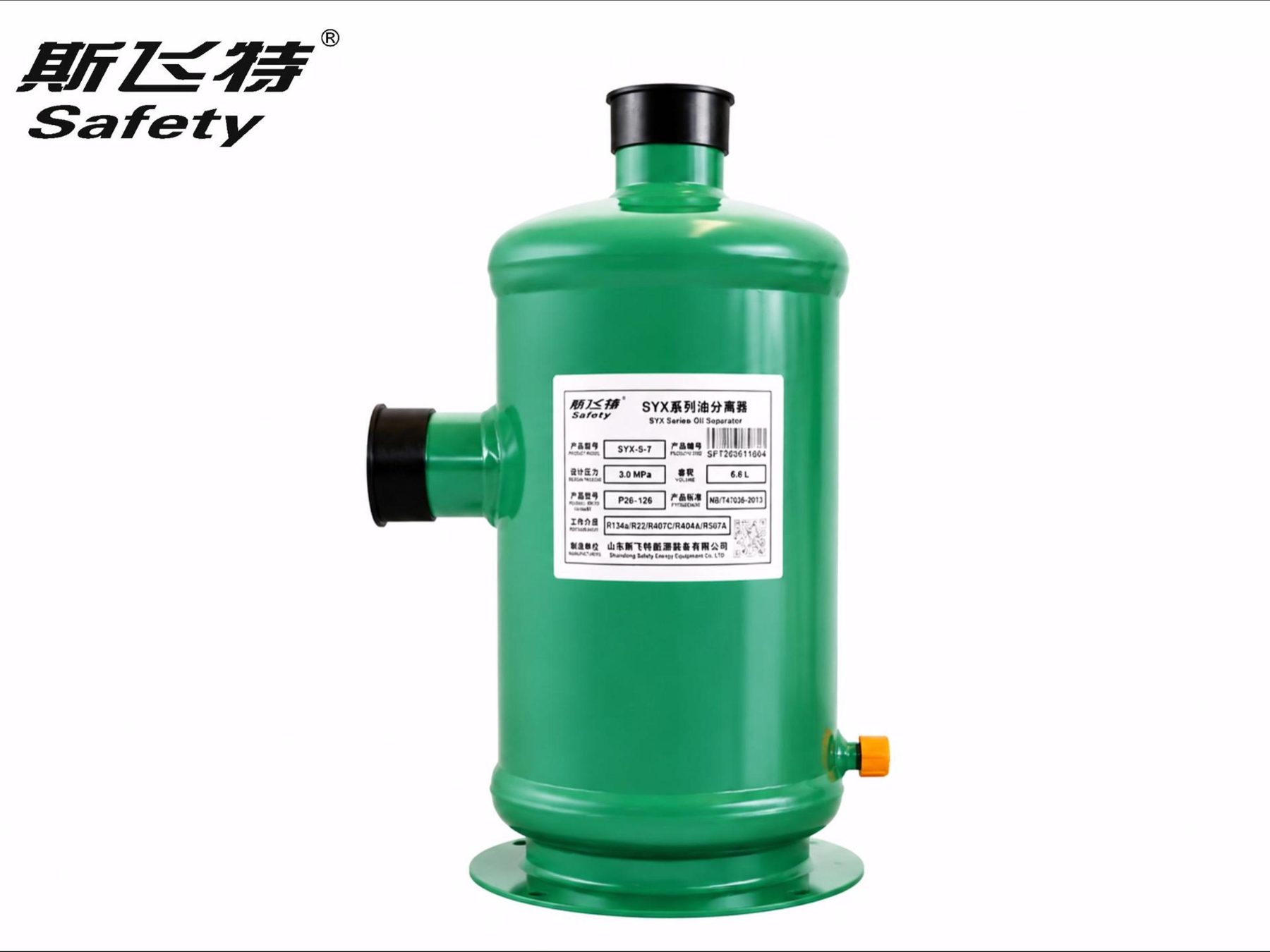

SYX Series Oil separator

Working media

R134aR22R407C

Series models: SYX-28 to SYX-60
Connection size: 7/8 to 2-1/8 in
Initial oil charge: 0.9 to 1.2 L

Submit conditions Selection data →

Miniature vessels

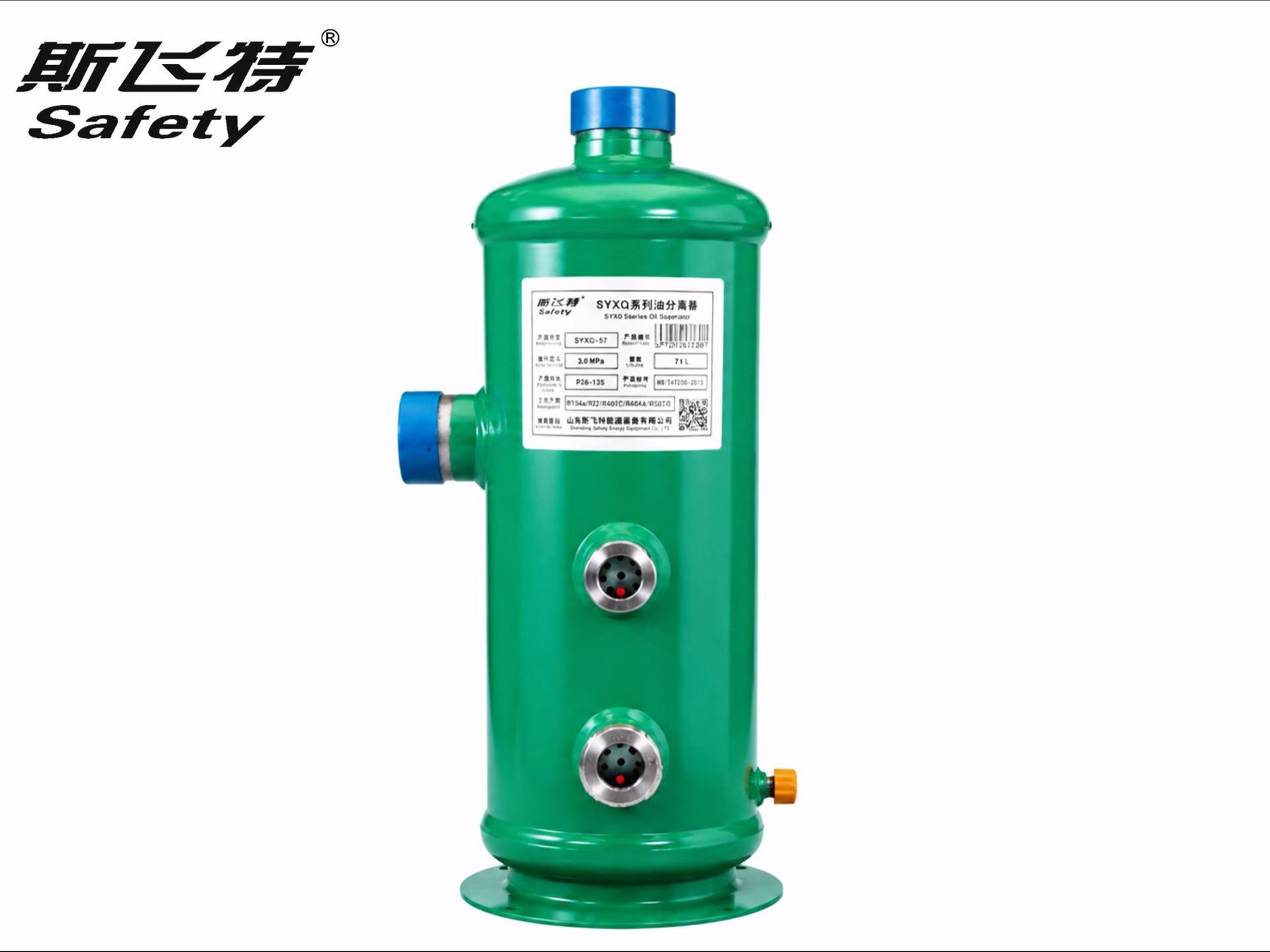

SYXQ Series Oil-reservoir oil separator

Working media

R134aR22R407C

Series models: SYXQ-28 to SYXQ-60
Connection size: 7/8 to 2-1/8 in
Oil storage volume: 3.1 to 5.7 L

Submit conditions Selection data →

Miniature vessels

SOL Series Vertical oil receiver

Working media

R134aR22R407C

Series models: SOL-5 to SOL-25
Installation: Vertical
Inlet / outlet: 3/8 in SAE

Submit conditions Selection data →

Miniature vessels

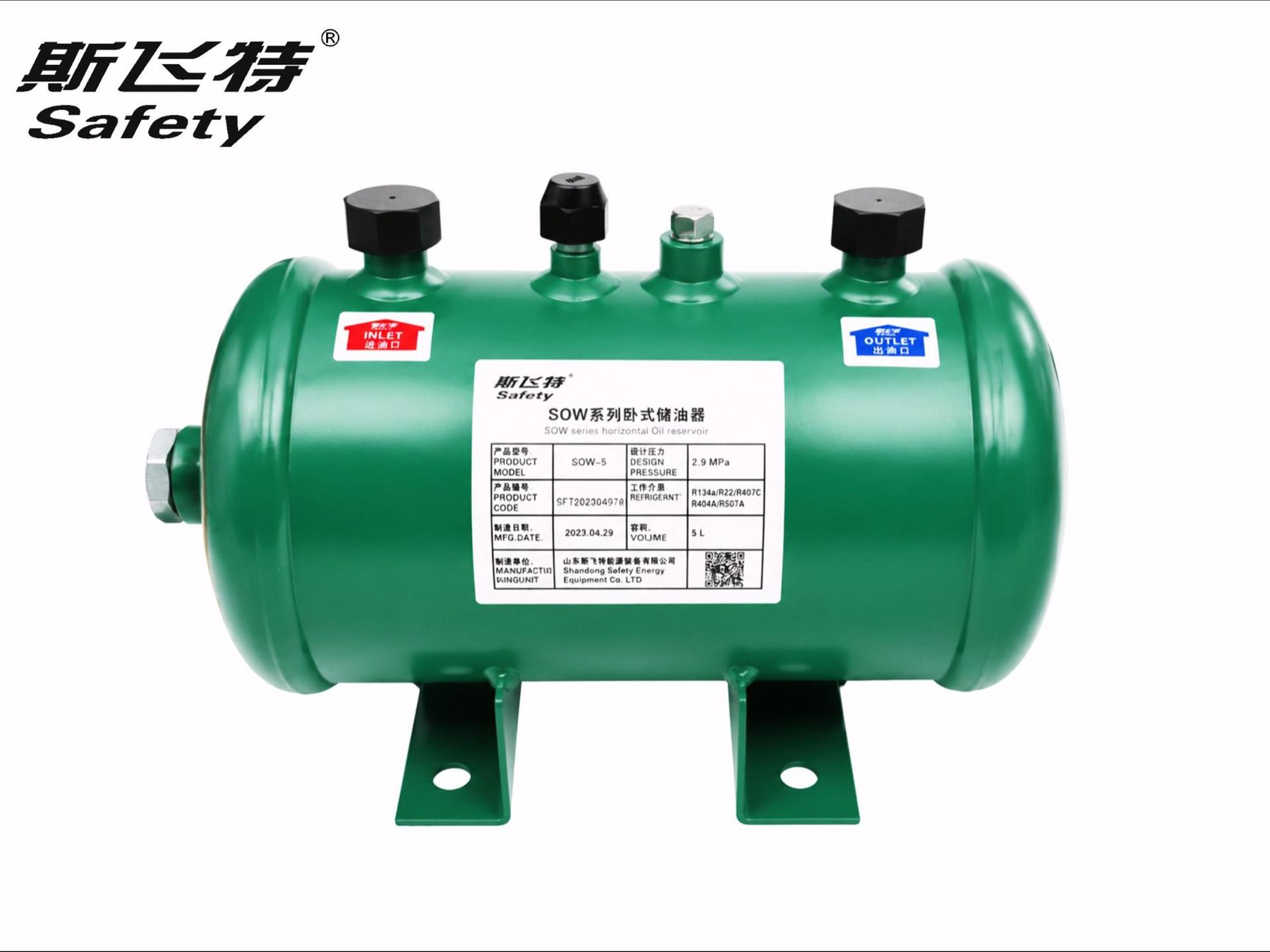

SOW Series Horizontal oil receiver

Working media

R134aR22R407C

Series models: SOW-5 to SOW-25
Installation: Horizontal
Inlet / outlet: 3/8 in SAE

Submit conditions Selection data →

Miniature vessels

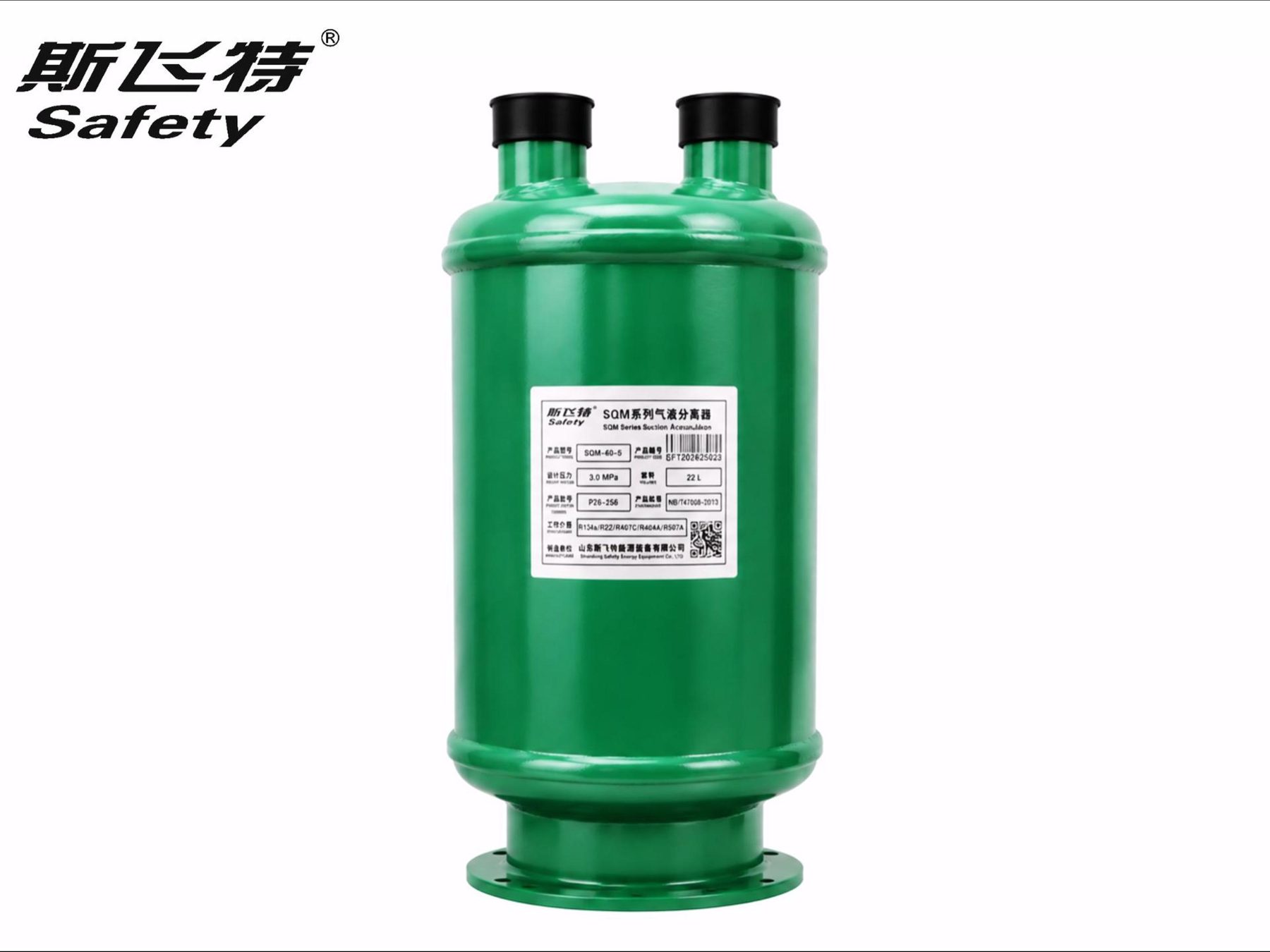

SQM Series Suction accumulator

Working media

R134aR22R407C

Series models: SQM-16 to SQM-76
Connection size: 1/2 to 2-5/8 in
Tube outside diameter: 16 to 76 mm

Submit conditions Selection data →

Miniature vessels

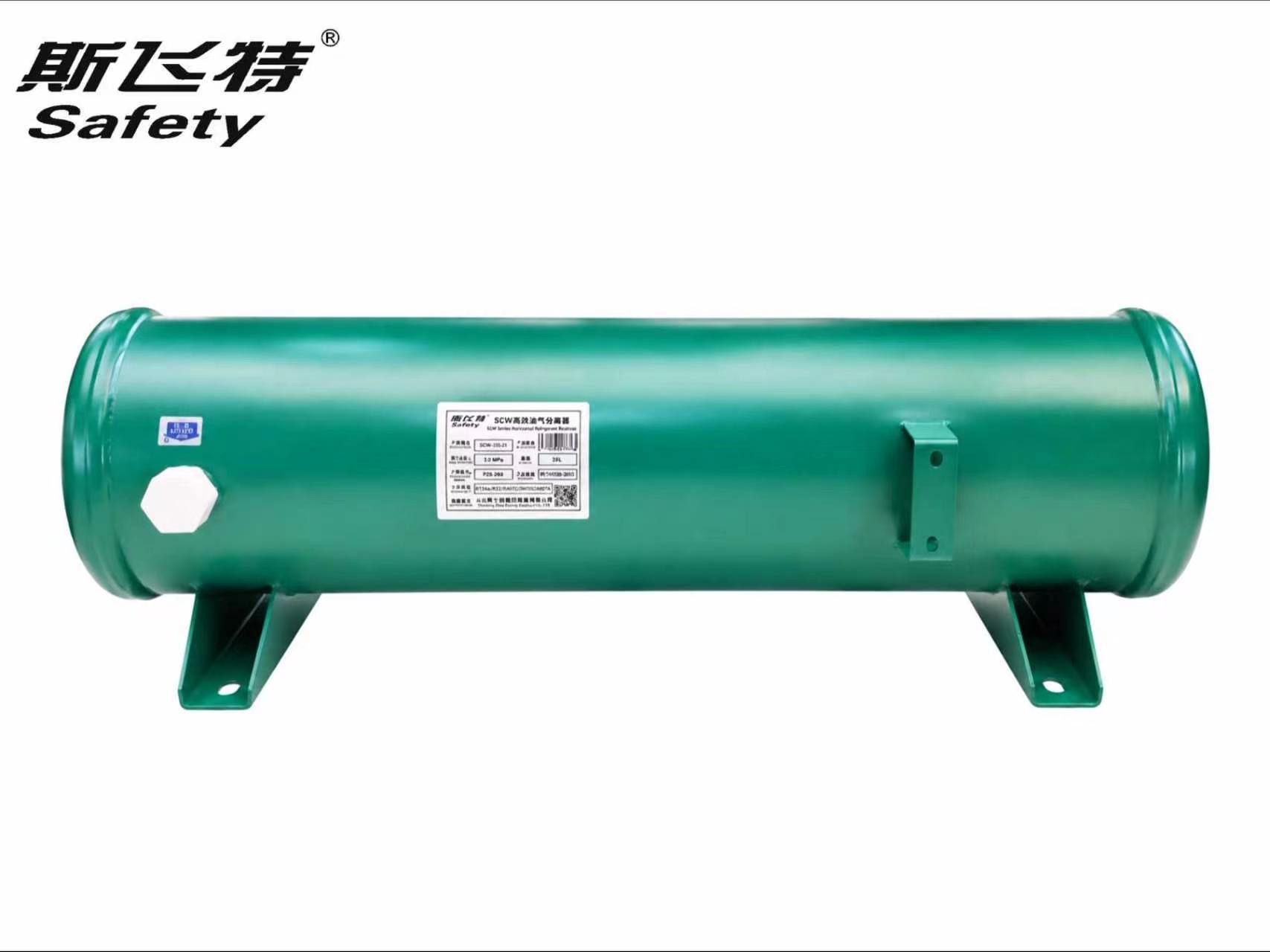

SCW Series Horizontal refrigerant receiver

Working media

R134aR22R407C

Series models: SCW-15 to SCW-29
Installation: Horizontal
Inlet / outlet: 1/2 to 7/8 in ODF

Submit conditions Selection data →

Miniature vessels

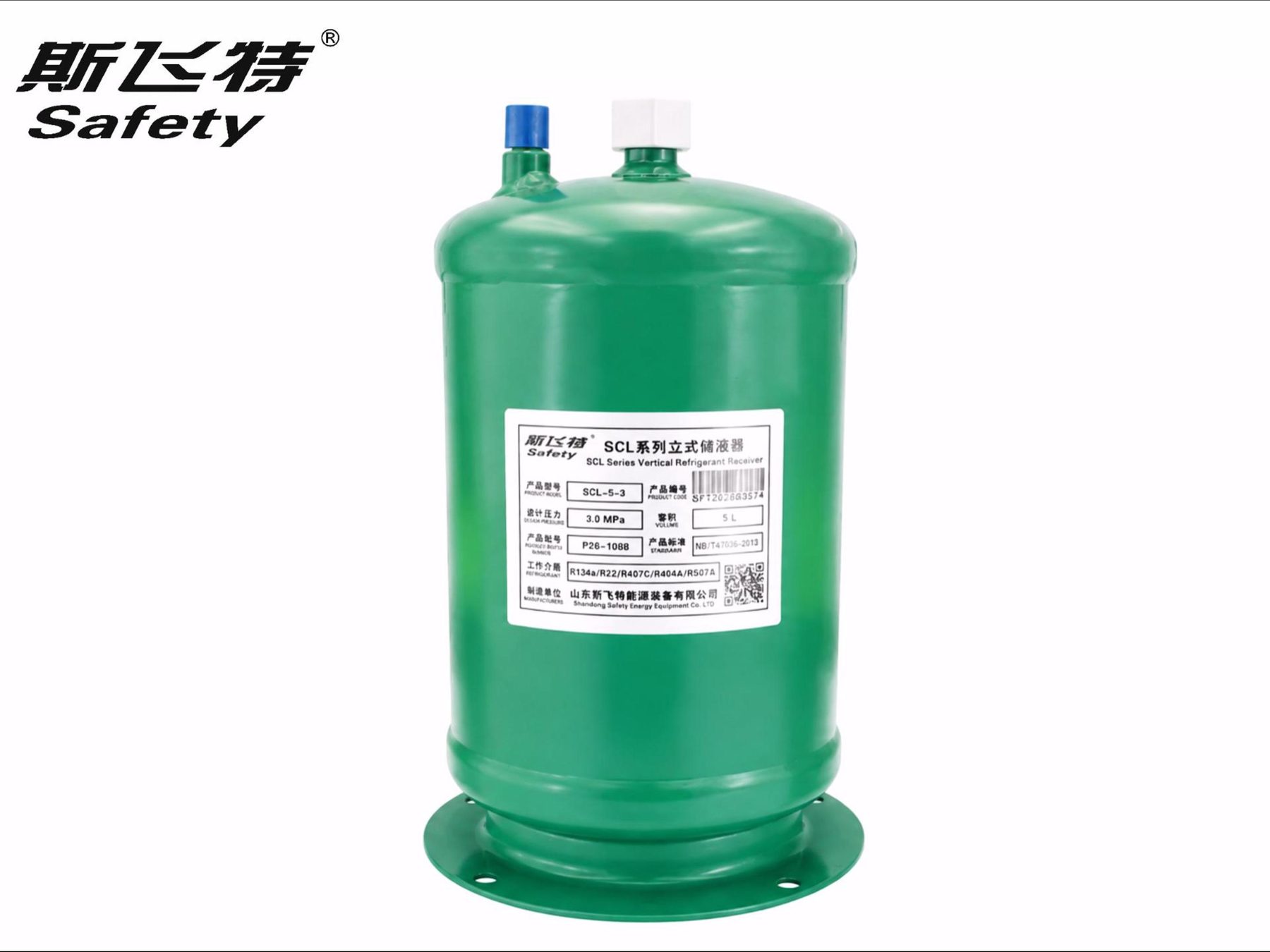

SCL Series Vertical refrigerant receiver

Working media

R134aR22R407C

Series models: SCL-5 to SCL-20
Installation: Vertical
Inlet / outlet: 1/2 to 7/8 in ODF

Submit conditions Selection data →

Miniature vessels

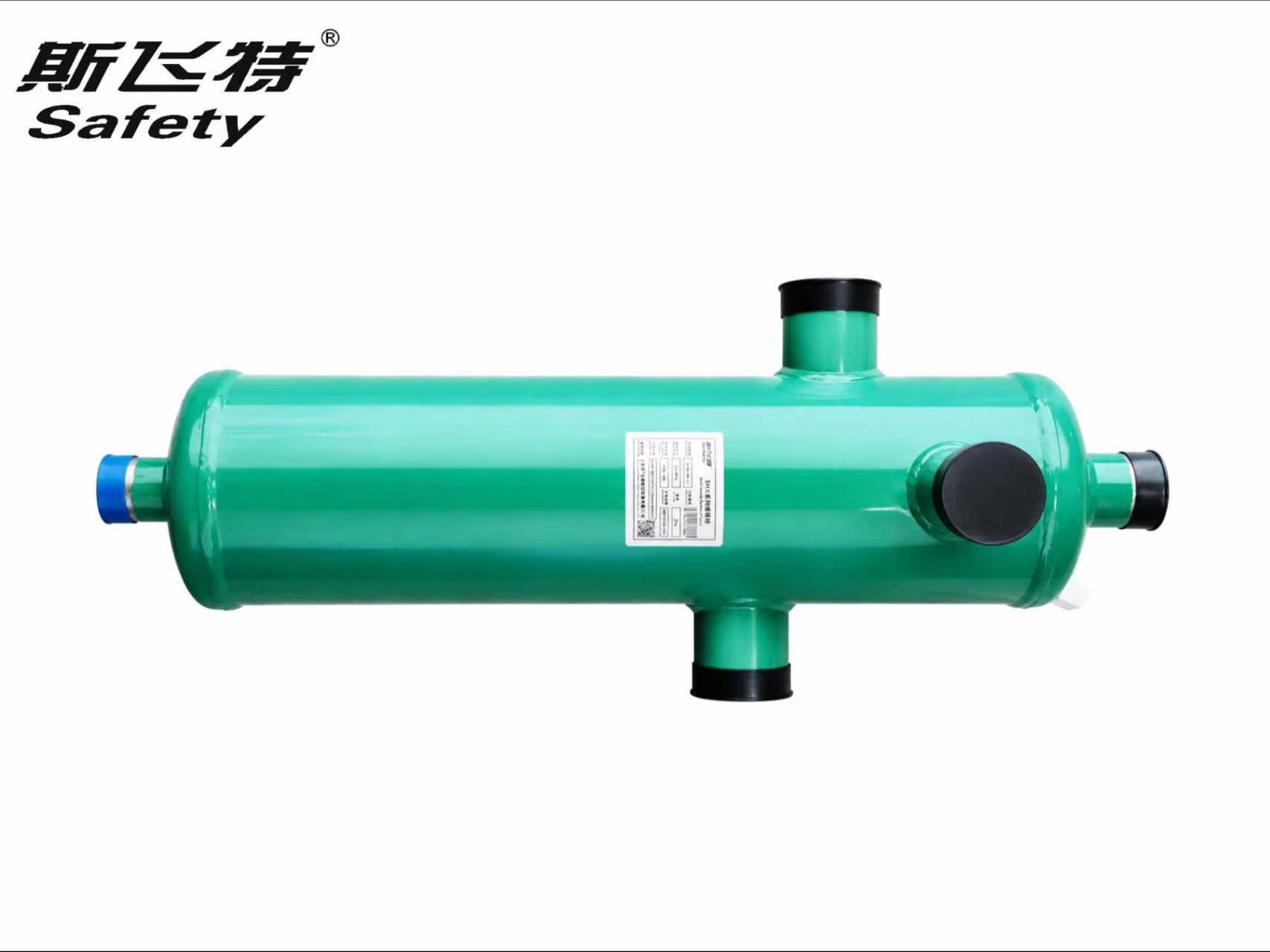

SHX Series Siphon column

Working media

R134aR22R407C

Series models: SHX-57, SHX-76, SHX-89
Evaporation temperature: -10 to -40 °C
Maximum load capacity: 23.4 to 94.2 kW

Submit conditions Selection data →

Miniature vessels

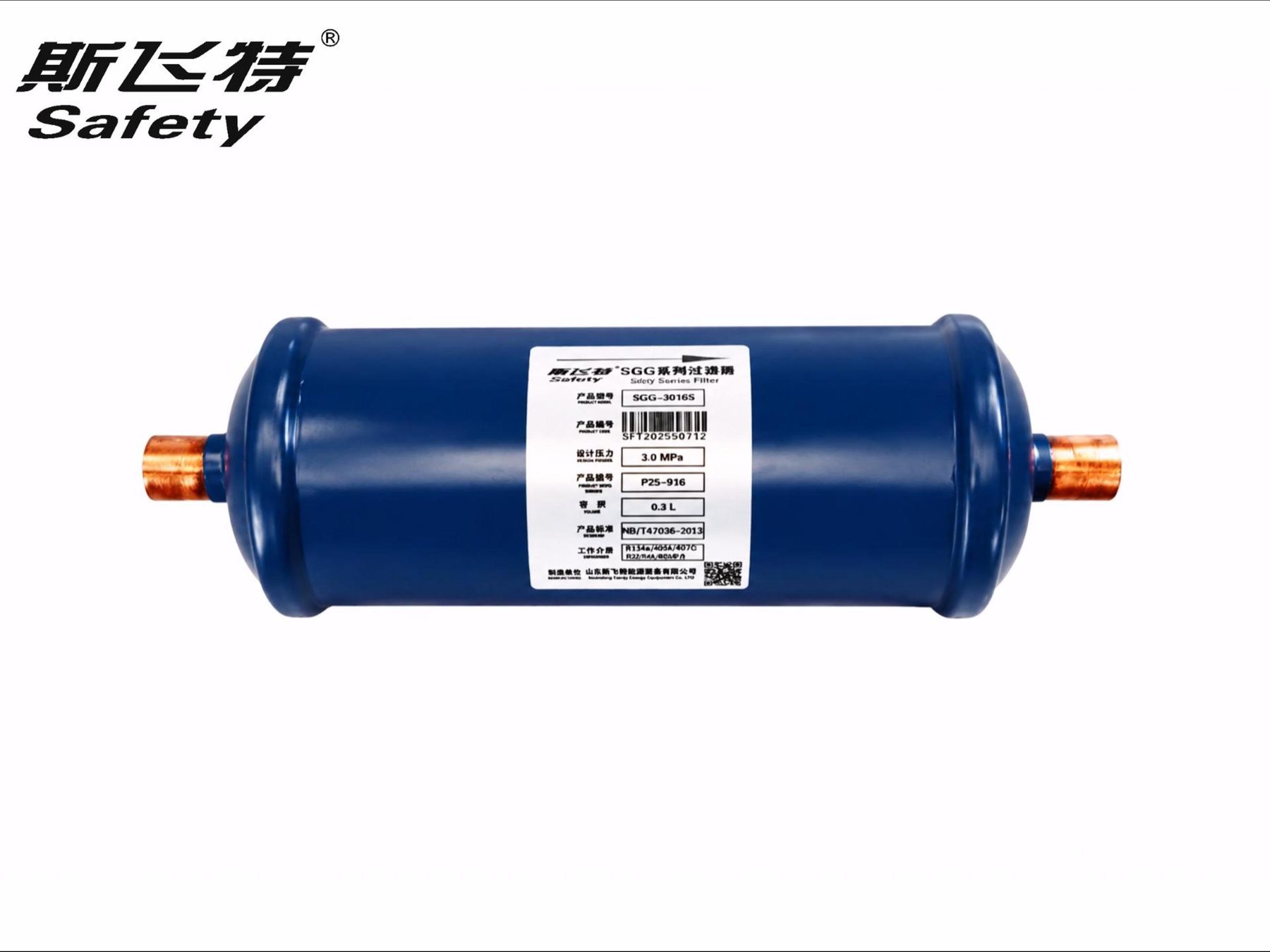

SGG Series Filter drier

Working media

CFCHCFC and HFC refrigerantsincluding R410A

Series models: SGG-0810 to SGG-3019
Connection size: 3/8 to 7/8 in
Volume: 0.2 to 0.7 L

Submit conditions Selection data →

Miniature vessels

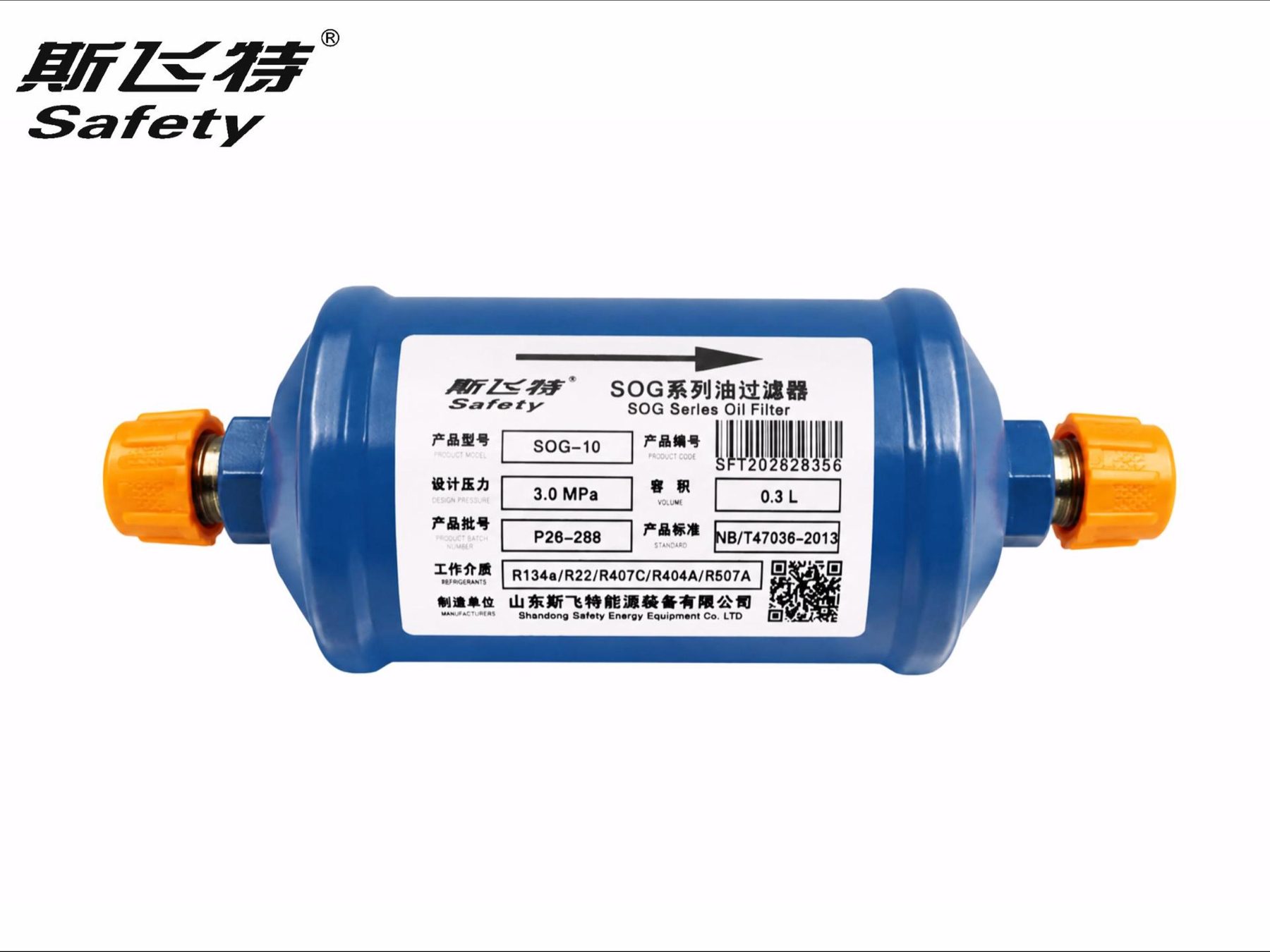

SOG Series Oil filter

Working media

All common refrigerants and refrigeration oils

Series models: SOG-10S to SOG-16
Connection size: 3/8 to 5/8 in
Filter accuracy: 50 μm

Submit conditions Selection data →

Miniature vessels

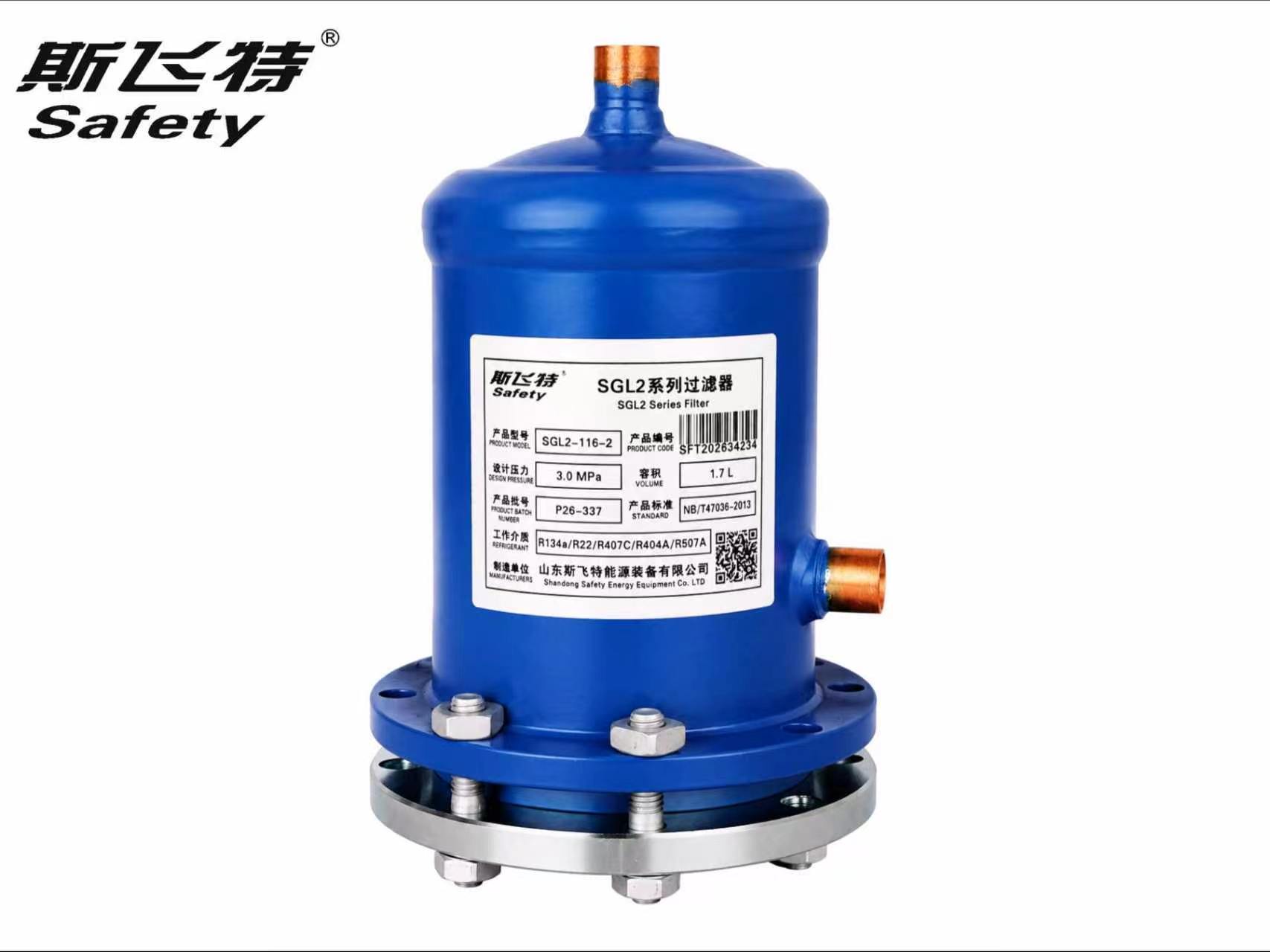

SGL2 Series Chemical-engineering filter

Working media

R134aR22R407C

Series models: SGL2-116 to SGL2-335
Filter cores: 1 to 3 cartridges
Connection size: 5/8 to 2-1/8 in

Submit conditions Selection data →

Miniature vessels

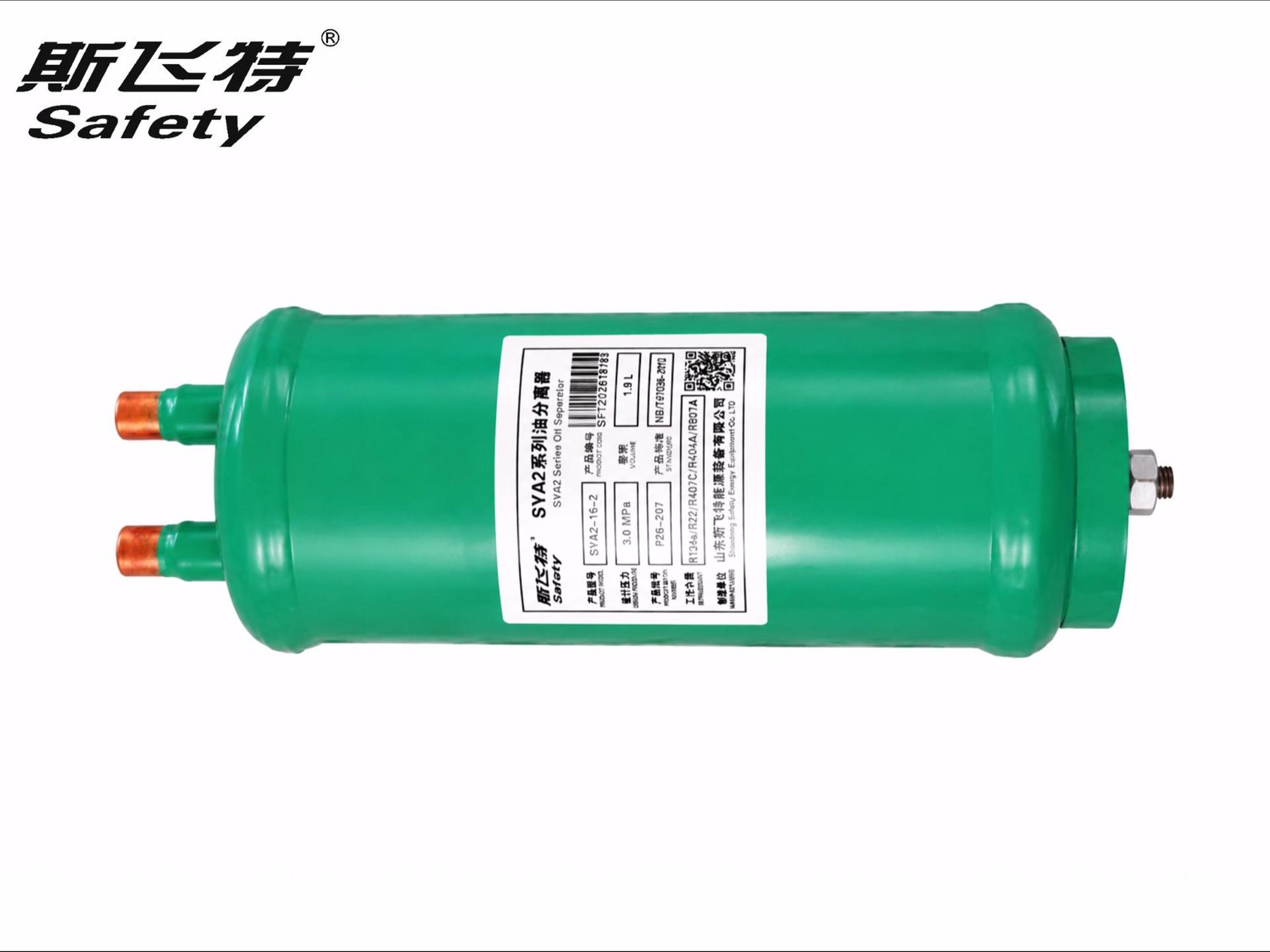

SYA2 Series Chemical-engineering oil separator

Working media

R134aR22R407C

Series models: SYA2-10 to SYA2-42
Connection size: 3/8 to 1-5/8 in
Initial oil charge: 0.5 to 1.5 L

Submit conditions Selection data →

Miniature vessels

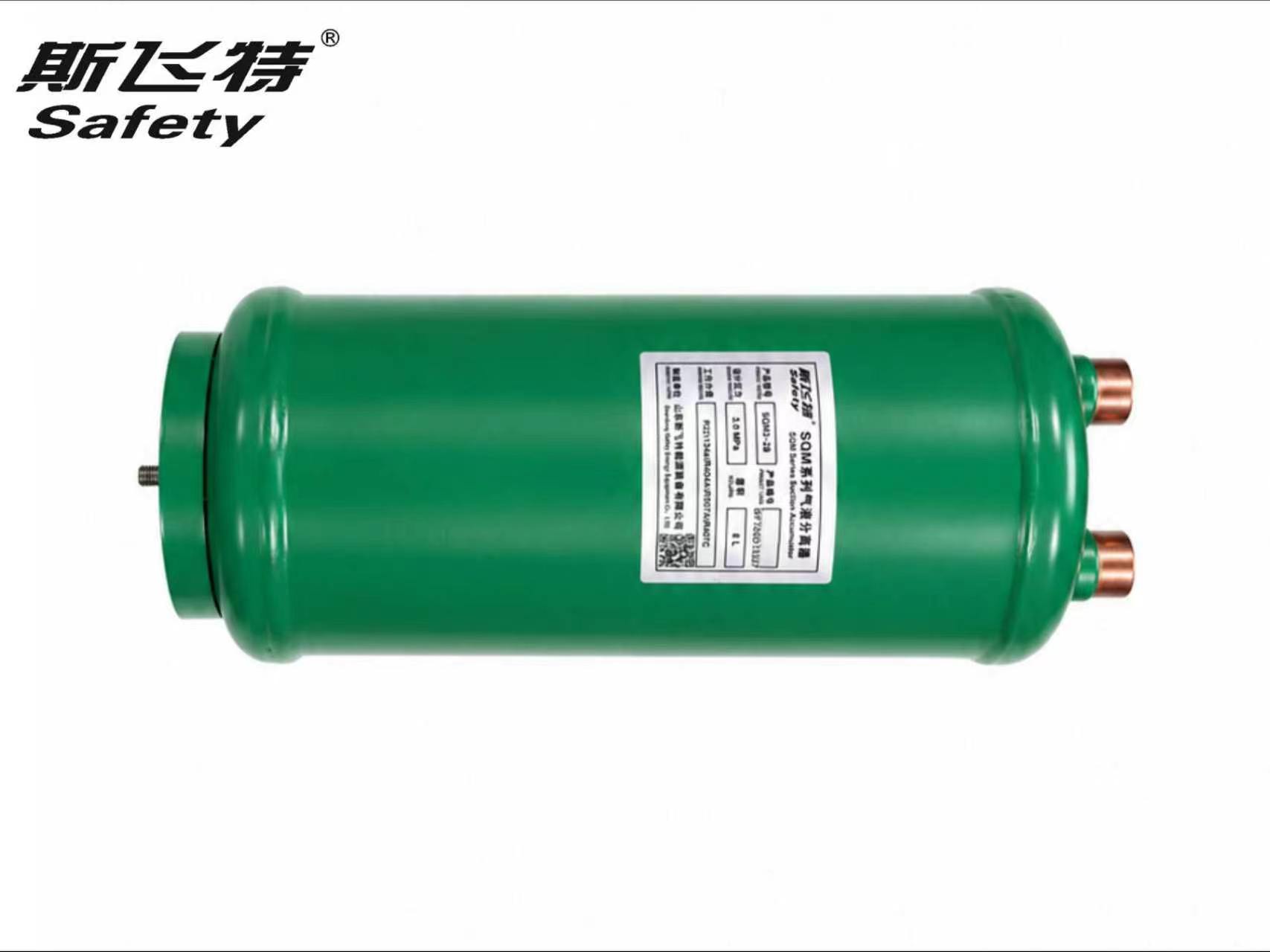

SQM2 Series Chemical-engineering suction accumulator

Working media

R134aR22R407C

Series models: SQM2-12 to SQM2-42
Connection size: 1/2 to 1-5/8 in
Volume: 1.6 to 9 L

Submit conditions Selection data →

Miniature vessels

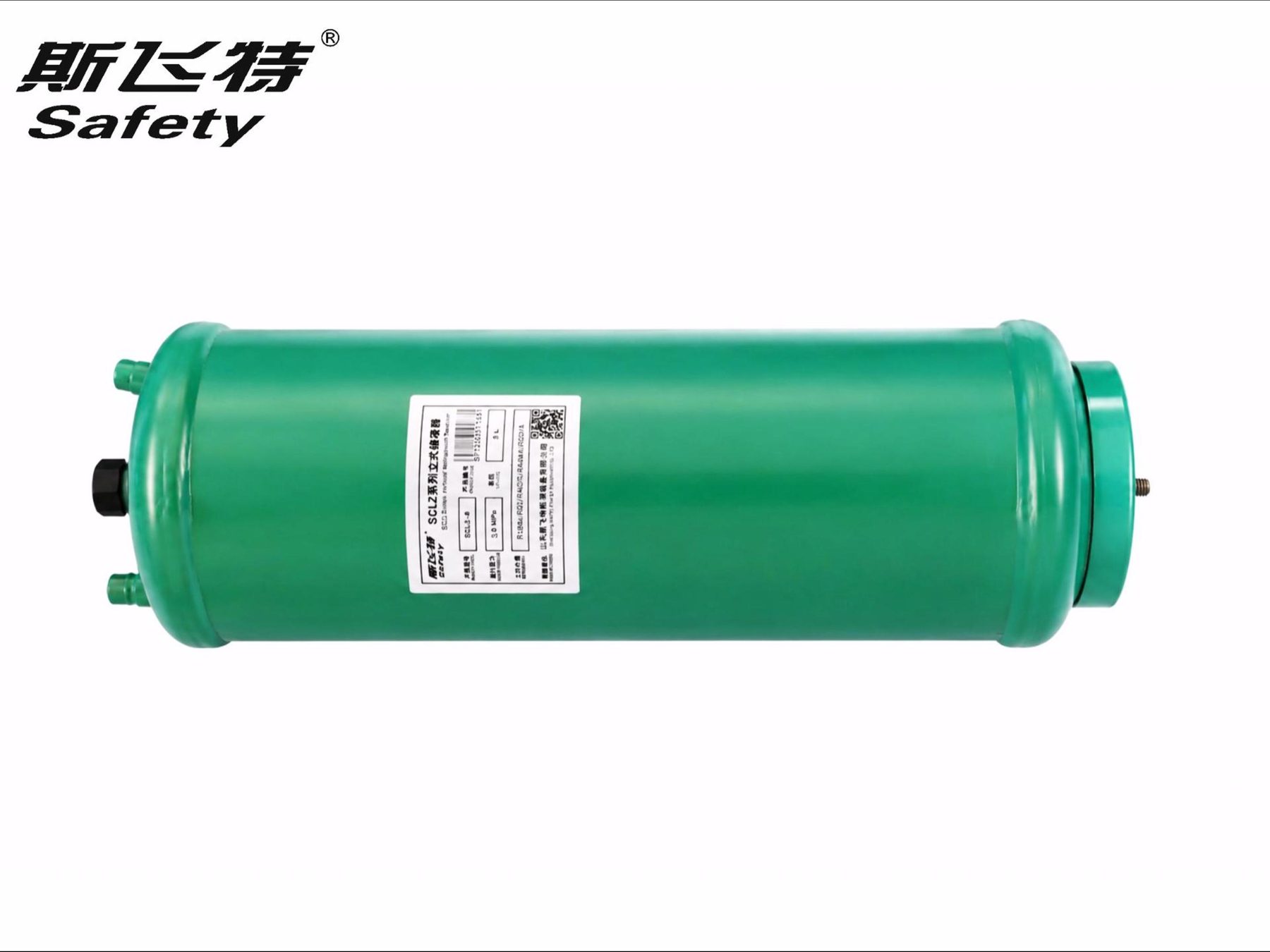

SCL2 Series Chemical-engineering vertical receiver

Working media

R134aR22R407C

Series models: SCL2-5 to SCL2-20
Installation: Vertical
Inlet / outlet: 1/2 to 7/8 in

Submit conditions Selection data →

Miniature vessels

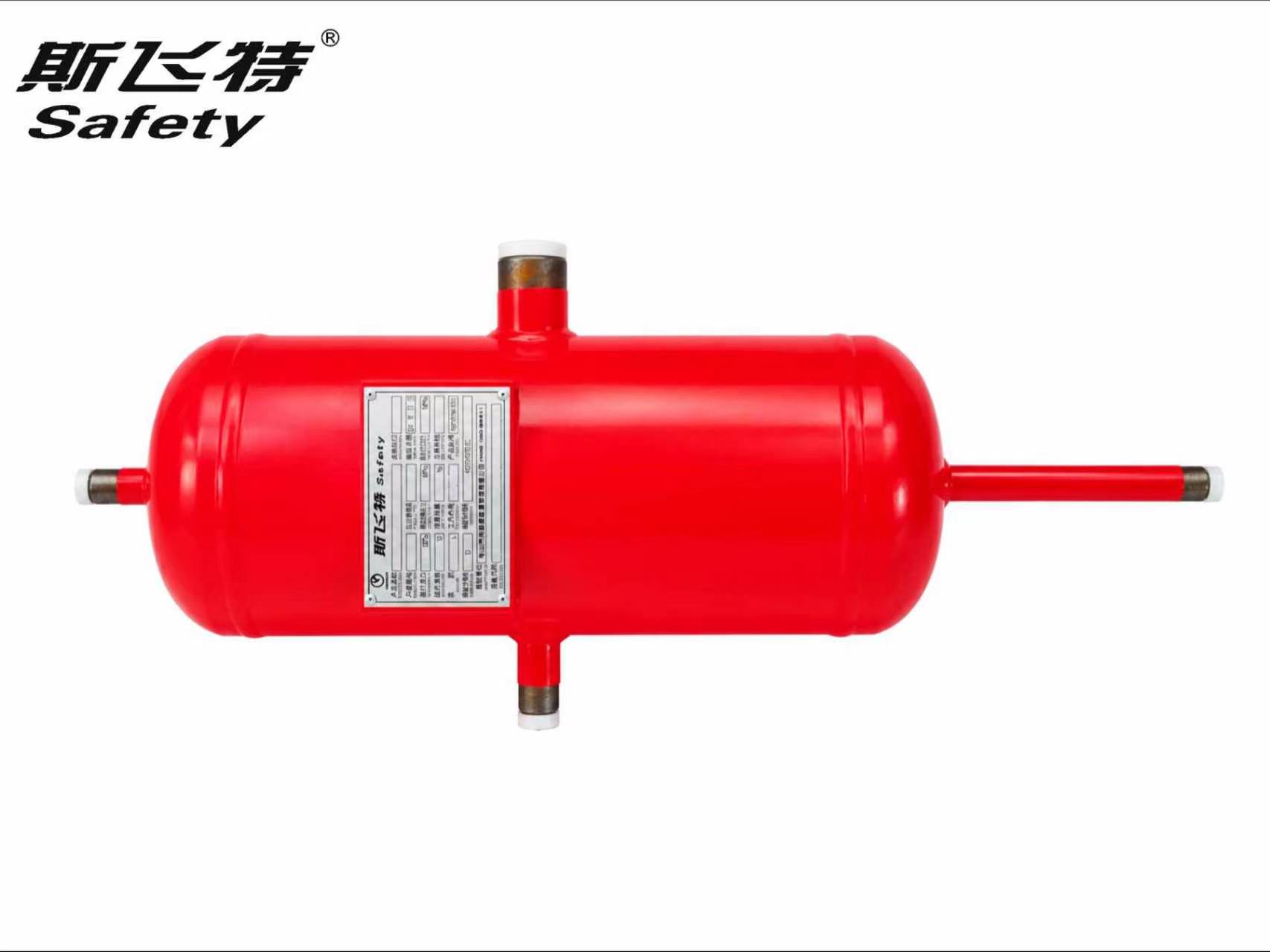

CXJY-I8L Series Licensed pressure vessel

Working media

Project specific

Data status: To be supplemented

Submit conditions Selection data →

Licensed pressure vessels

S-CYW Series Horizontal refrigerant receiver

Working media

R134aR22R407C

Series models: S-CYW50 to S-CYW1000
Nominal volume: 50 to 1000 L
Vessel diameter: 273 to 716 mm

Submit conditions Selection data →

Licensed pressure vessels

S-CYL Series Vertical refrigerant receiver

Working media

R134aR22R407C

Series models: S-CYL50 to S-CYL800
Nominal volume: 50 to 800 L
Vessel diameter: 273 to 820 mm

Submit conditions Selection data →

Licensed pressure vessels

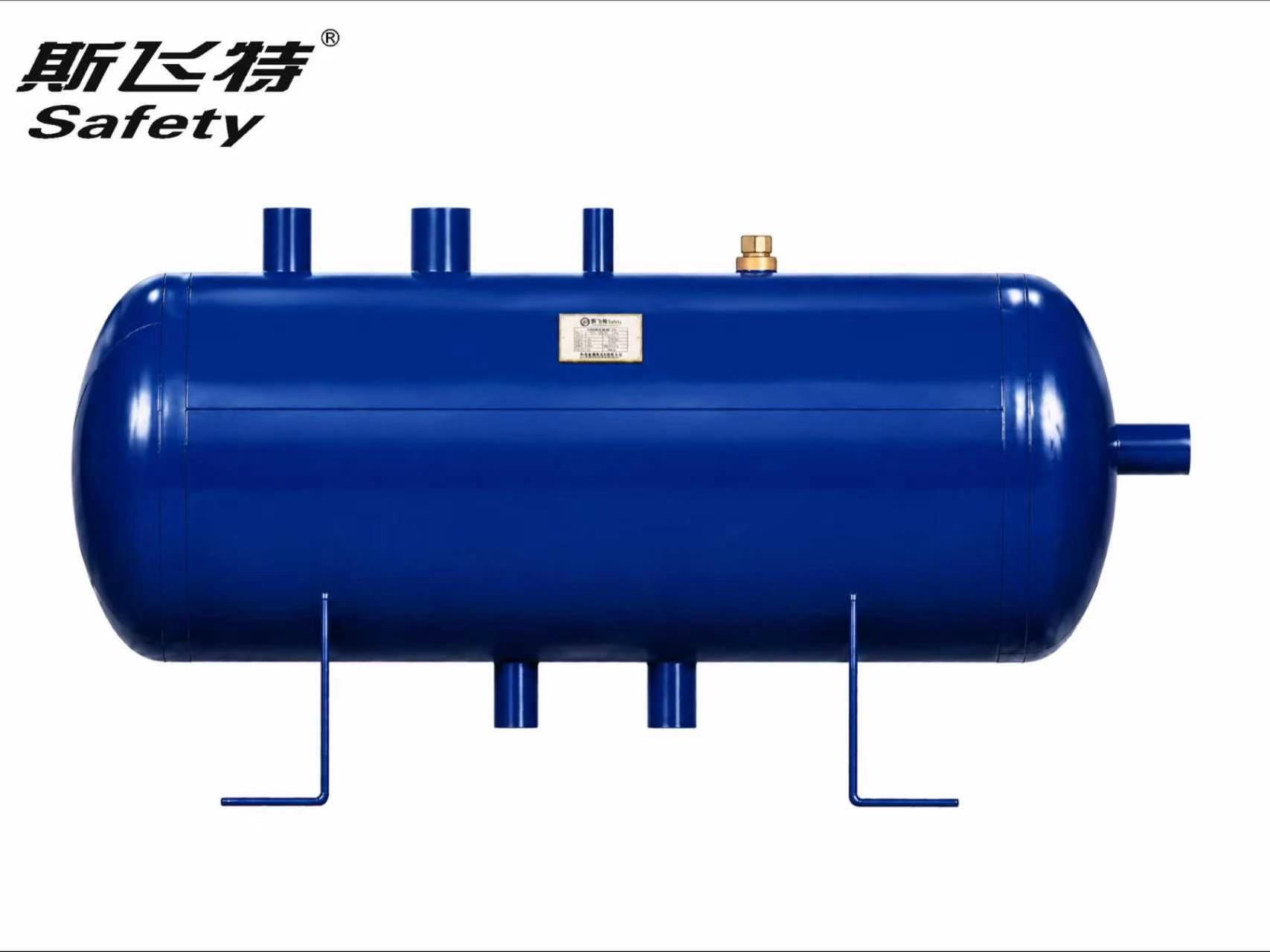

CXHX Series Siphon tank

Working media

R134aR22R407C

Series models: CXHX-100 to CXHX-500
Nominal volume: 100 to 500 L
Vessel diameter: 377 to 616 mm

Submit conditions Selection data →

Licensed pressure vessels

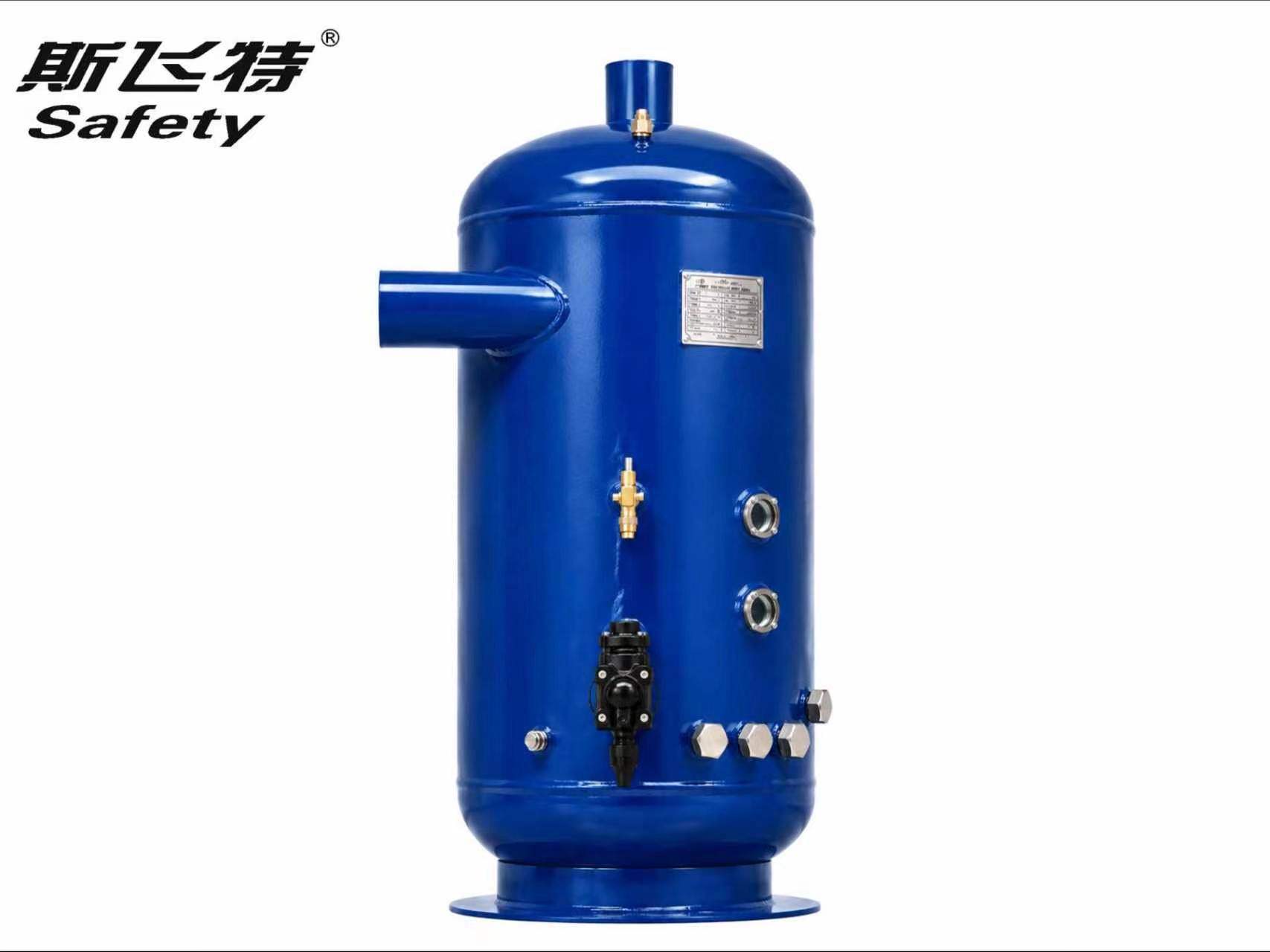

CXYF Series External oil separator for screw compressor

Working media

R134aR22R407C

Series models: CXYF-29 to CXYF-2200
Oil separation efficiency: Up to 99.8%
Recommended compressor displacement: 110 to 6500 m³/h depending on refrigerant and temperature range

Submit conditions Selection data →

Licensed pressure vessels

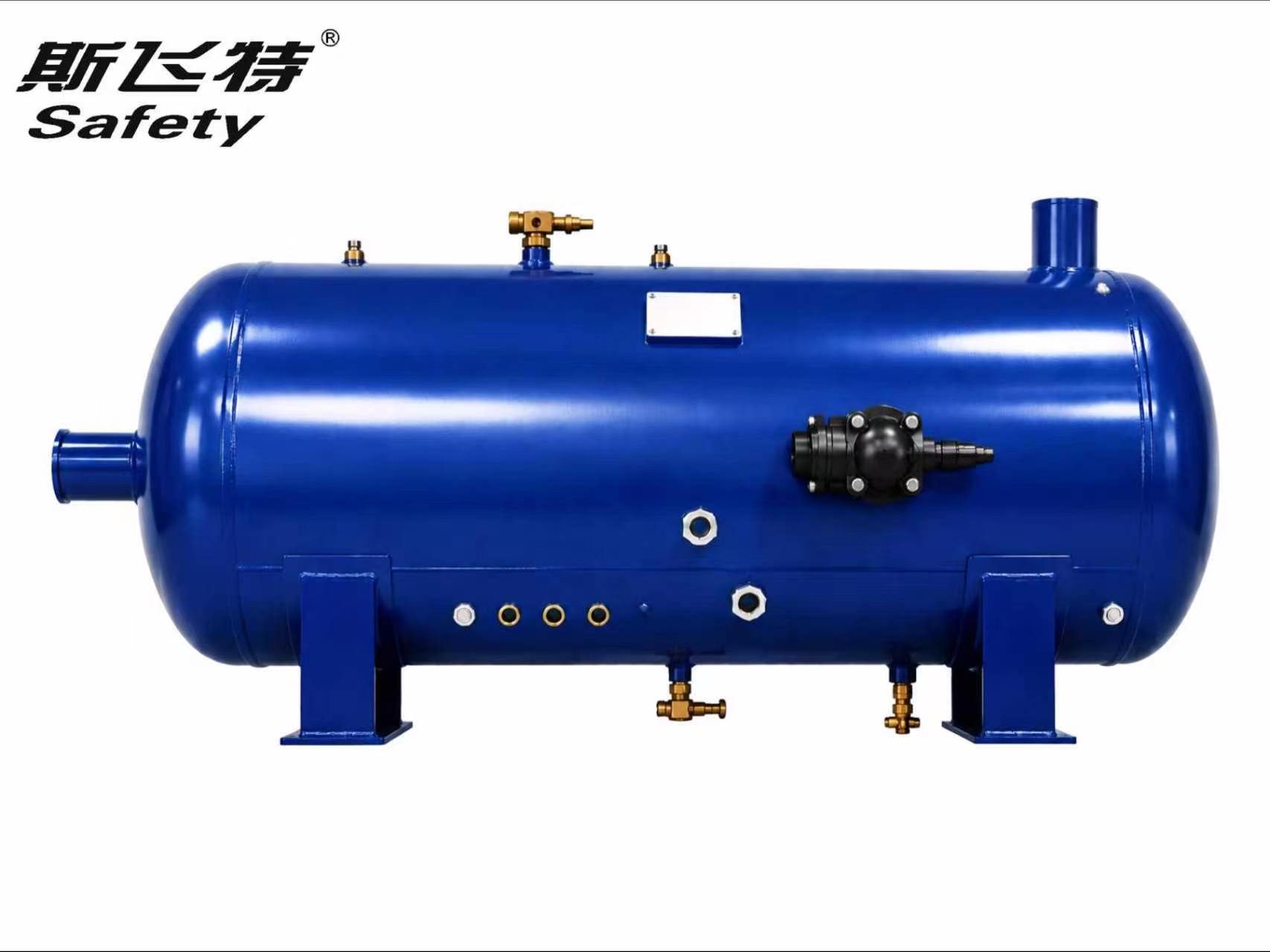

CXWY Series Horizontal oil separator for screw compressor

Working media

R134aR22R407C

Series models: CXWY-50 to CXWY-2200
Oil separation efficiency: Up to 99.8%
Total volume: 50 to 2200 L

Submit conditions Selection data →

Licensed pressure vessels

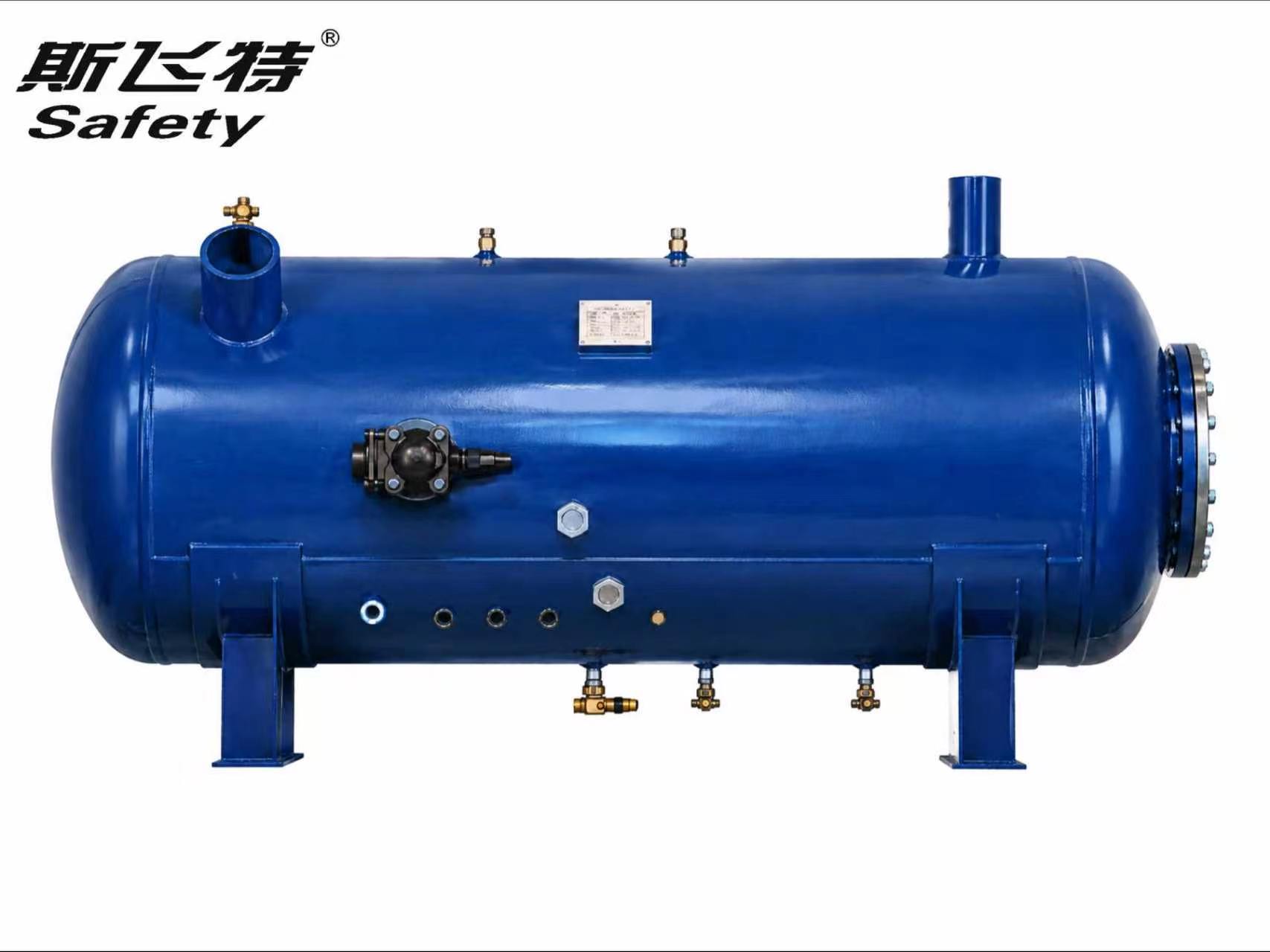

CWYG Series High-efficiency oil separator

Working media

R134aR22R407C

Series models: CWYG-530 to CWYG-4700
Oil separation accuracy: 5 to 20 ppm
Total volume: 530 to 4700 L

Submit conditions Selection data →

Licensed pressure vessels

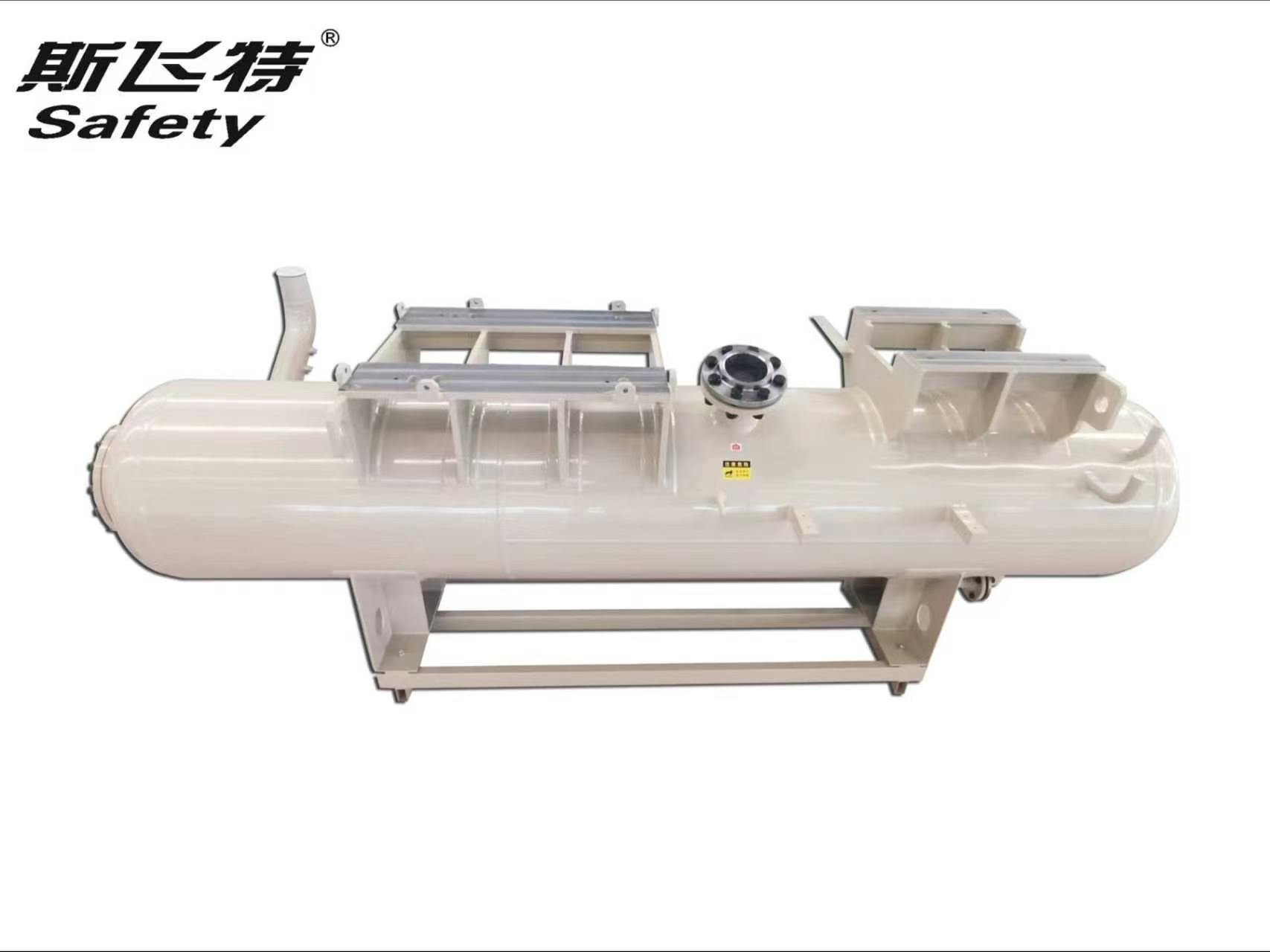

Open-compressor oil separator

Working media

R134aR22R407C

Series models: Configured to project duty
Design pressure: Selected to system design pressure
Oil separation requirement: Configured to compressor duty

Submit conditions Selection data →

Licensed pressure vessels

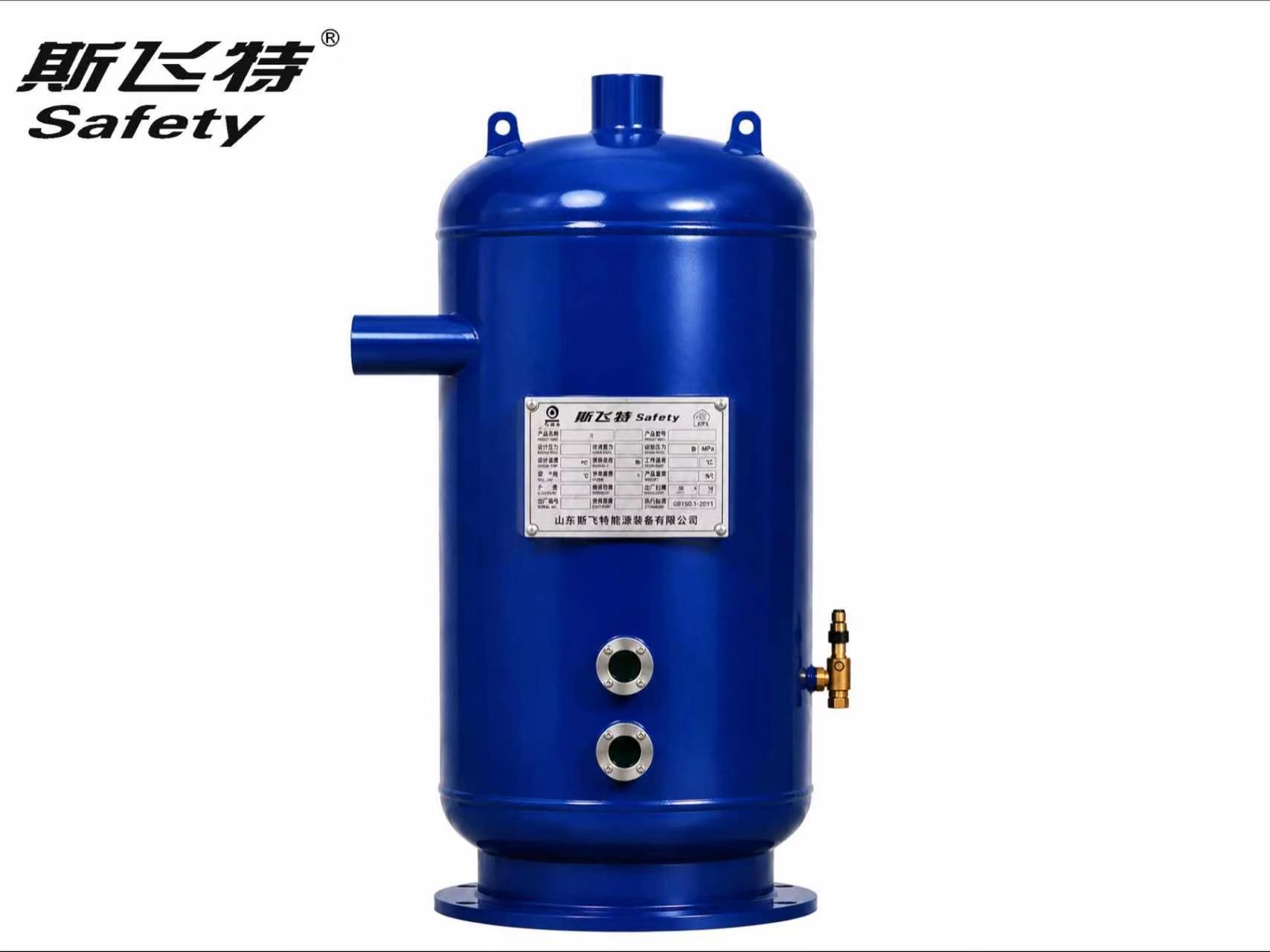

S-CC Series Centrifugal demisting oil separator with oil receiver

Working media

R134aR22R407C

Series models: CC45 to CC219
Oil separation efficiency: Up to 99.8%
Oil storage volume: 8 to 212 L

Submit conditions Selection data →

Licensed pressure vessels

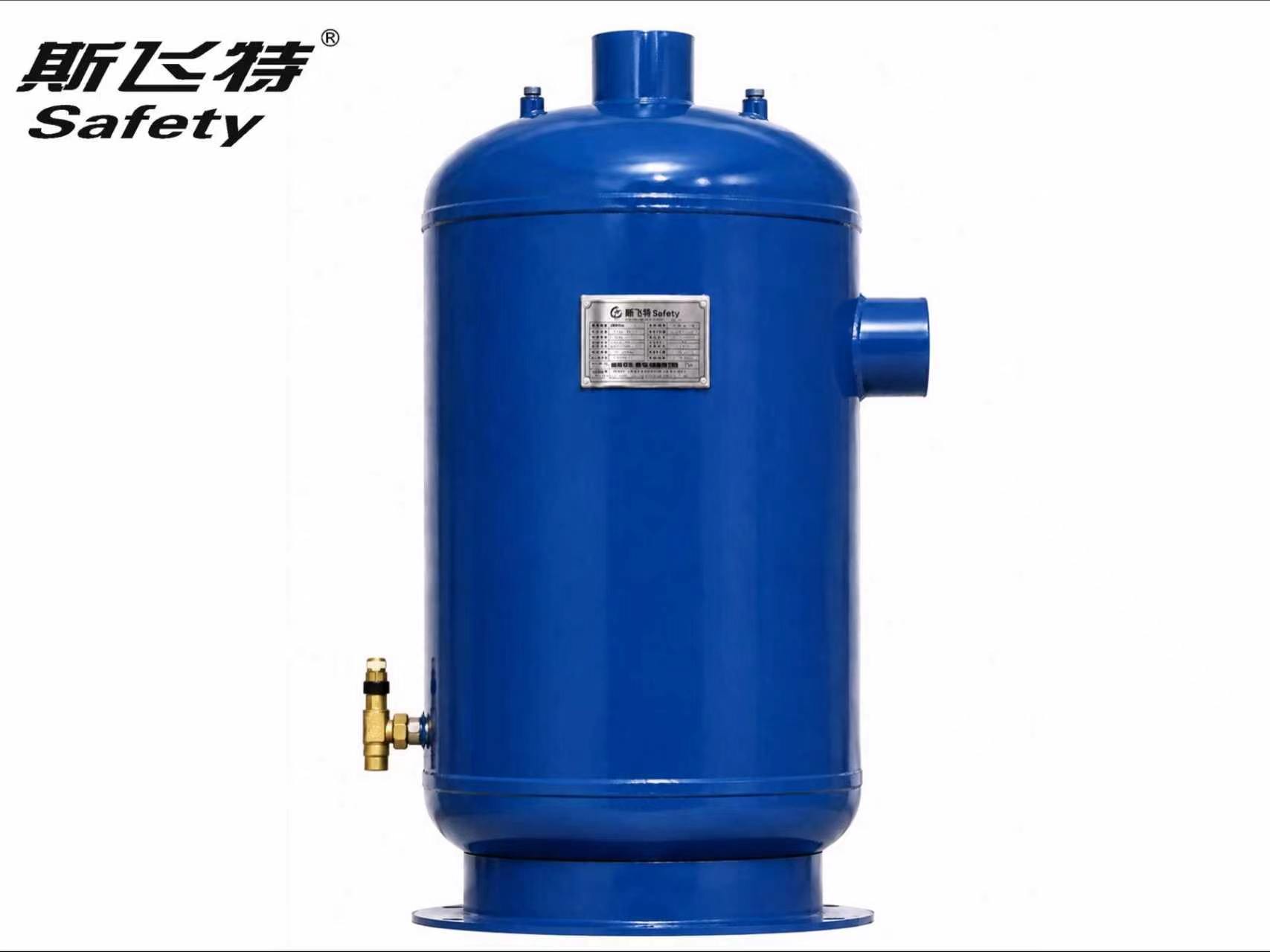

S-CE Series Secondary oil separator

Working media

R134aR22R407C

Series models: S-CE45 to S-CE219
Oil separation efficiency: Up to 99.8%
Total volume: 16 to 602 L

Submit conditions Selection data →

Licensed pressure vessels

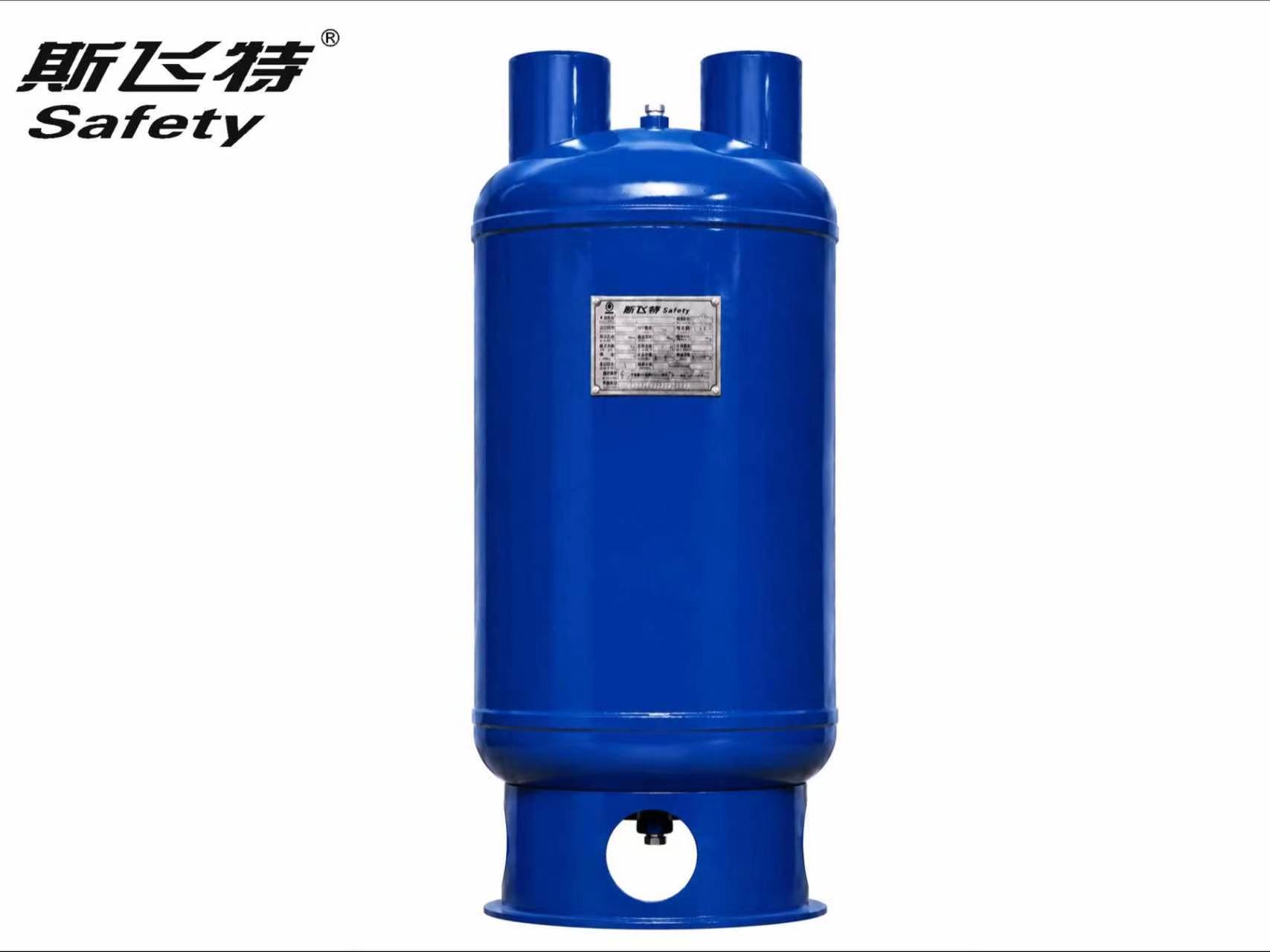

CXQF Series Suction accumulator

Working media

R134aR22R407C

Series models: CXQF-57 to CXQF-219
Gas pipe diameter: 57 to 219 mm
Total volume: 29 to 400 L

Submit conditions Selection data →

Licensed pressure vessels

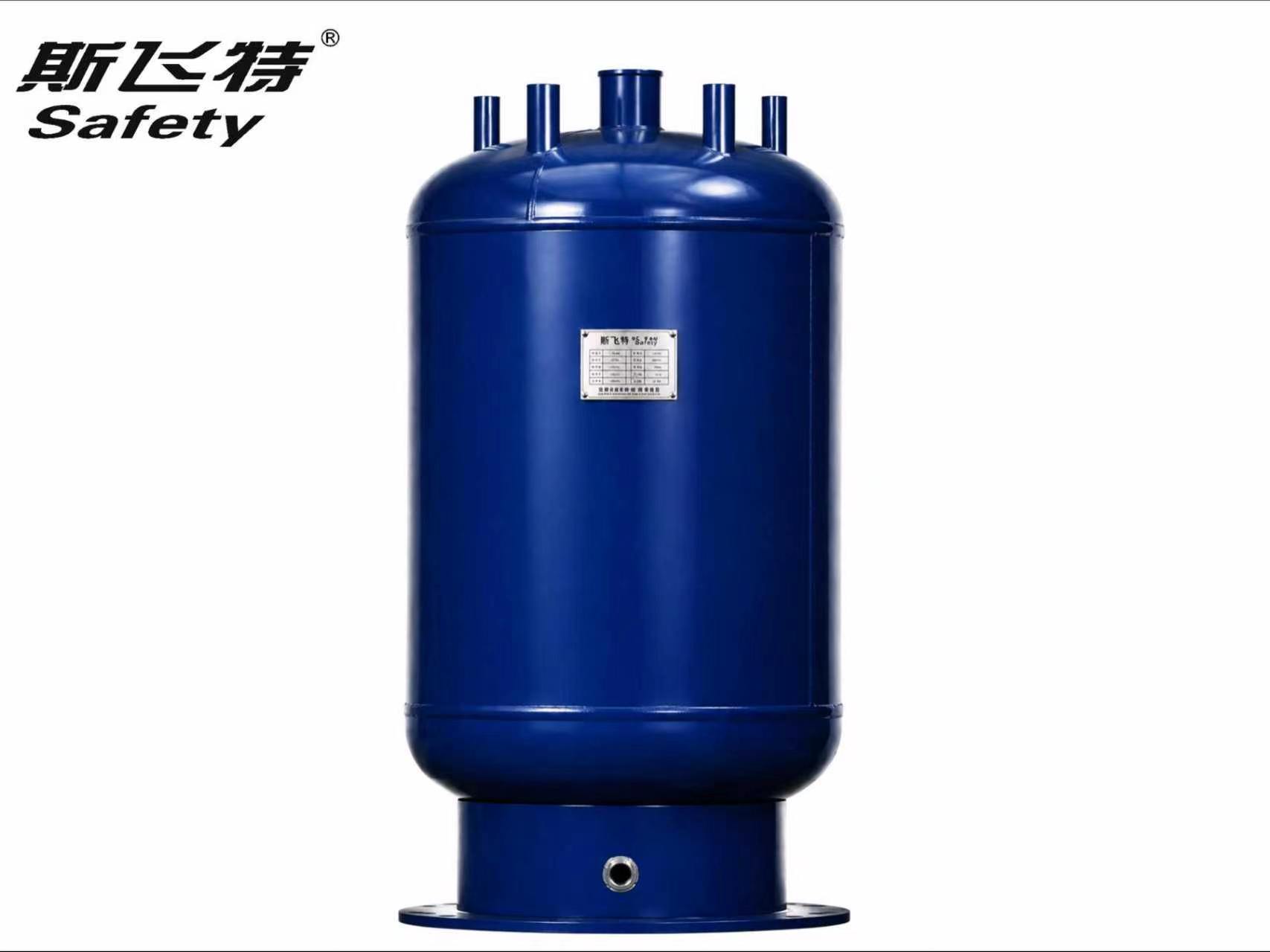

CXHR Series Refrigeration reheater

Working media

R134aR22R407C

Series models: CXHR-57 to CXHR-219
Gas pipe diameter: 57 to 219 mm
Liquid pipe diameter: 25 to 89 mm

Submit conditions Selection data →

Licensed pressure vessels

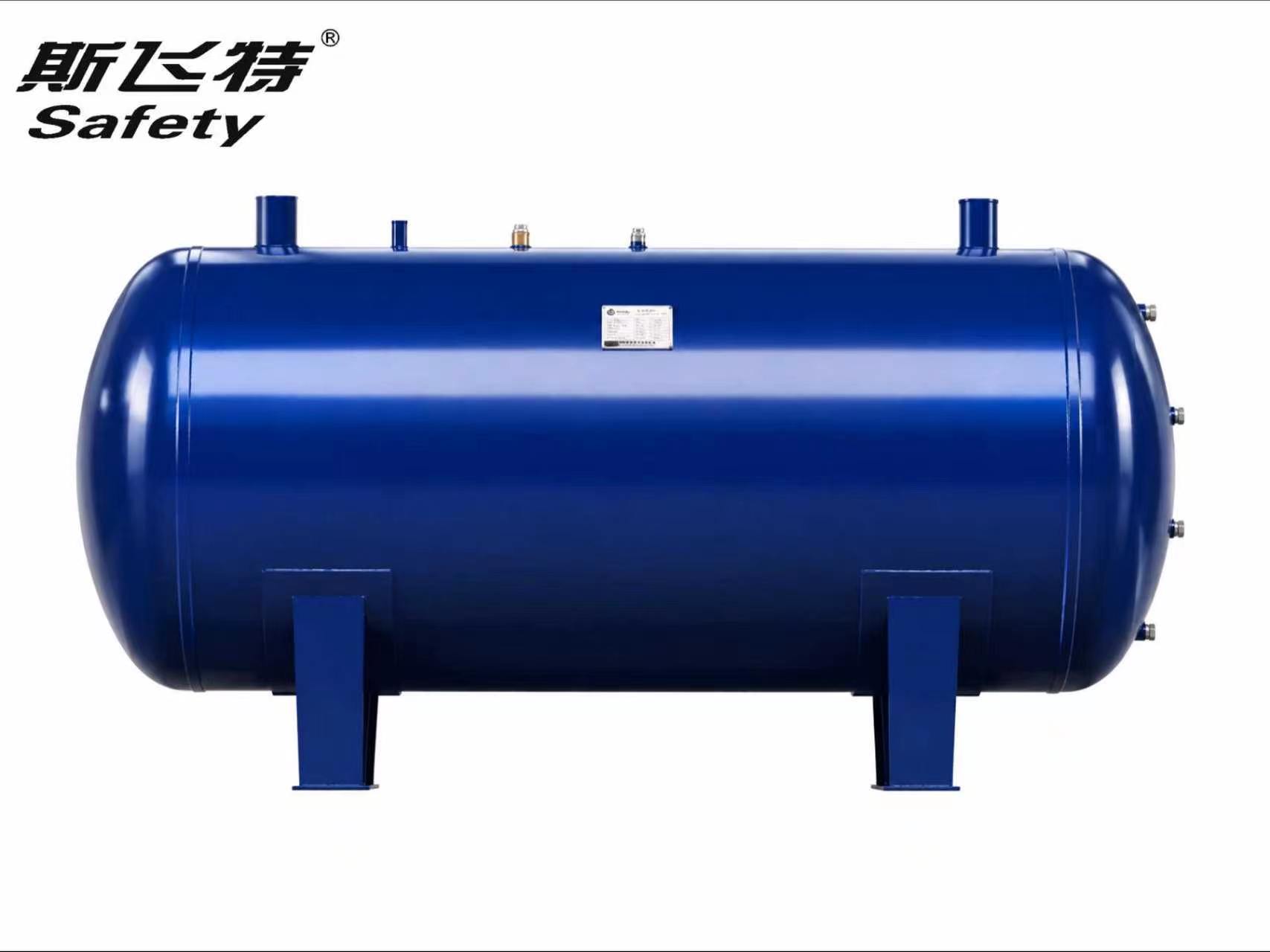

CDW Series Large horizontal refrigerant receiver

Working media

R134aR22R407C

Series models: CDW-1.0 to CDW-6.0
Nominal volume: 1.0 to 6.0 m³
Vessel diameter: 716 to 1424 mm

Submit conditions Selection data →

Licensed pressure vessels

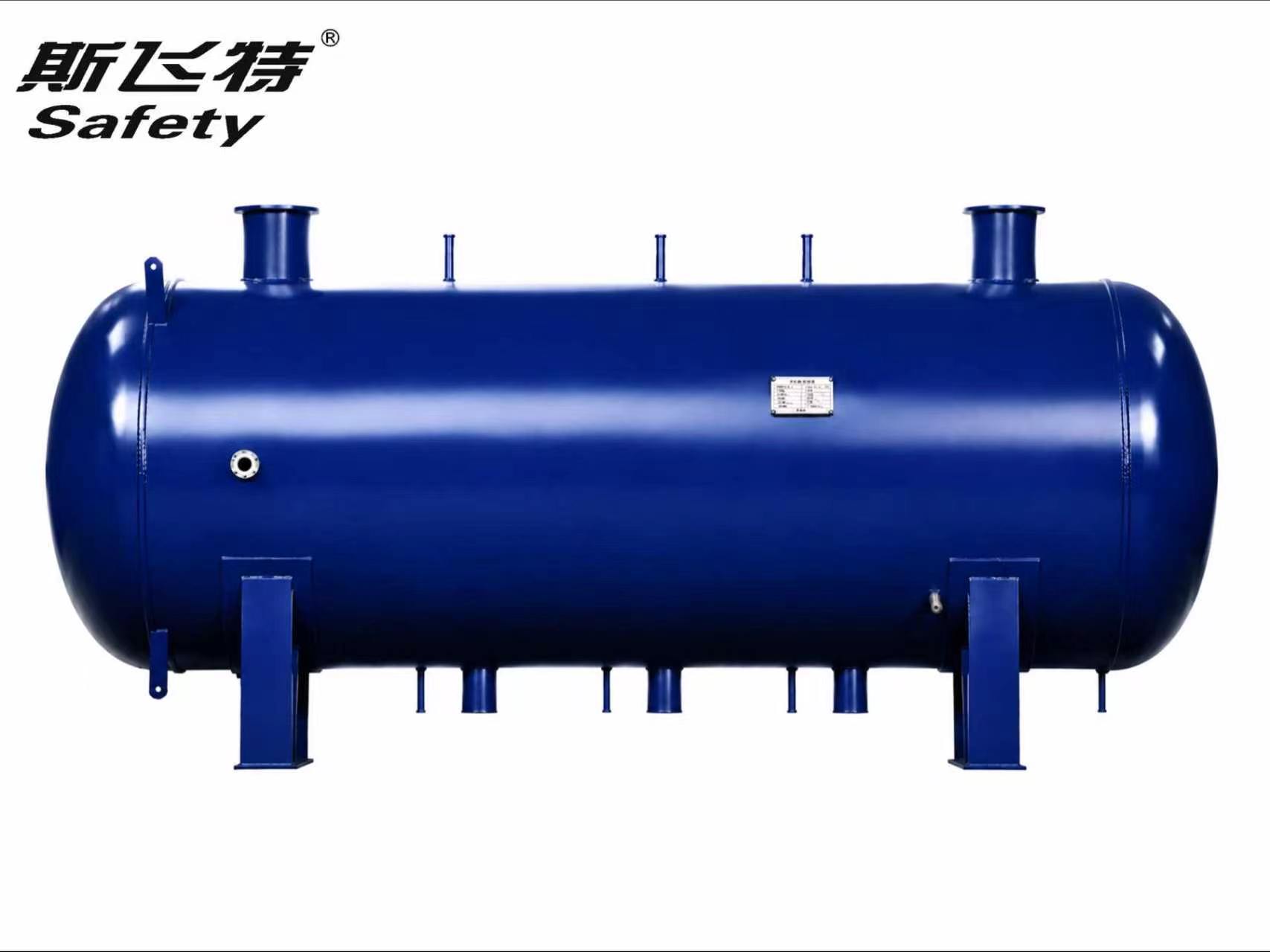

CXDX Series Low-pressure circulation vessel

Working media

R134aR22R407C

Series models: CXDX-1.5 to CXDX-12
Liquid volume: 0.44 to 3.48 m³
Total volume: 1.5 to 12 m³

Submit conditions Selection data →

Licensed pressure vessels

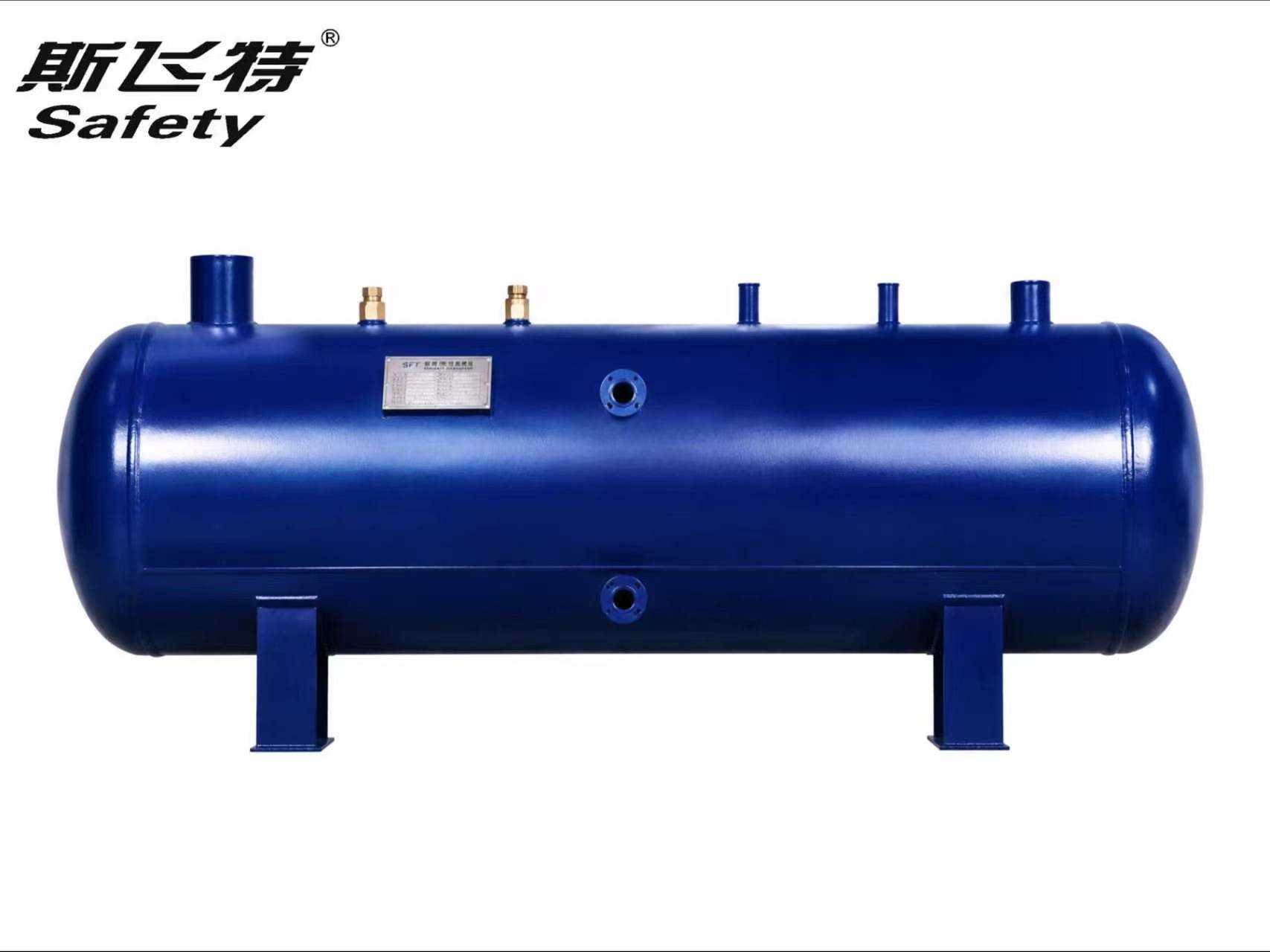

CXPY Series Liquid discharge tank

Working media

R134aR22R407C

Series models: CXPY-0.2 to CXPY-1.0
Nominal volume: 0.2 to 1.0 m³
Vessel diameter: 426 to 700 mm

Submit conditions Selection data →

Licensed pressure vessels

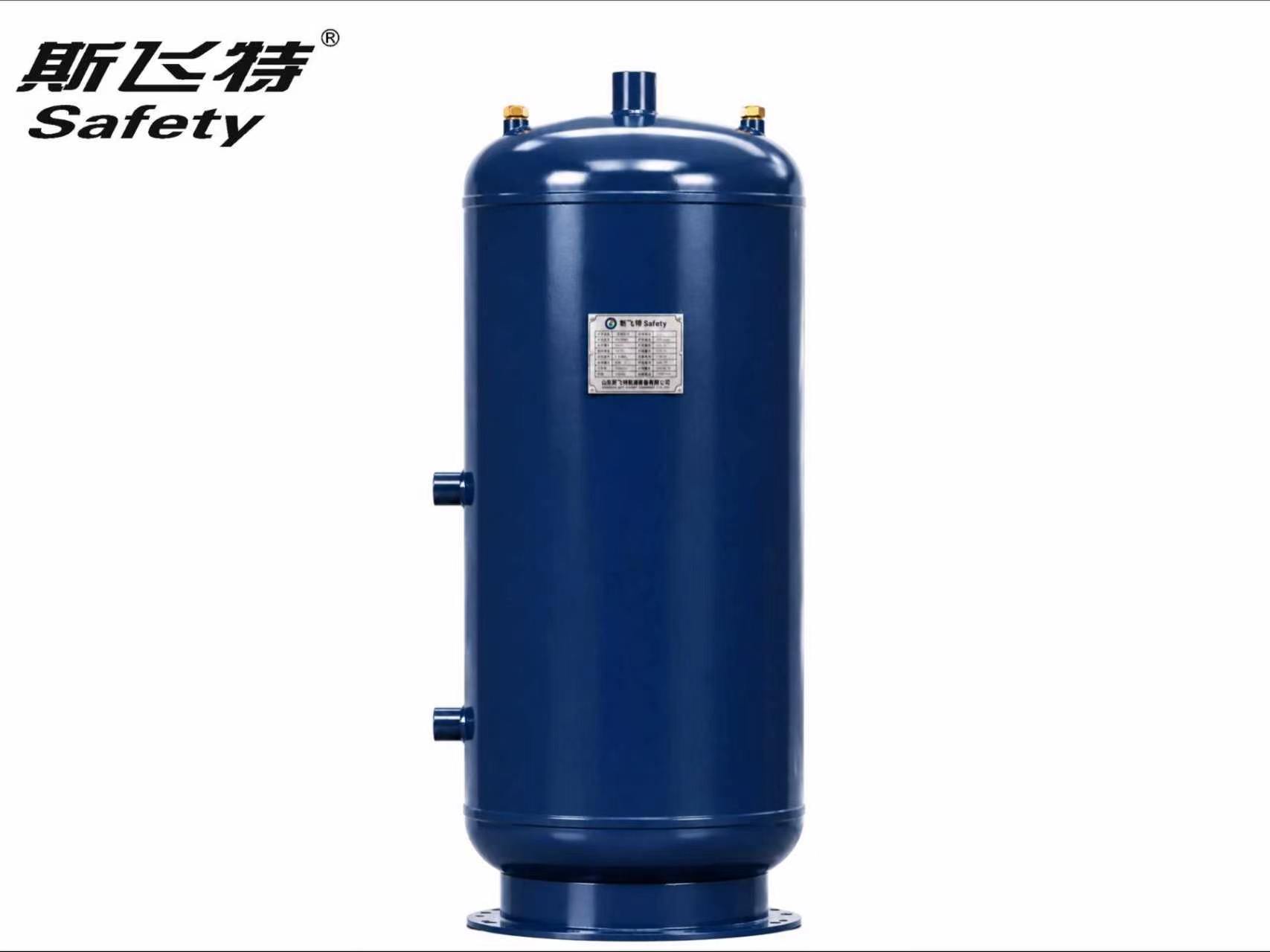

Flash tank

Working media

R134aR22R407C

Series models: Configured to project duty
Nominal volume: Configured to project duty
Design pressure: Selected to system design pressure

Submit conditions Selection data →

Licensed pressure vessels

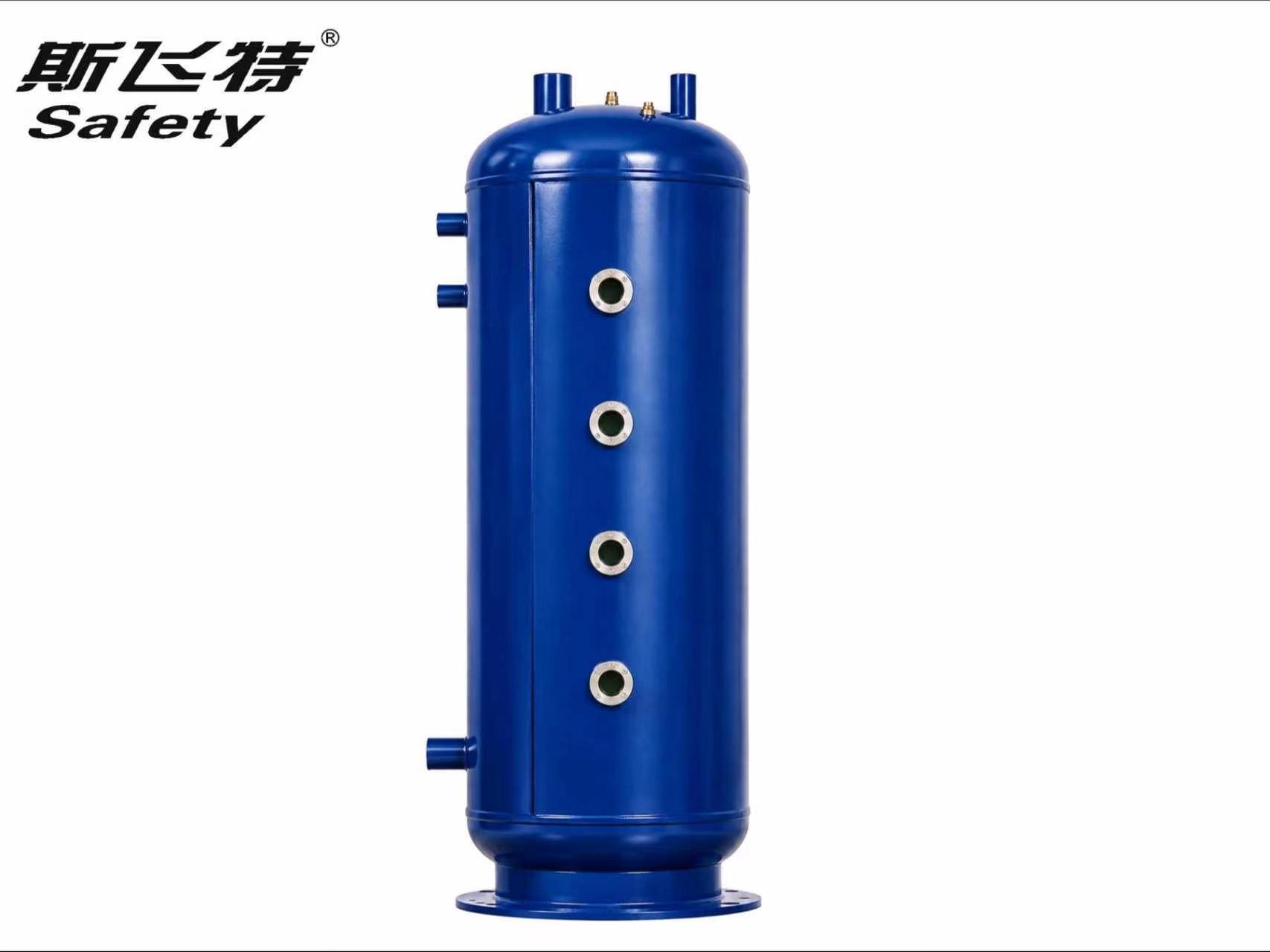

Thermosiphon receiver

Working media

R134aR22R407C

Series models: Configured to project duty
Nominal volume: Configured to project duty
Design pressure: Selected to system design pressure

Submit conditions Selection data →

Shell-and-tube heat exchangers

ZF(U) Series Seawater heat exchanger

Working media

R22R134aR407C

Series models: ZF(U)-012A to ZF(U)-060A
Nominal capacity: 36.9 to 185.4 kW
Nominal power: 12 to 60 HP

Submit conditions Selection data →

Shell-and-tube heat exchangers

HRC Series Heat-recovery condenser

Working media

R22R134aR407C

Model range: RHS006A to RHS0105A
Heat-transfer area: 3.2 to 47.9 m²
Overall length: 737 to 2623 mm

Submit conditions Selection data →

Shell-and-tube heat exchangers

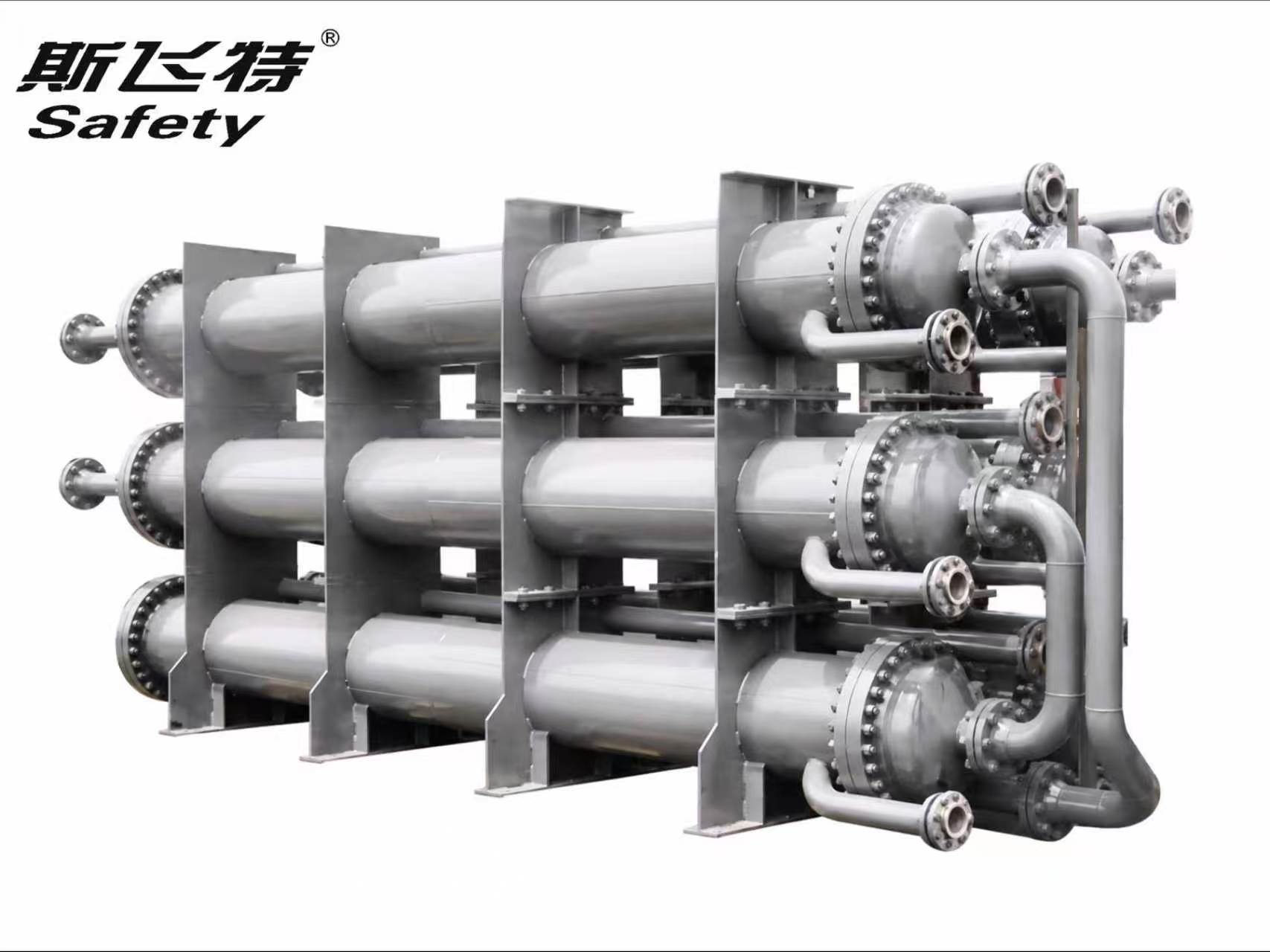

CO₂ shell-and-tube heat exchanger

Working media

R744 (CO₂)

Series models: Configured to project duty
Design pressure: CO₂ system pressure by design
Configuration: Shell-and-tube heat exchanger

Submit conditions Selection data →

Shell-and-tube heat exchangers

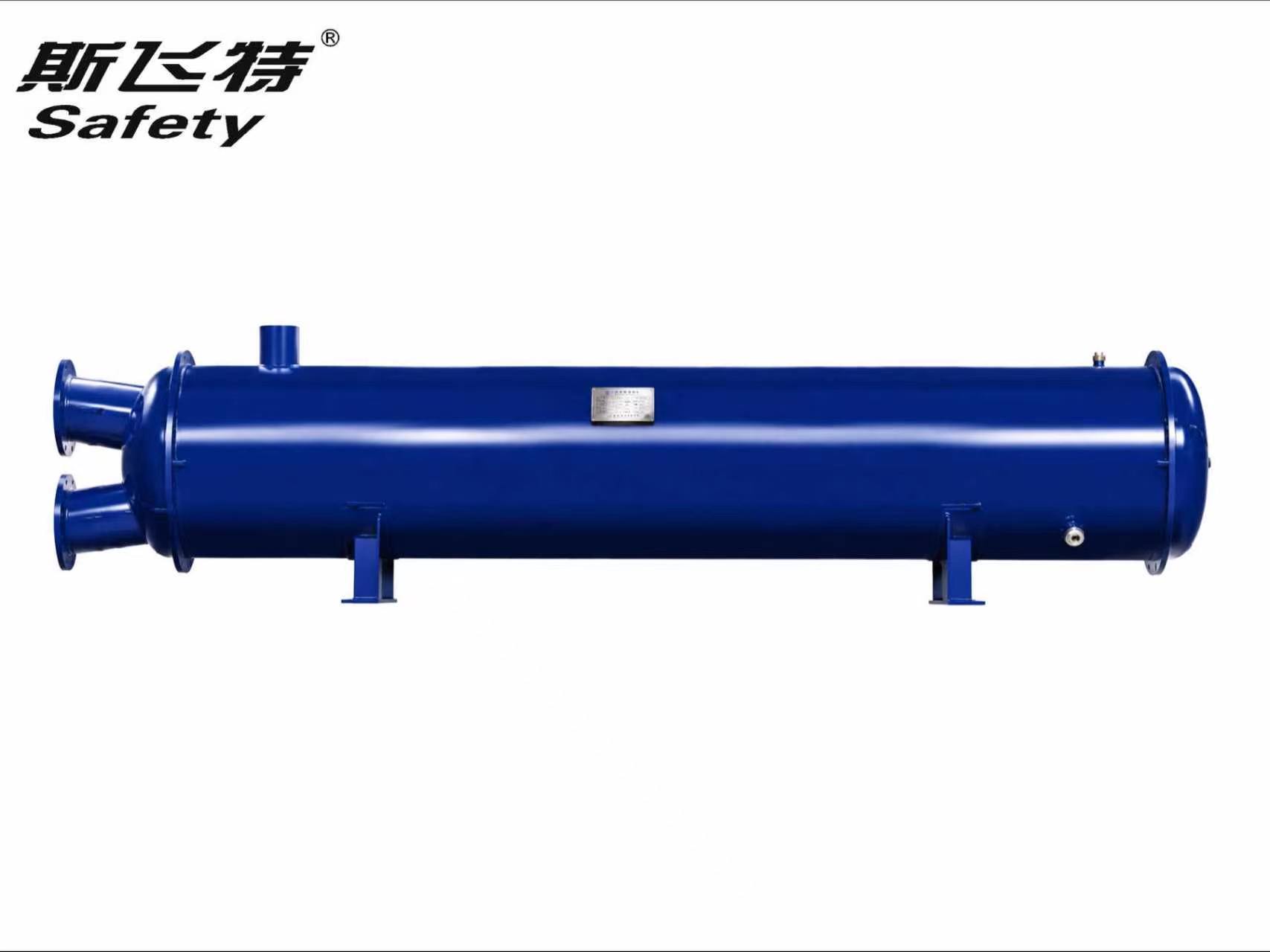

Shell-and-tube condenser

Working media

R22R134aR407C

Model range: LN003A to LN300B
Circuits: Single and double circuit
Published capacity range: 13.2 to 1318.8 kW

Submit conditions Selection data →

Shell-and-tube heat exchangers

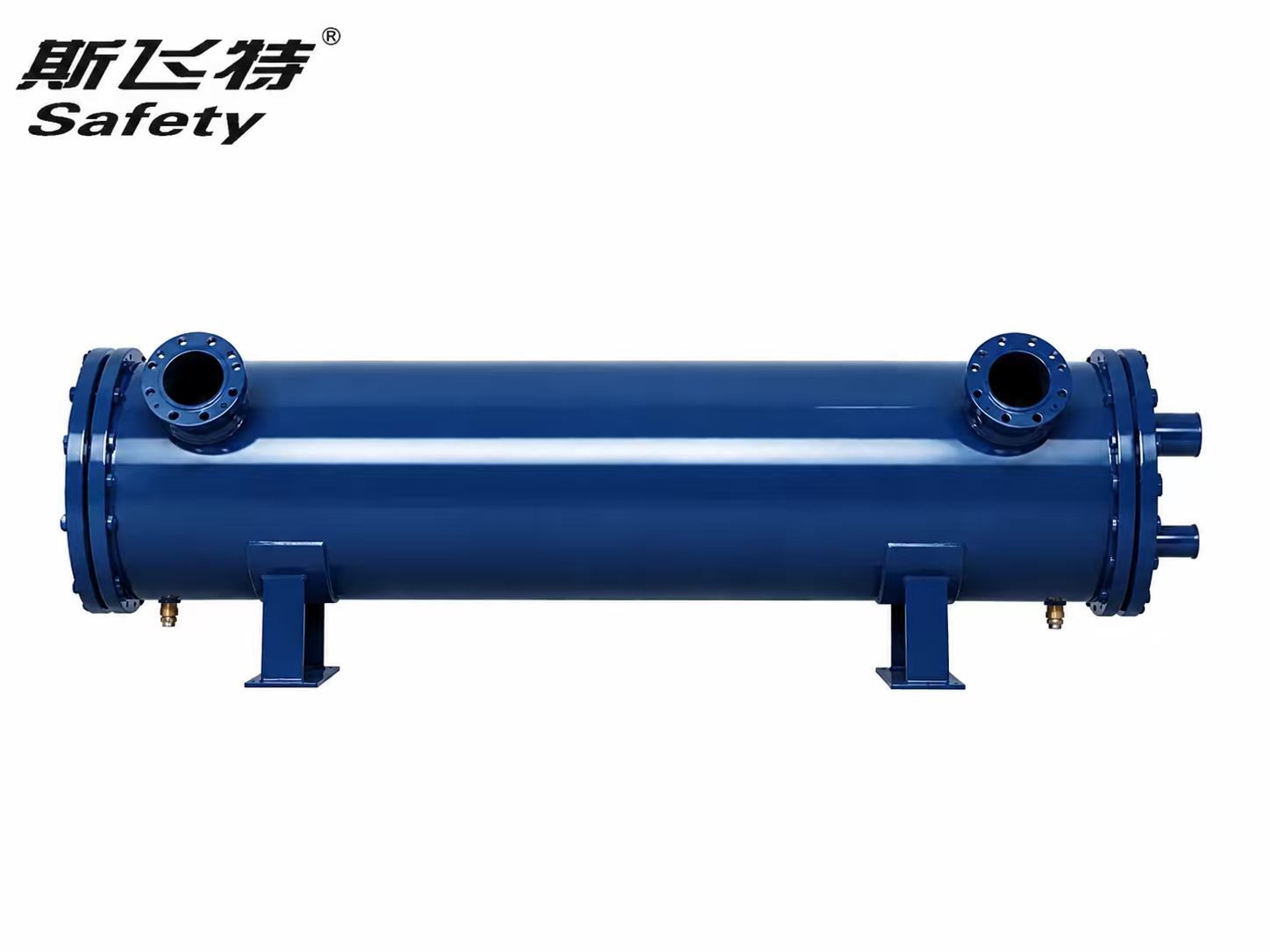

Shell-and-tube evaporator

Working media

R22R134aR407C

Model range: ZF003A to ZF440B
Circuits: Single and double circuit
Published capacity range: 10.6 to 1547.4 kW

Submit conditions Selection data →

Shell-and-tube heat exchangers

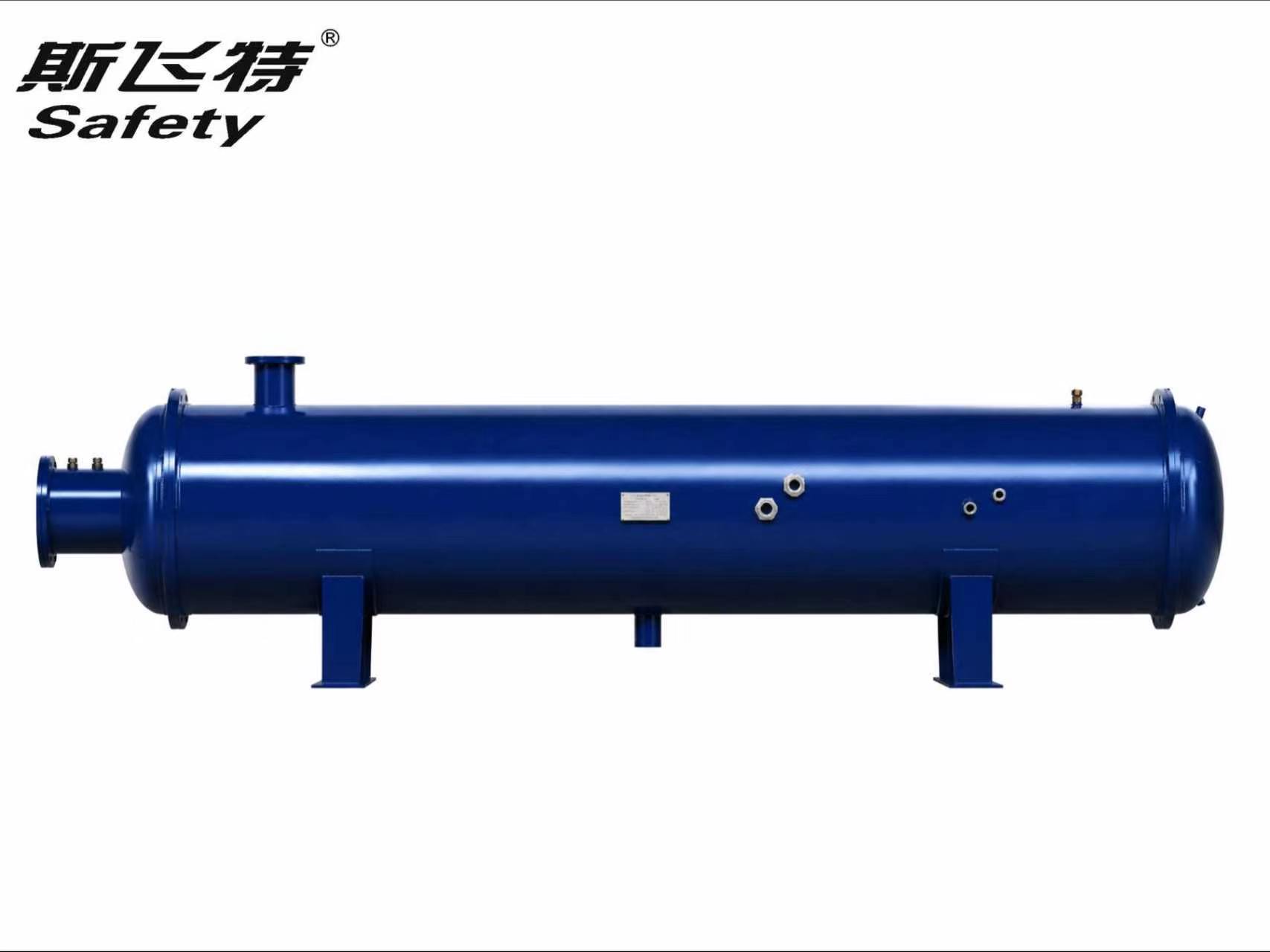

Flooded evaporator

Working media

R22R134aR407C

Model range: ZF-M100A to ZF-M480B
Circuits: Single and double circuit
Published capacity range: 351.7 to 1688.1 kW

Submit conditions Selection data →

CO₂ system equipment

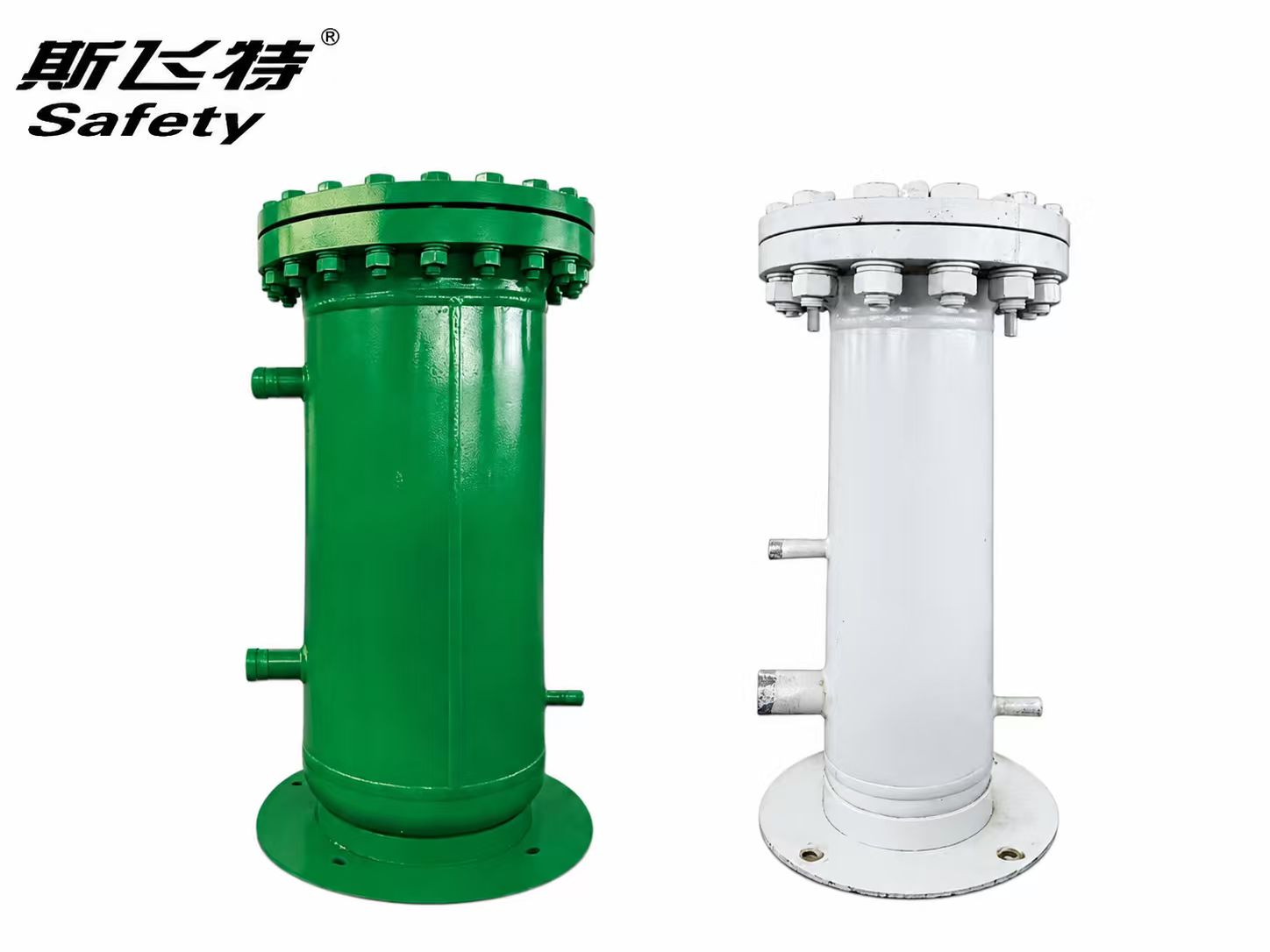

DYF Series Subcritical CO₂ oil separator

Working media

R744 (CO₂)

Series models: DYF2L to DYF25L
Maximum allowable pressure: 60 bar
Operating temperature: -40 to 140 °C

Submit conditions Selection data →

CO₂ system equipment

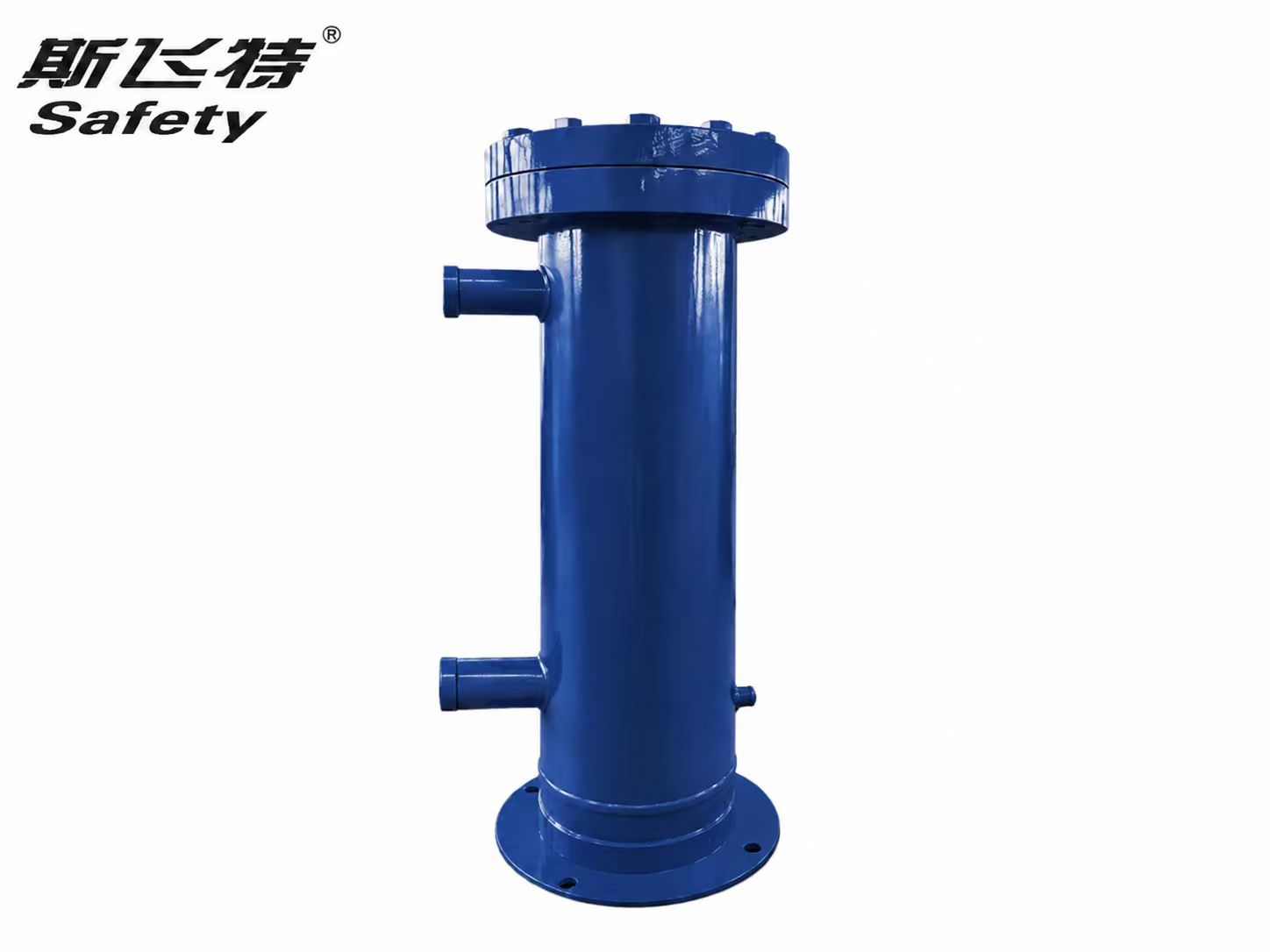

DYF Series transcritical CO₂ oil separator

Working media

R744 (CO₂)

Series models: DYF2L to DYF25L
Maximum allowable pressure: 130 bar
Operating temperature: -40 to 140 °C

Submit conditions Selection data →

CO₂ system equipment

SGZ Series CO₂ filter

Working media

R744 (CO₂)

Series models: SGZ-125 to SGZ-257
Maximum allowable pressure: 60 bar
Operating temperature: -50 to 70 °C

Submit conditions Selection data →

Plate-and-shell heat exchangers

PSHE Series Plate-and-shell heat exchanger

Working media

Configured for ammoniaHFC refrigerants or CO₂ by project

Construction: Welded plate pack inside a pressure shell
Material: Stainless-steel heat-transfer plates
Configuration: Connections, plate area and shell rating selected to project duty

Submit conditions Selection data →
