Shell-and-tube heat exchangers
Shell-and-tube condenser
Configurable condenser for industrial refrigeration and cooling systems.
- Model / series
- STC
- Product family
- Shell-and-tube heat exchangers
- Applicable refrigerants
- R22, R134a, R407C; other refrigerants on request
Shell-and-tube condenser units are selected by project duty, refrigerant, heat-transfer area, circuit count and connection layout.
Technical data
Technical data
- Model range
- LN003A to LN300B
- Circuits
- Single and double circuit
- Published capacity range
- 13.2 to 1318.8 kW
- Heat-transfer reference
- R22; R134a and R407C correction factors available
- Configuration
- Shell-and-tube condenser

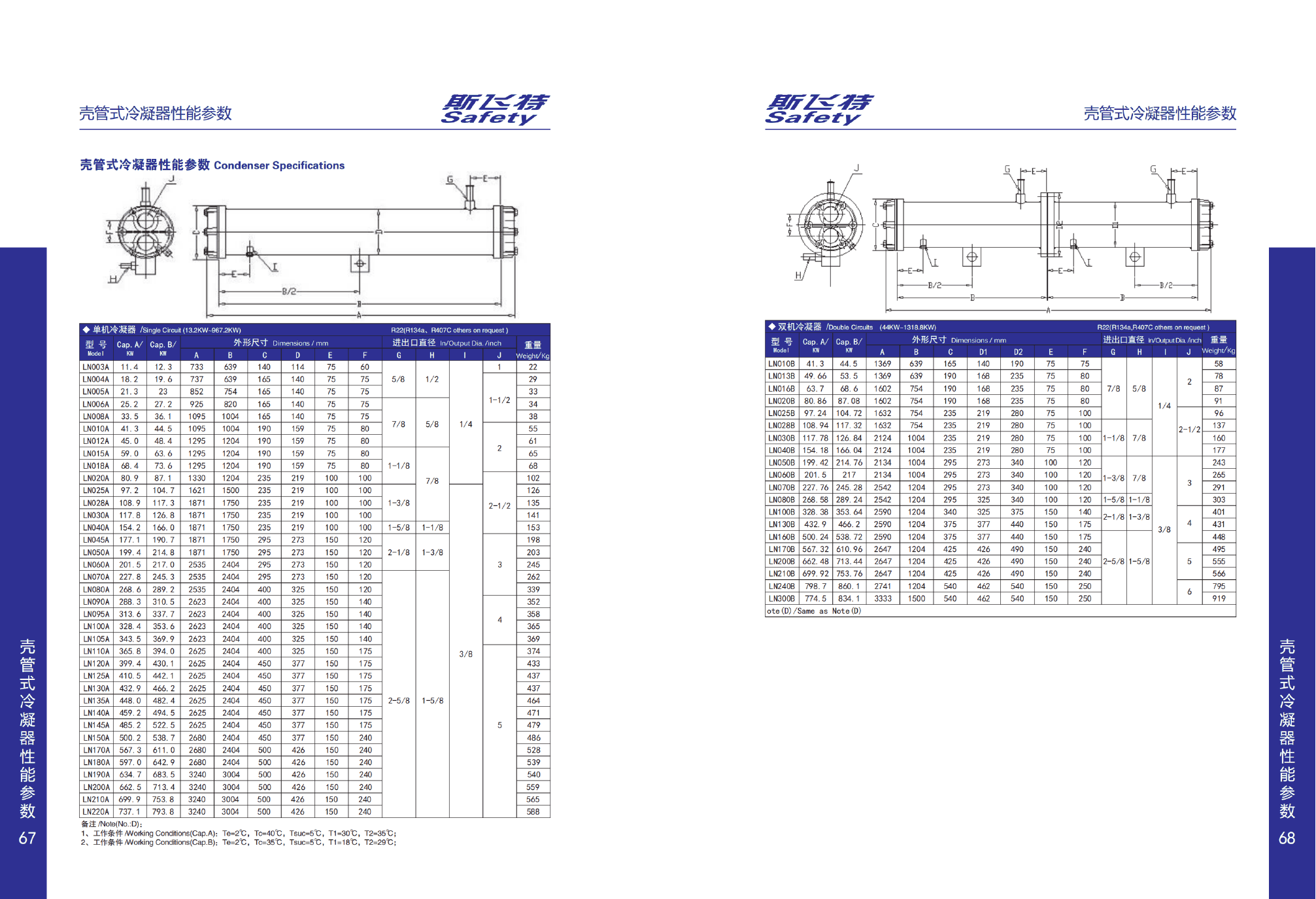

NEW CATALOG DATA · PDF PAGE 43
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
