Miniature vessels
SGS Series Filter
Catalogue series available for project-specific selection and configuration.
- Model / series
- SGS
- Product family
- Miniature vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SGS-157 to SGS-3133
- Filter cores
- 1 to 3 cartridges
- Tube outside diameter
- 57 to 133 mm
- Overall length
- 301 to 654 mm
- Volume
- 5 to 11 L
- Design pressure
- 3.0 MPa

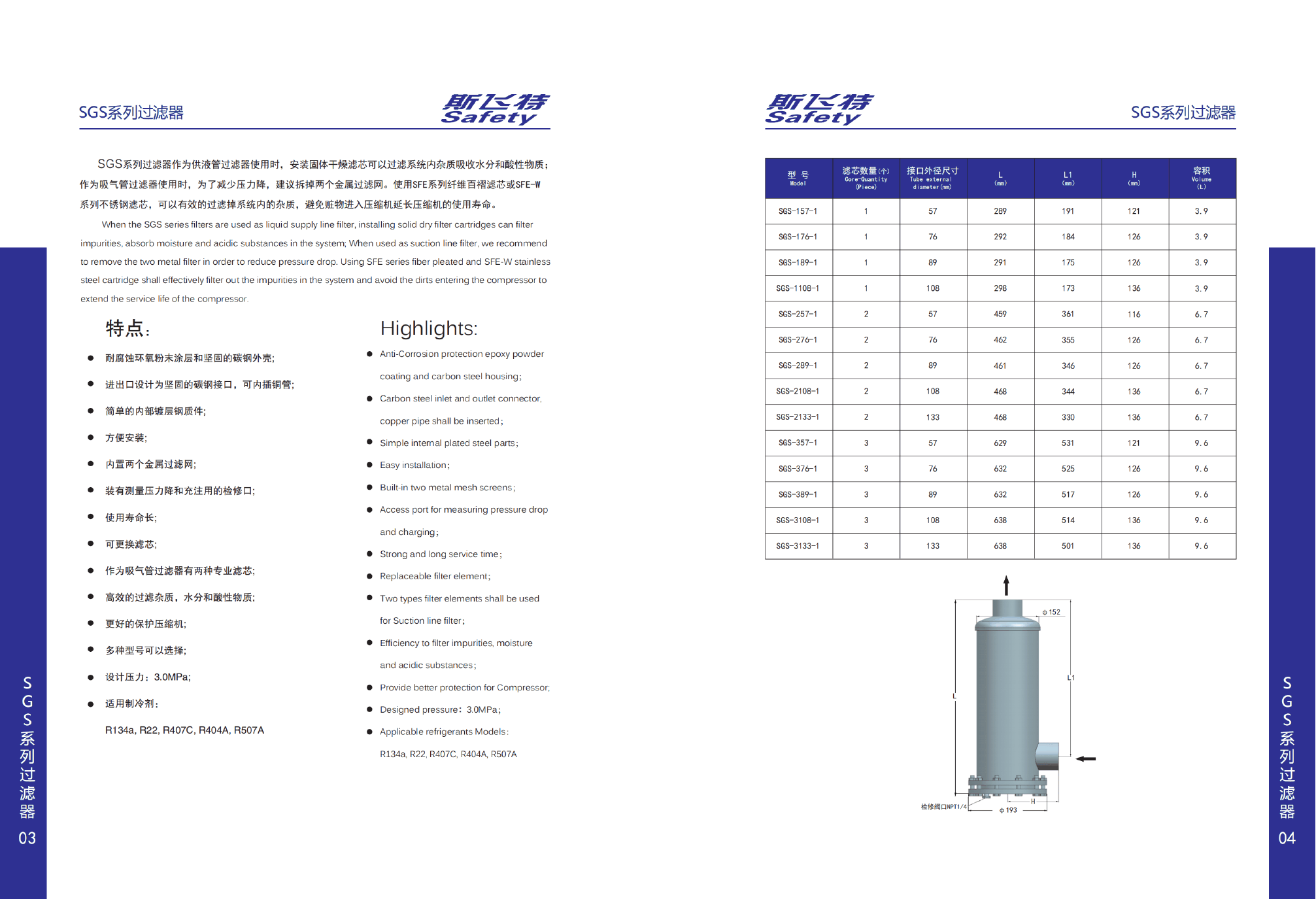

NEW CATALOG DATA · PDF PAGE 11
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
