Licensed pressure vessels
CXPY Series Liquid discharge tank
Catalogue series available for project-specific selection and configuration.
- Model / series
- CXPY
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CXPY-0.2 to CXPY-1.0
- Nominal volume
- 0.2 to 1.0 m³
- Vessel diameter
- 426 to 700 mm
- Installation
- Horizontal
- Application
- Gravity liquid supply and pump liquid supply

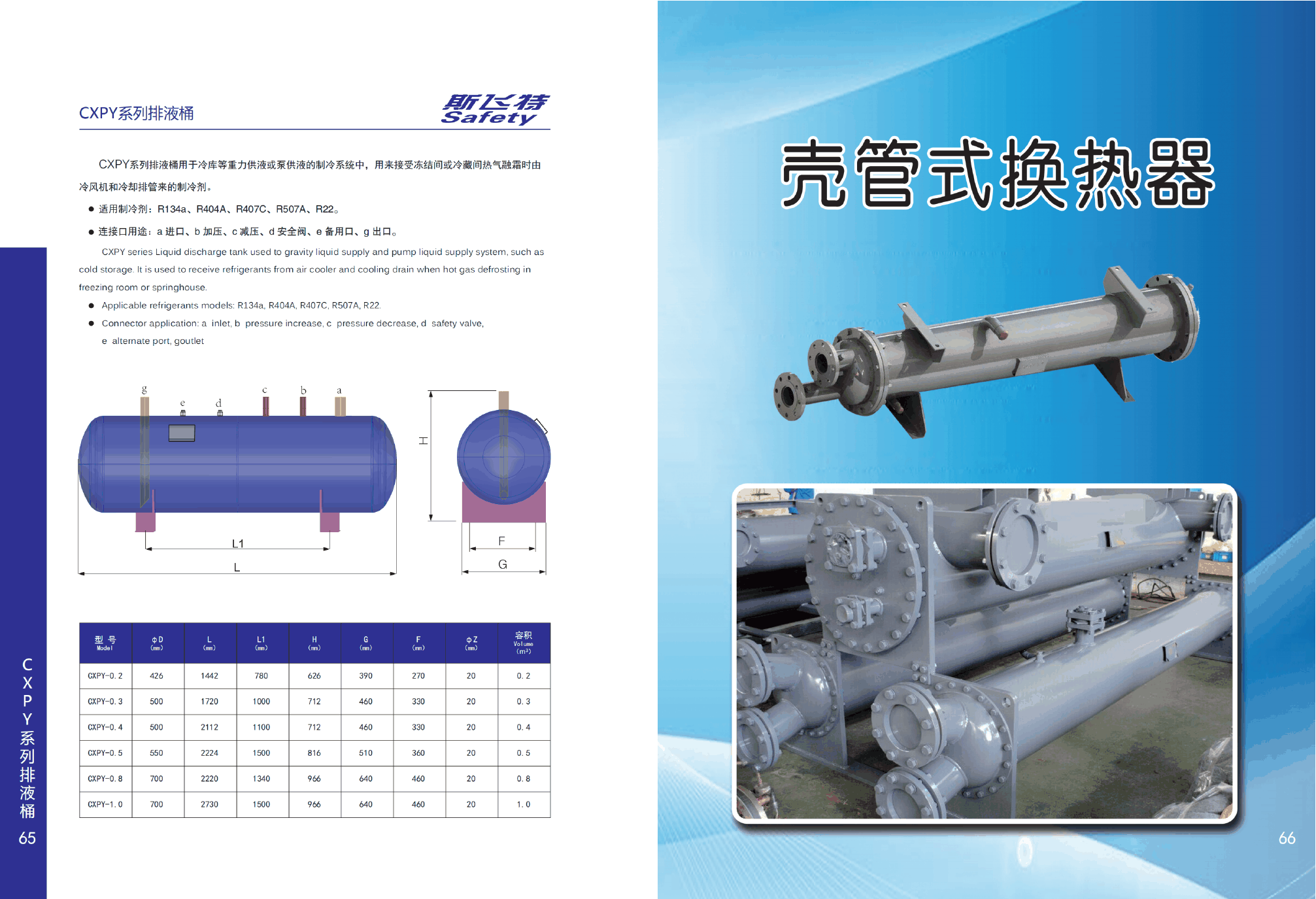

NEW CATALOG DATA · PDF PAGE 42
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
