Miniature vessels
SHX Series Siphon column
Catalogue series available for project-specific selection and configuration.
- Model / series
- SHX
- Product family
- Miniature vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SHX-57, SHX-76, SHX-89
- Evaporation temperature
- -10 to -40 °C
- Maximum load capacity
- 23.4 to 94.2 kW
- Volume
- 18 to 29 L
- Design pressure
- 3.0 MPa
NEW CATALOG DATA · PDF PAGE 20, 21
Complete catalogue technical data

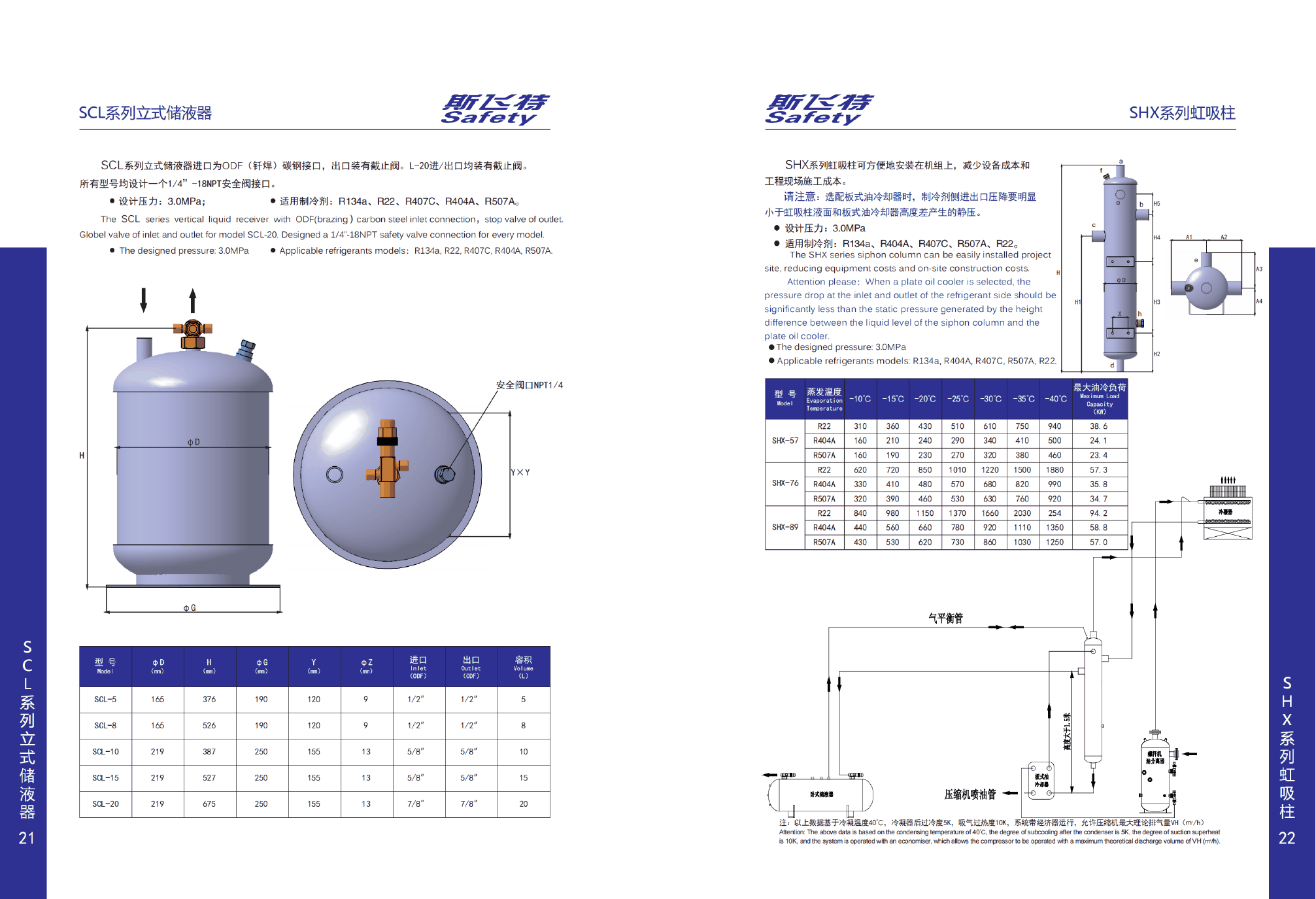

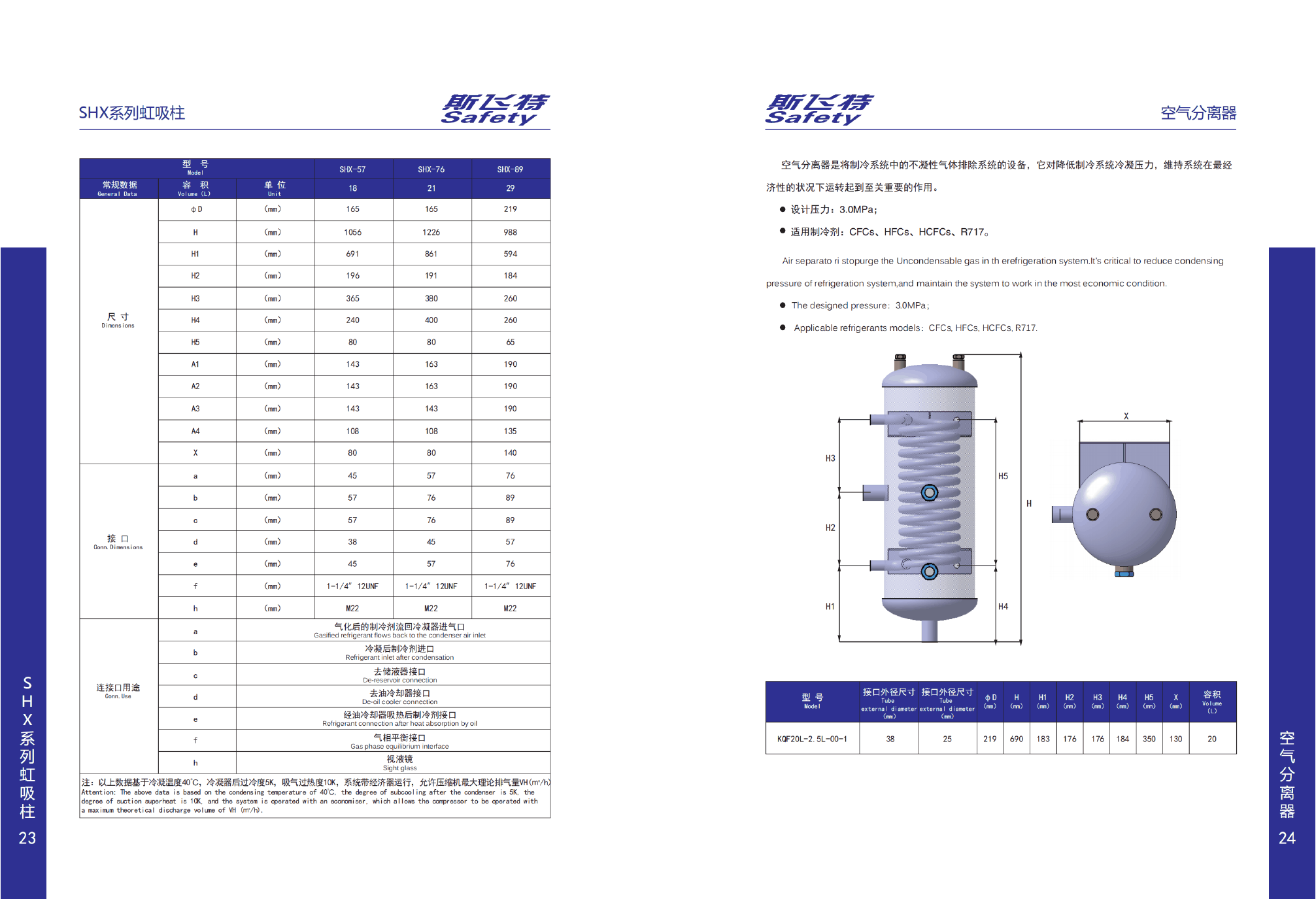

Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
