Licensed pressure vessels
S-CE Series Secondary oil separator
Catalogue series available for project-specific selection and configuration.
- Model / series
- S-CE
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- S-CE45 to S-CE219
- Oil separation efficiency
- Up to 99.8%
- Total volume
- 16 to 602 L
- Recommended compressor displacement
- 130 to 3500 m³/h
- Installation
- Vertical

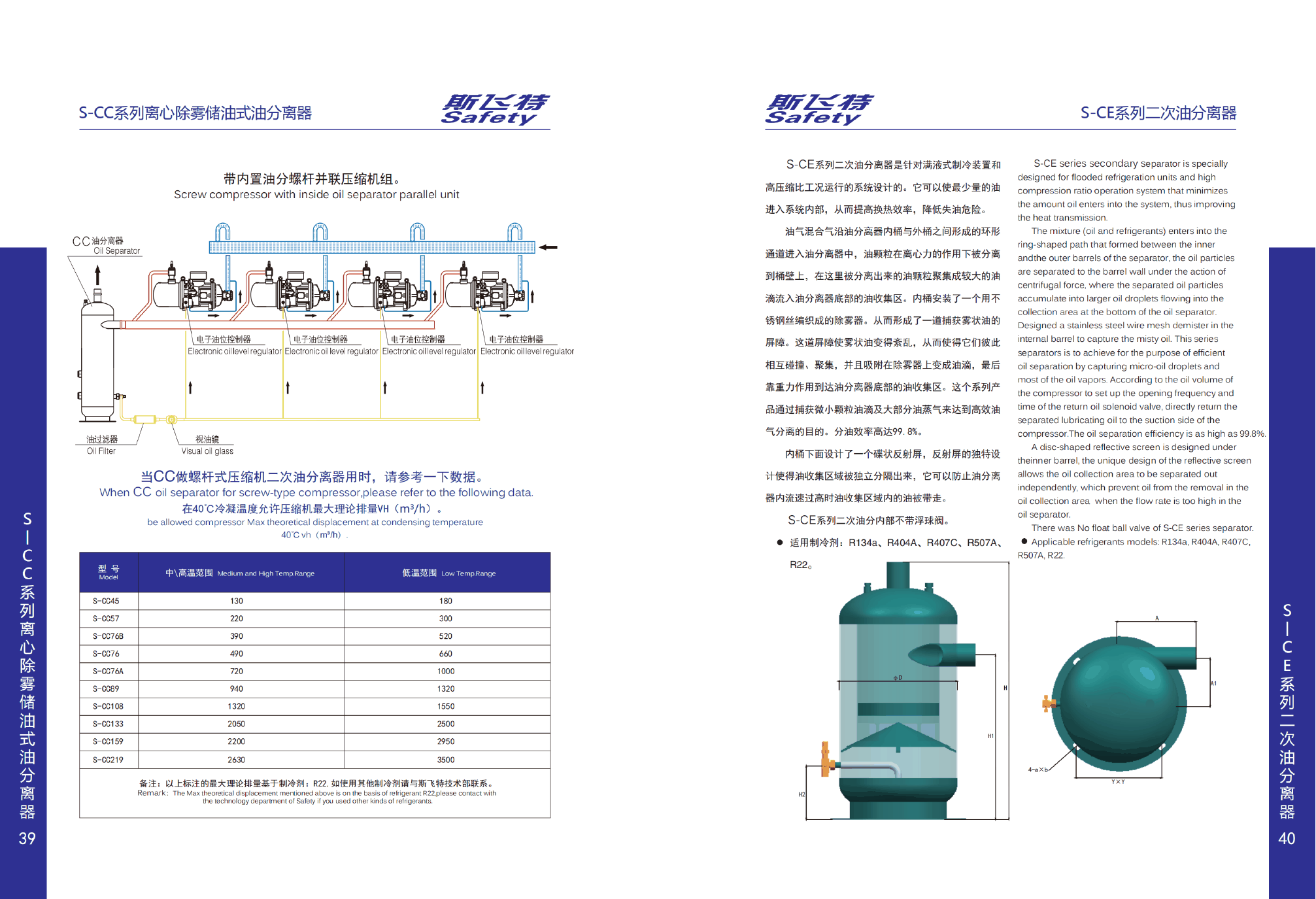

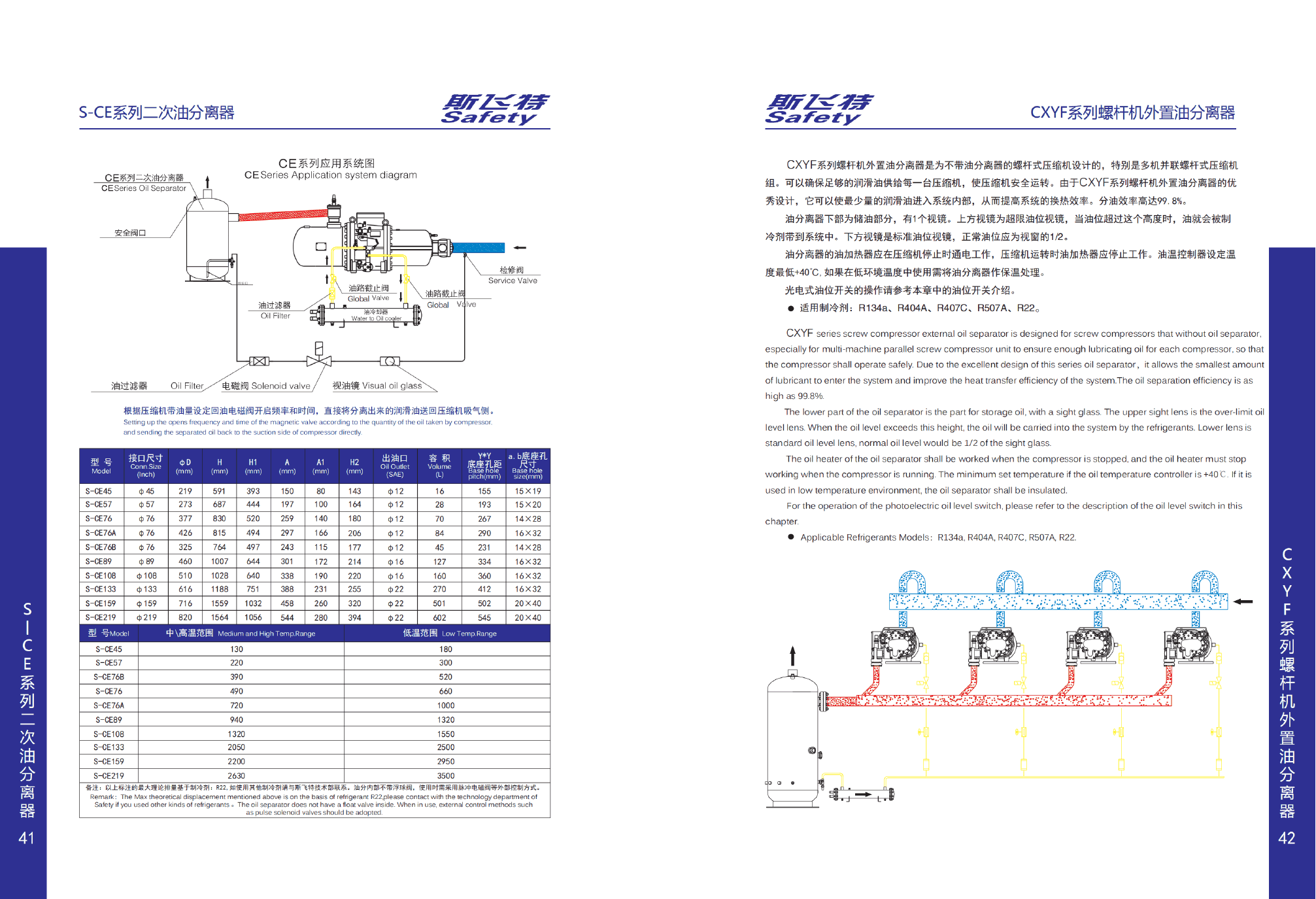

NEW CATALOG DATA · PDF PAGE 29, 30
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
