Licensed pressure vessels
S-CYW Series Horizontal refrigerant receiver
Catalogue series available for project-specific selection and configuration.
- Model / series
- S-CYW
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- S-CYW50 to S-CYW1000
- Nominal volume
- 50 to 1000 L
- Vessel diameter
- 273 to 716 mm
- Installation
- Horizontal
- Standard
- NB/T 47012-2020

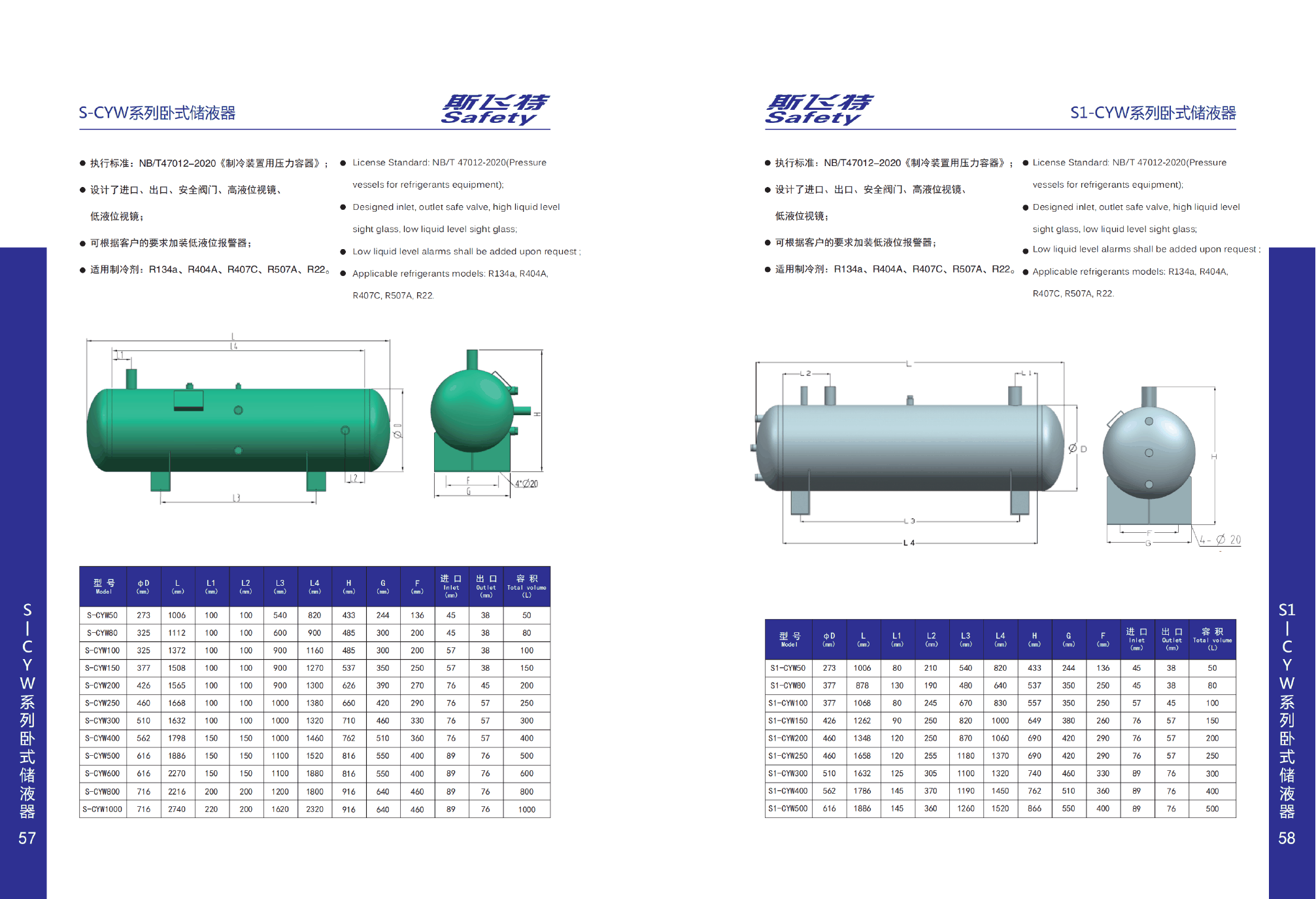

NEW CATALOG DATA · PDF PAGE 38
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
