Licensed pressure vessels
CXWY Series Horizontal oil separator for screw compressor
Catalogue series available for project-specific selection and configuration.
- Model / series
- CXWY
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CXWY-50 to CXWY-2200
- Oil separation efficiency
- Up to 99.8%
- Total volume
- 50 to 2200 L
- Recommended compressor displacement
- 260 to 5350 m³/h depending on refrigerant
- Installation
- Horizontal

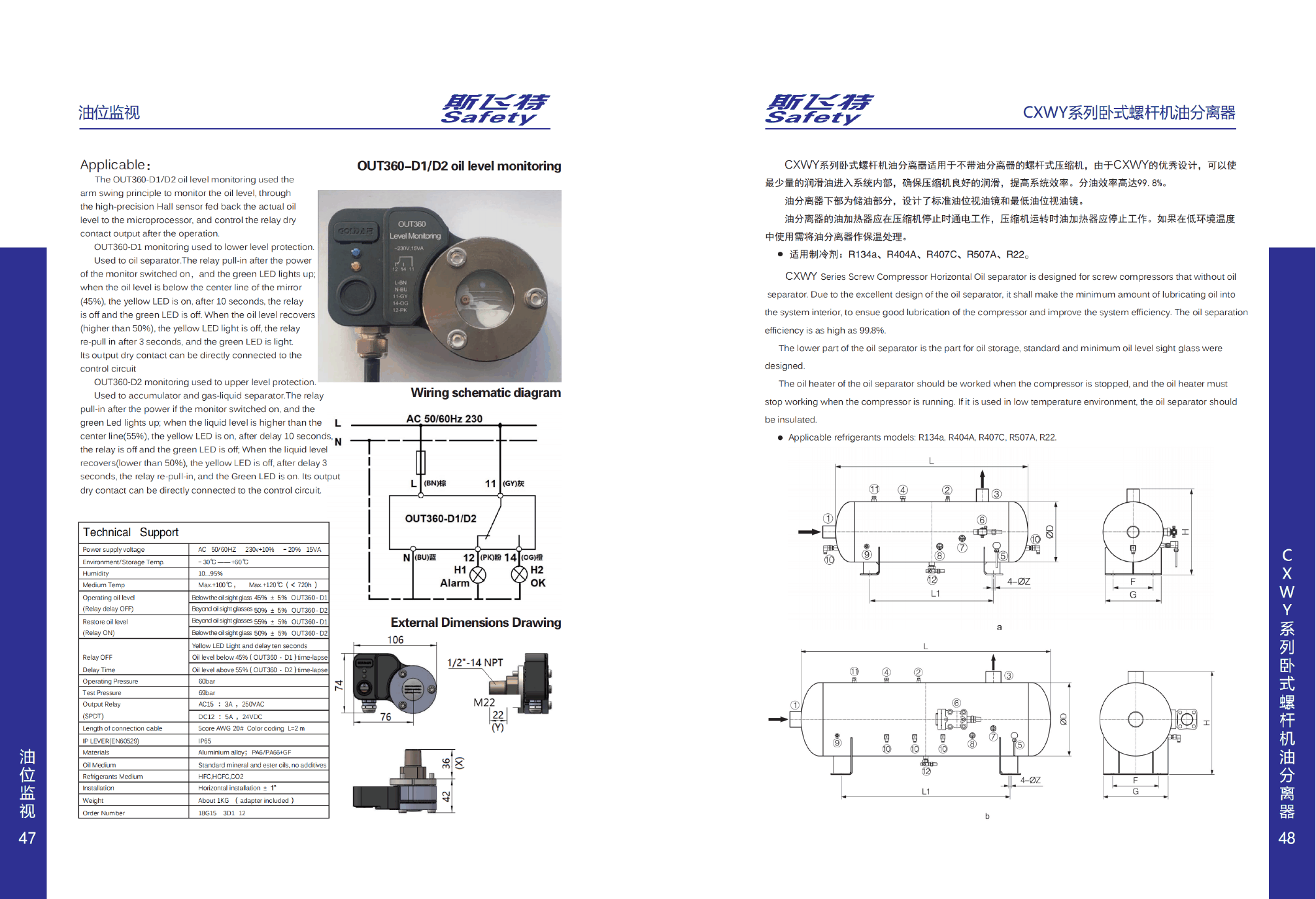

NEW CATALOG DATA · PDF PAGE 33, 34
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
