Licensed pressure vessels
CWYG Series High-efficiency oil separator
Catalogue series available for project-specific selection and configuration.
- Model / series
- CWYG
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CWYG-530 to CWYG-4700
- Oil separation accuracy
- 5 to 20 ppm
- Total volume
- 530 to 4700 L
- Configuration
- Horizontal high-efficiency separator with oil storage

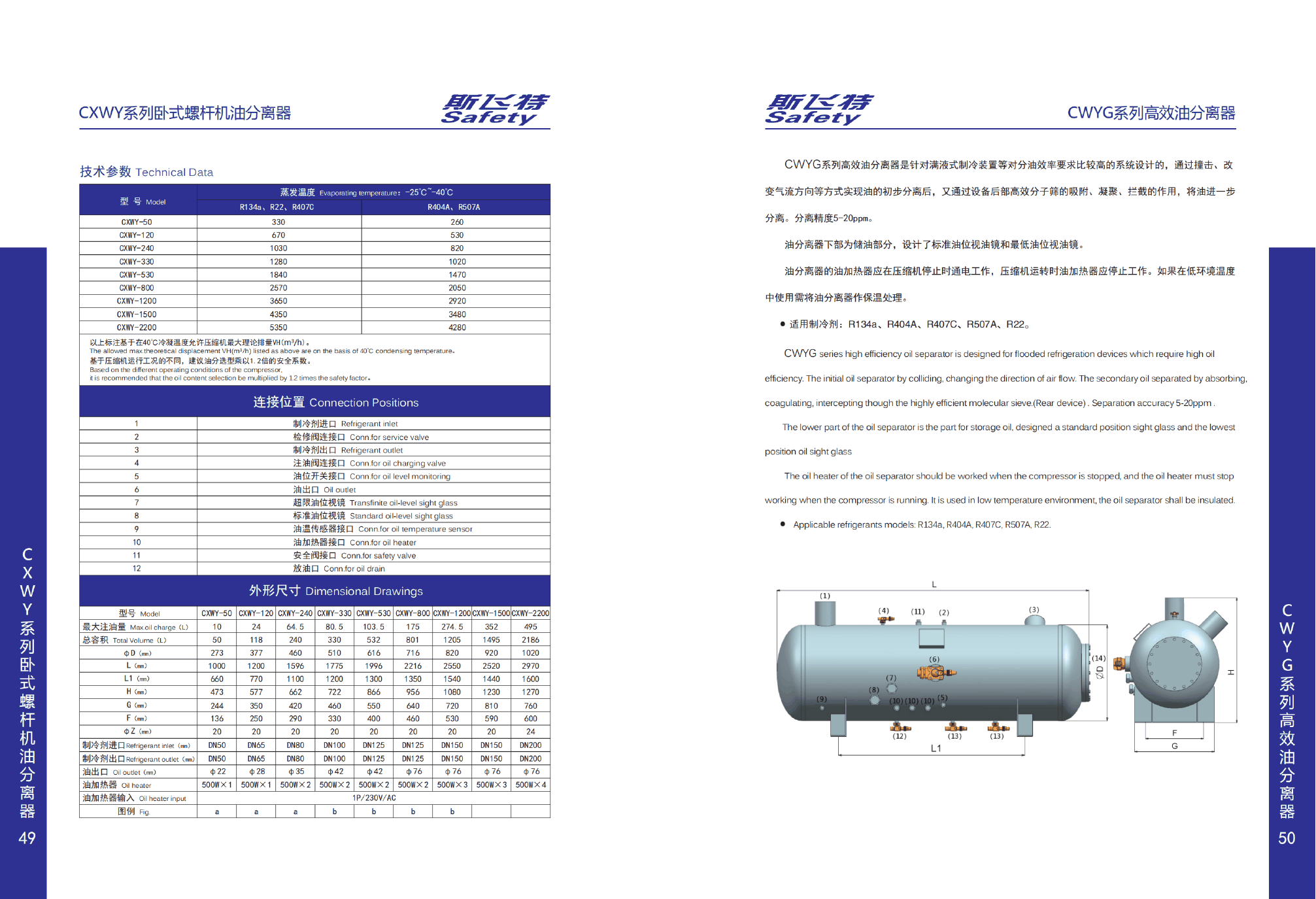

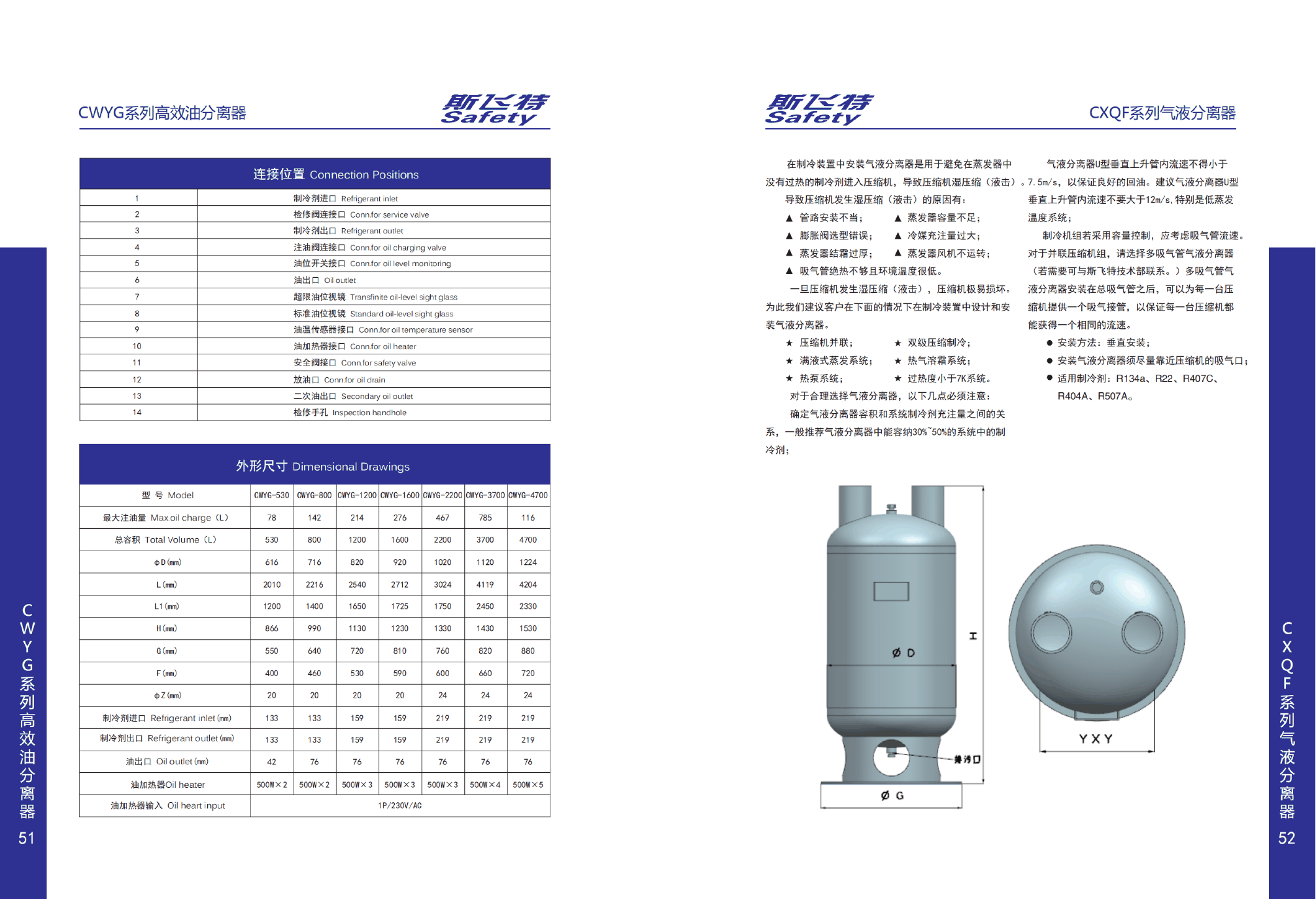

NEW CATALOG DATA · PDF PAGE 34, 35
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
