Licensed pressure vessels
CXYF Series External oil separator for screw compressor
Catalogue series available for project-specific selection and configuration.
- Model / series
- CXYF
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CXYF-29 to CXYF-2200
- Oil separation efficiency
- Up to 99.8%
- Recommended compressor displacement
- 110 to 6500 m³/h depending on refrigerant and temperature range
- Installation
- Vertical

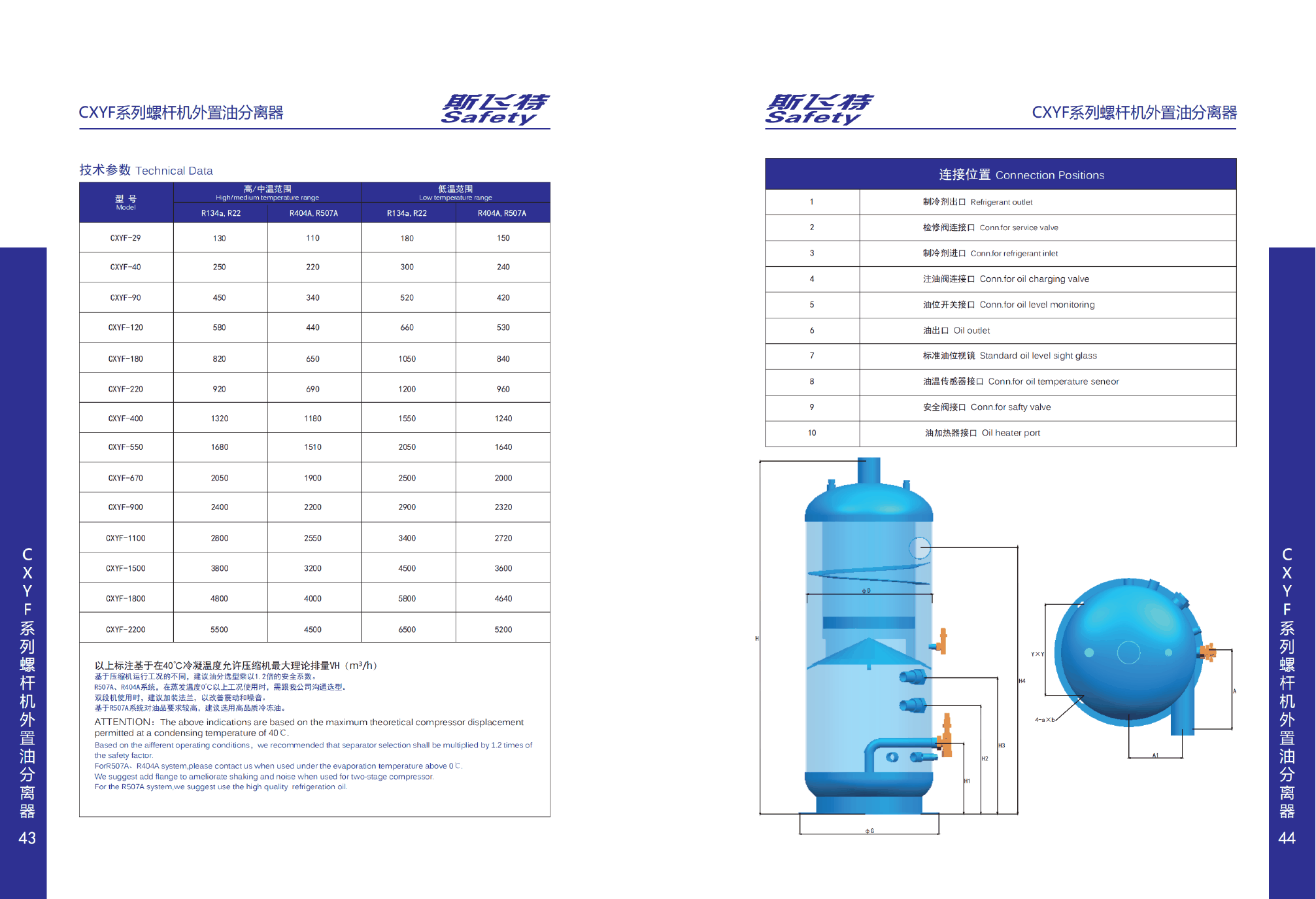

NEW CATALOG DATA · PDF PAGE 30, 31
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
