SFT Series Filter cartridges
Catalogue series available for project-specific selection and configuration.
- Model / series
- SFT
- Product family
- Components & accessories
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Variants
- SFT-48G, SFT-48Y, SFT-48Z, SFT-100Z, SFT-100G and CO₂ cartridge
- Filter media
- Pleated fibre or stainless steel
- Filter accuracy
- 20 μm fibre / 250 μm stainless steel
- Temperature range
- -50 to 100 °C
- Filter cartridge variants
- SFT-48G stainless steel; SFT-48Y; SFT-48Z (diamond inner frame); SFT-100Z; SFT-100G stainless steel; CO₂ filter cartridge

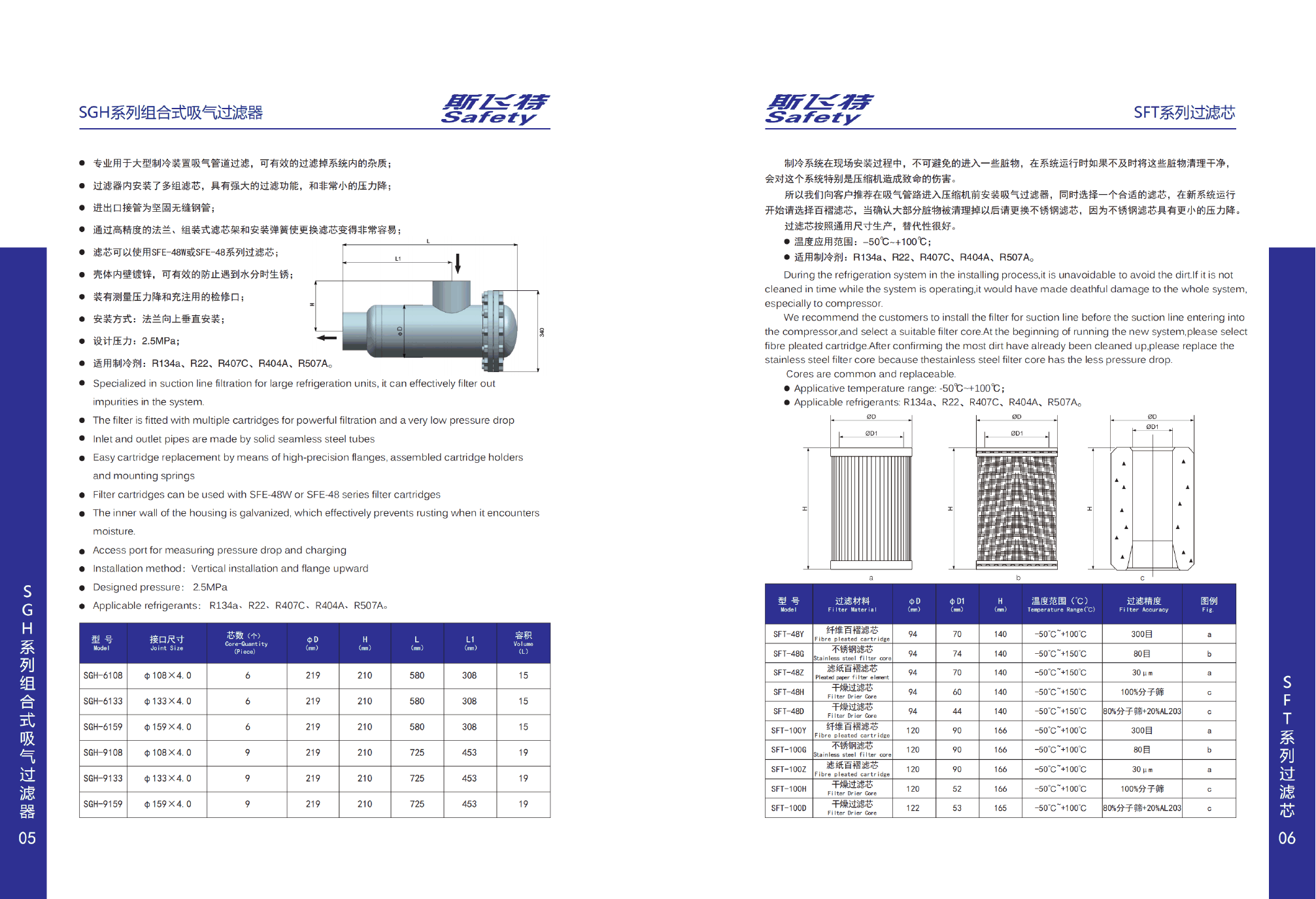

NEW CATALOG DATA · PDF PAGE 12
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
