Miniature vessels
SGL Series Filter
Catalogue series available for project-specific selection and configuration.
- Model / series
- SGL
- Product family
- Miniature vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SGL-120 to SGL-489
- Filter cores
- 1 to 4 cartridges
- Tube outside diameter
- 20 to 89 mm
- Overall length
- 235 to 672 mm
- Volume
- 1.7 to 5.5 L
- Design pressure
- 3.0 MPa

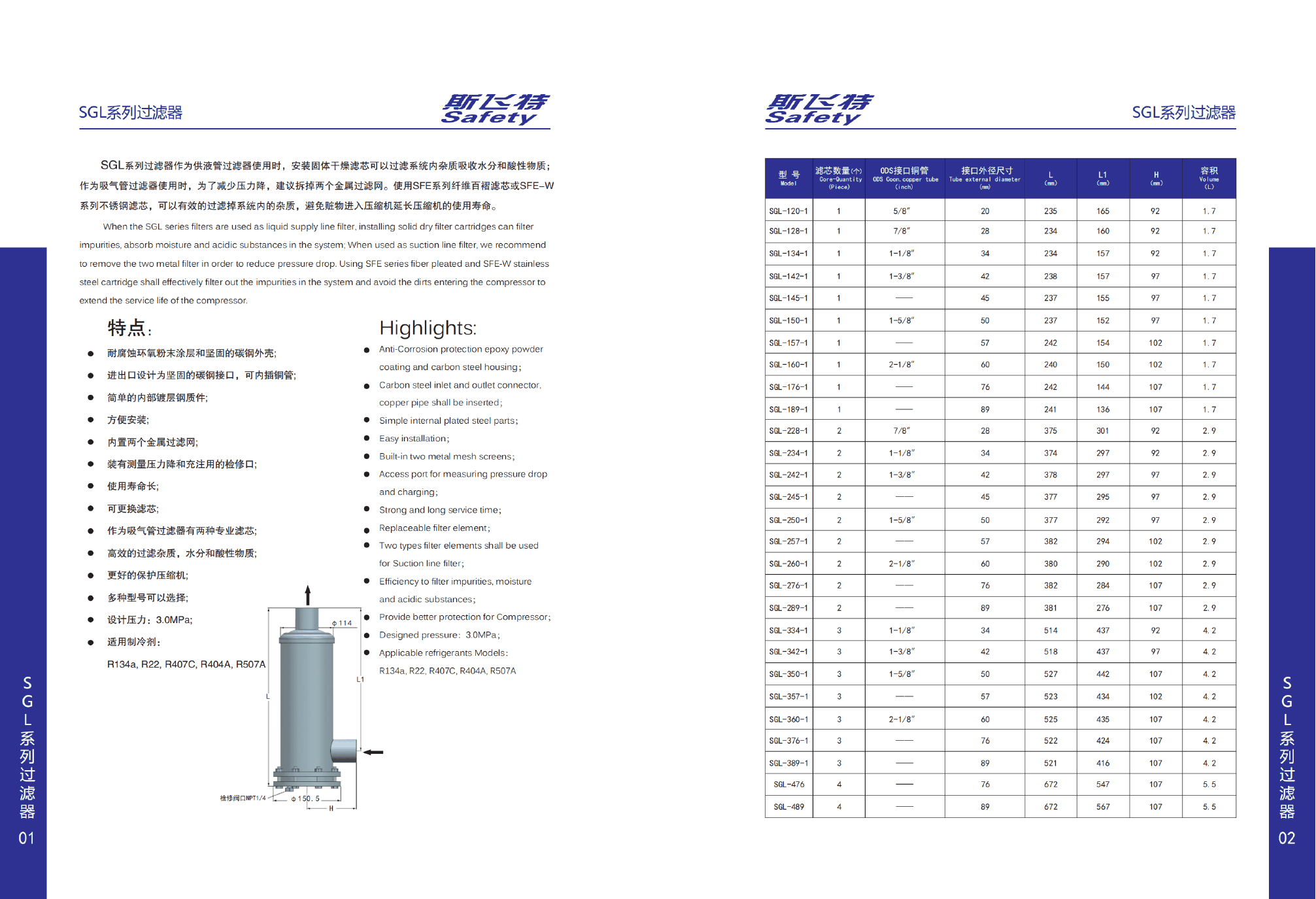

NEW CATALOG DATA · PDF PAGE 10
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
