Shell-and-tube heat exchangers
HRC Series Heat-recovery condenser
Catalogue series available for project-specific selection and configuration.
- Model / series
- HRC
- Product family
- Shell-and-tube heat exchangers
- Applicable refrigerants
- R22, R134a, R407C; other refrigerants on request
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Model range
- RHS006A to RHS0105A
- Heat-transfer area
- 3.2 to 47.9 m²
- Overall length
- 737 to 2623 mm
- Configuration
- Heat-recovery condenser

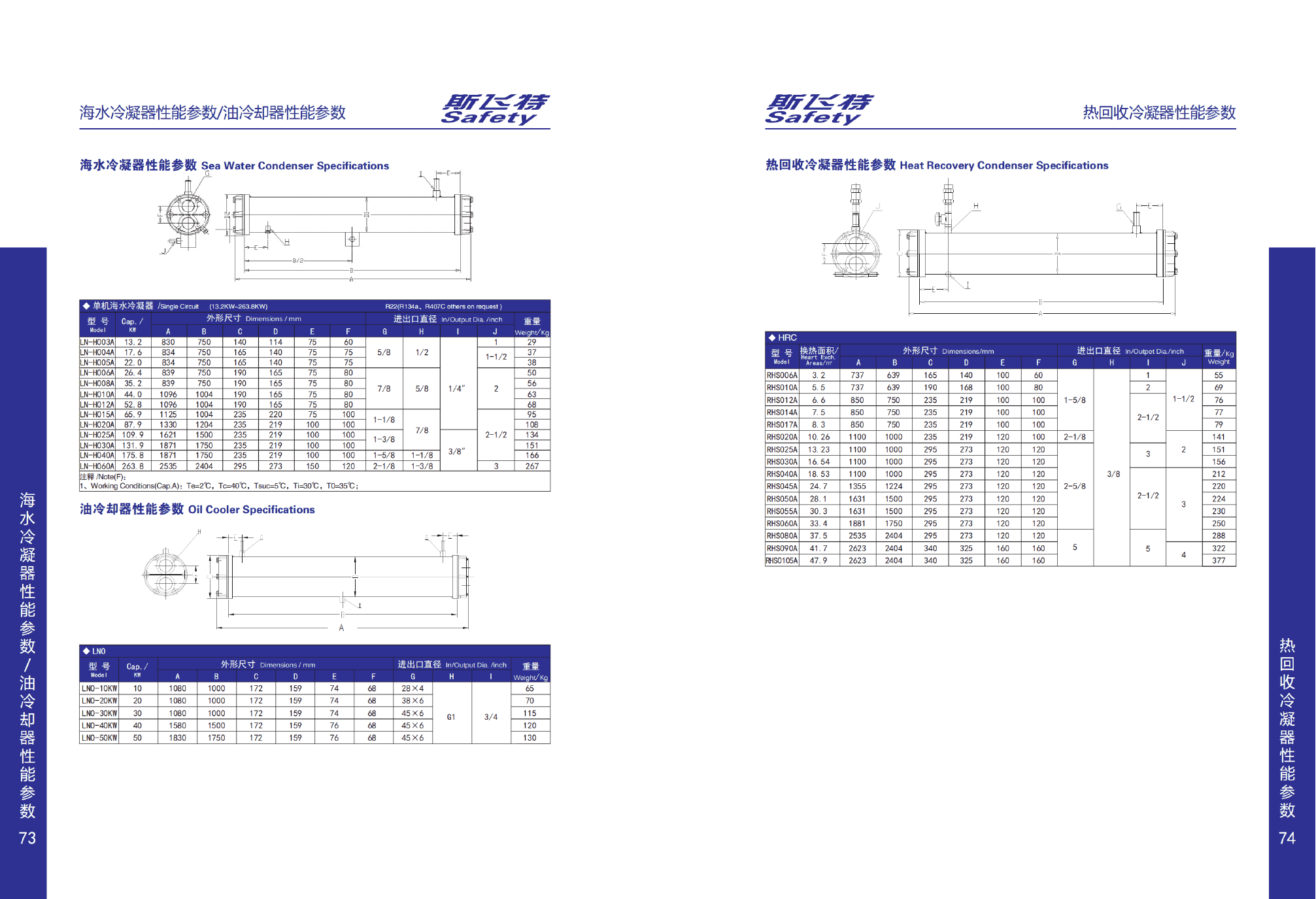

NEW CATALOG DATA · PDF PAGE 46
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
