Licensed pressure vessels
CDW Series Large horizontal refrigerant receiver
Catalogue series available for project-specific selection and configuration.
- Model / series
- CDW
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CDW-1.0 to CDW-6.0
- Nominal volume
- 1.0 to 6.0 m³
- Vessel diameter
- 716 to 1424 mm
- Overall length
- 2530 to 4170 mm
- Installation
- Horizontal

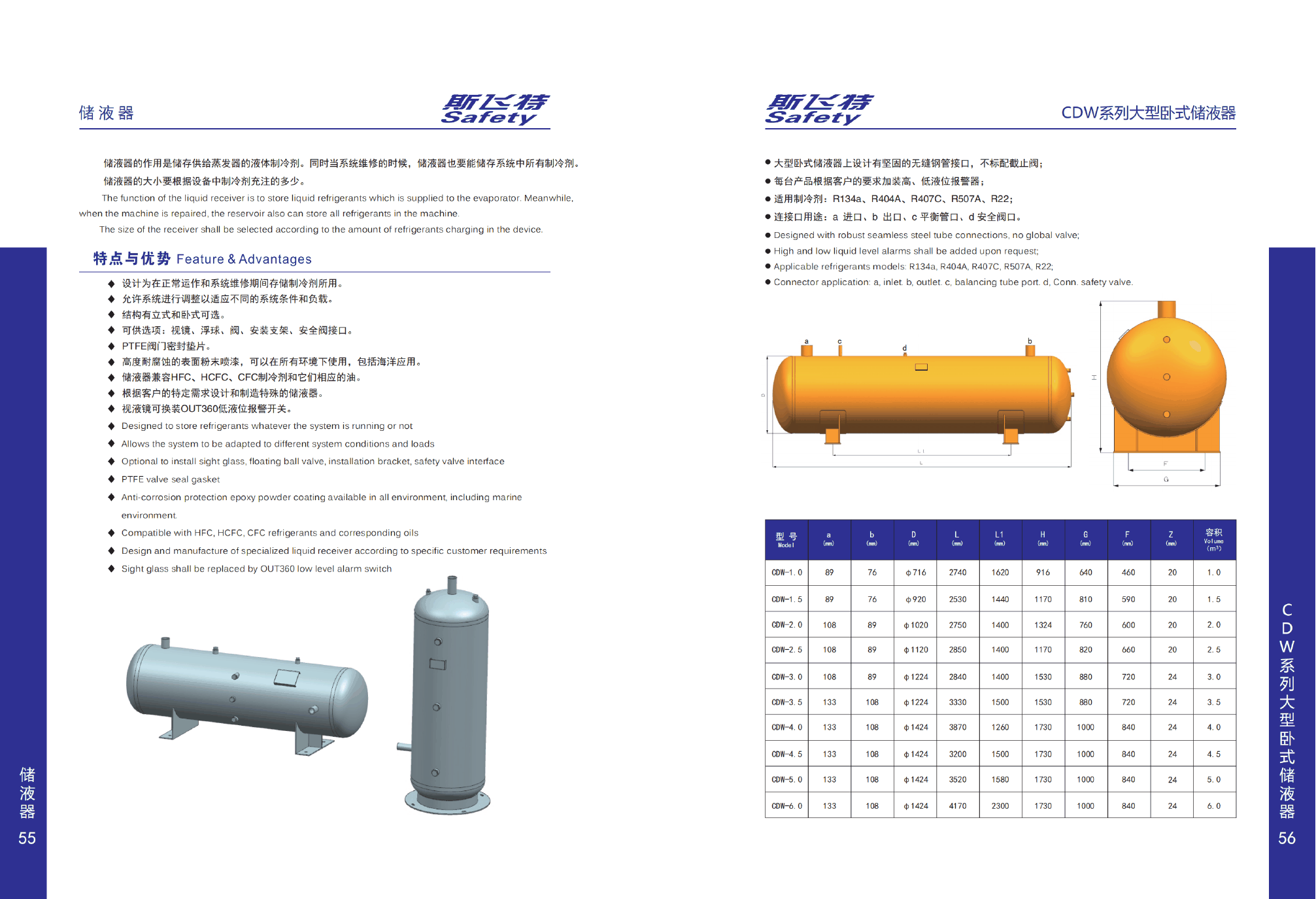

NEW CATALOG DATA · PDF PAGE 37
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
