Shell-and-tube heat exchangers
Shell-and-tube evaporator
Configurable shell-and-tube evaporator for industrial refrigeration and process cooling duty.
- Model / series
- STEV
- Product family
- Shell-and-tube heat exchangers
- Applicable refrigerants
- R22, R134a, R407C; other refrigerants on request
Shell-and-tube evaporator units are selected by cooling load, evaporation temperature, refrigerant, circuit count and connection layout.
Technical data
Technical data
- Model range
- ZF003A to ZF440B
- Circuits
- Single and double circuit
- Published capacity range
- 10.6 to 1547.4 kW
- Heat-transfer reference
- R22; R134a and R407C correction factors available
- Configuration
- Shell-and-tube evaporator
NEW CATALOG DATA · PDF PAGE 44
Complete catalogue technical data

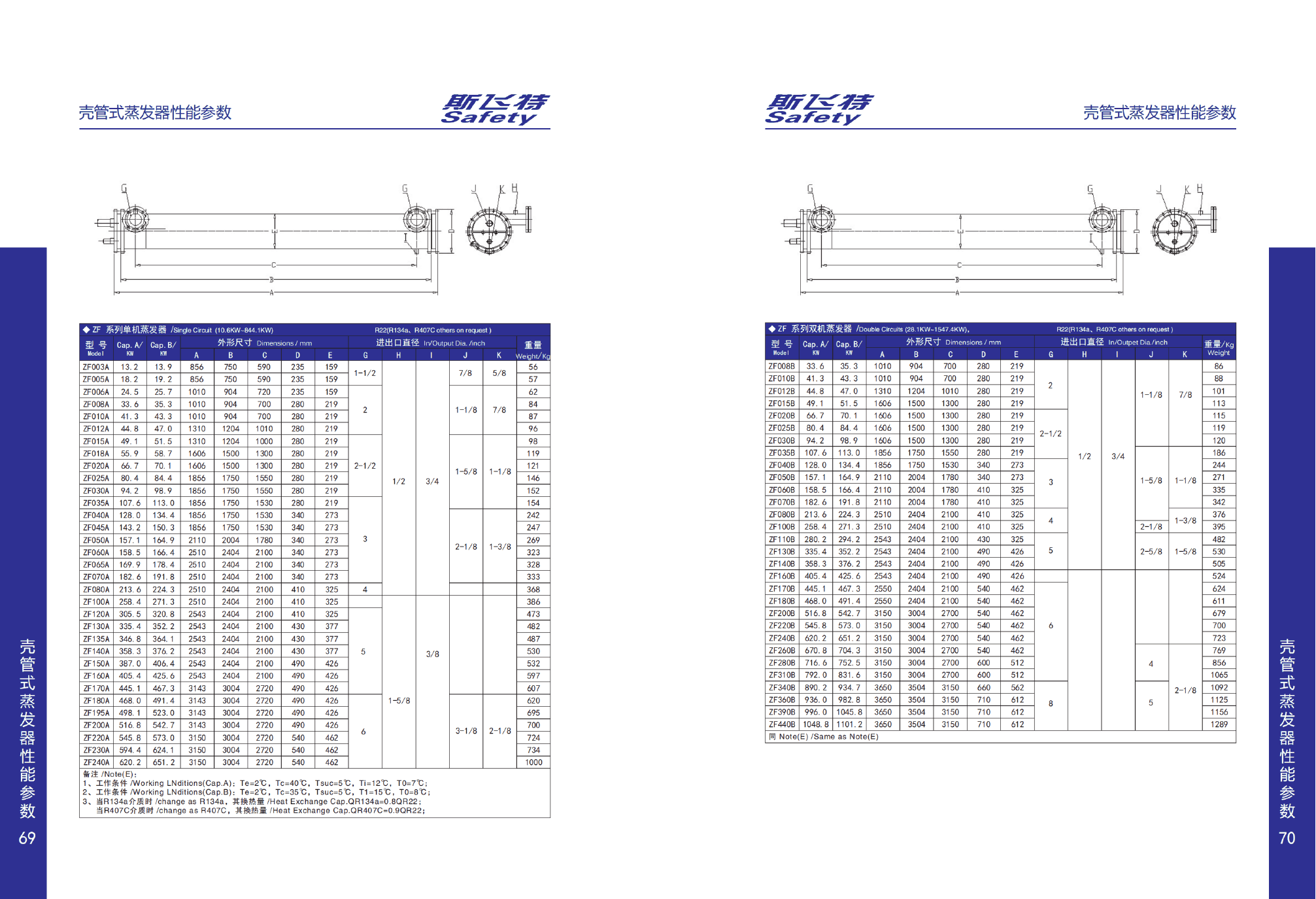

Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
