CO₂ system equipment
DYF Series Subcritical CO₂ oil separator
Catalogue series available for project-specific selection and configuration.
- Model / series
- DYF
- Product family
- CO₂ system equipment
- Applicable refrigerants
- R744 (CO₂)
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- DYF2L to DYF25L
- Maximum allowable pressure
- 60 bar
- Operating temperature
- -40 to 140 °C
- Total volume
- 2 to 25 L
- Published capacity range
- 25.6 to 1005.9 kW
- System
- Subcritical CO₂

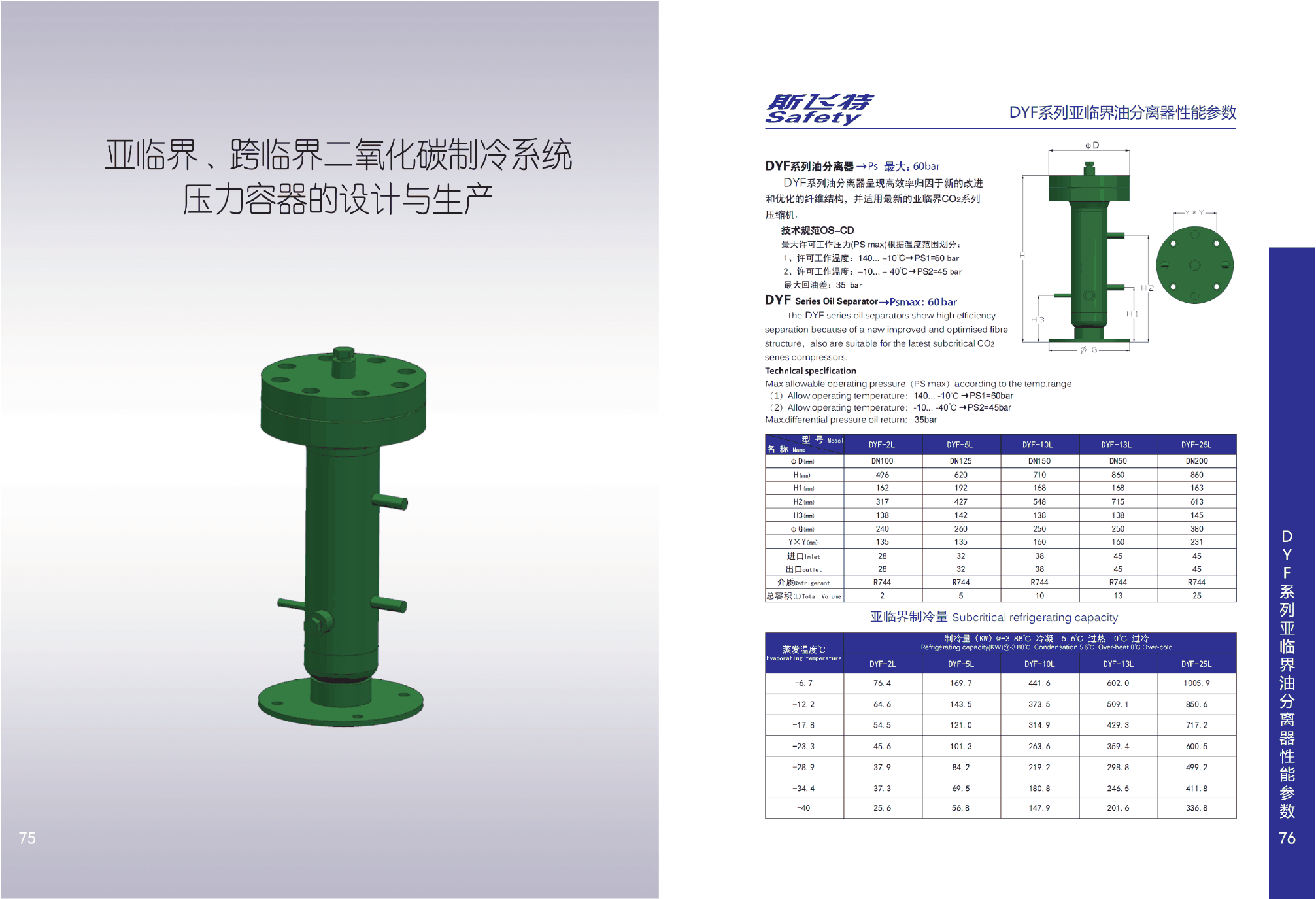

NEW CATALOG DATA · PDF PAGE 47
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
