CO₂ system equipment
SGZ Series CO₂ filter
Catalogue series available for project-specific selection and configuration.
- Model / series
- SGZ
- Product family
- CO₂ system equipment
- Applicable refrigerants
- R744 (CO₂)
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SGZ-125 to SGZ-257
- Maximum allowable pressure
- 60 bar
- Operating temperature
- -50 to 70 °C
- Filter cores
- 1 to 2 cartridges
- Tube outside diameter
- 25 to 57 mm
- Total volume
- 1.4 to 2.6 L

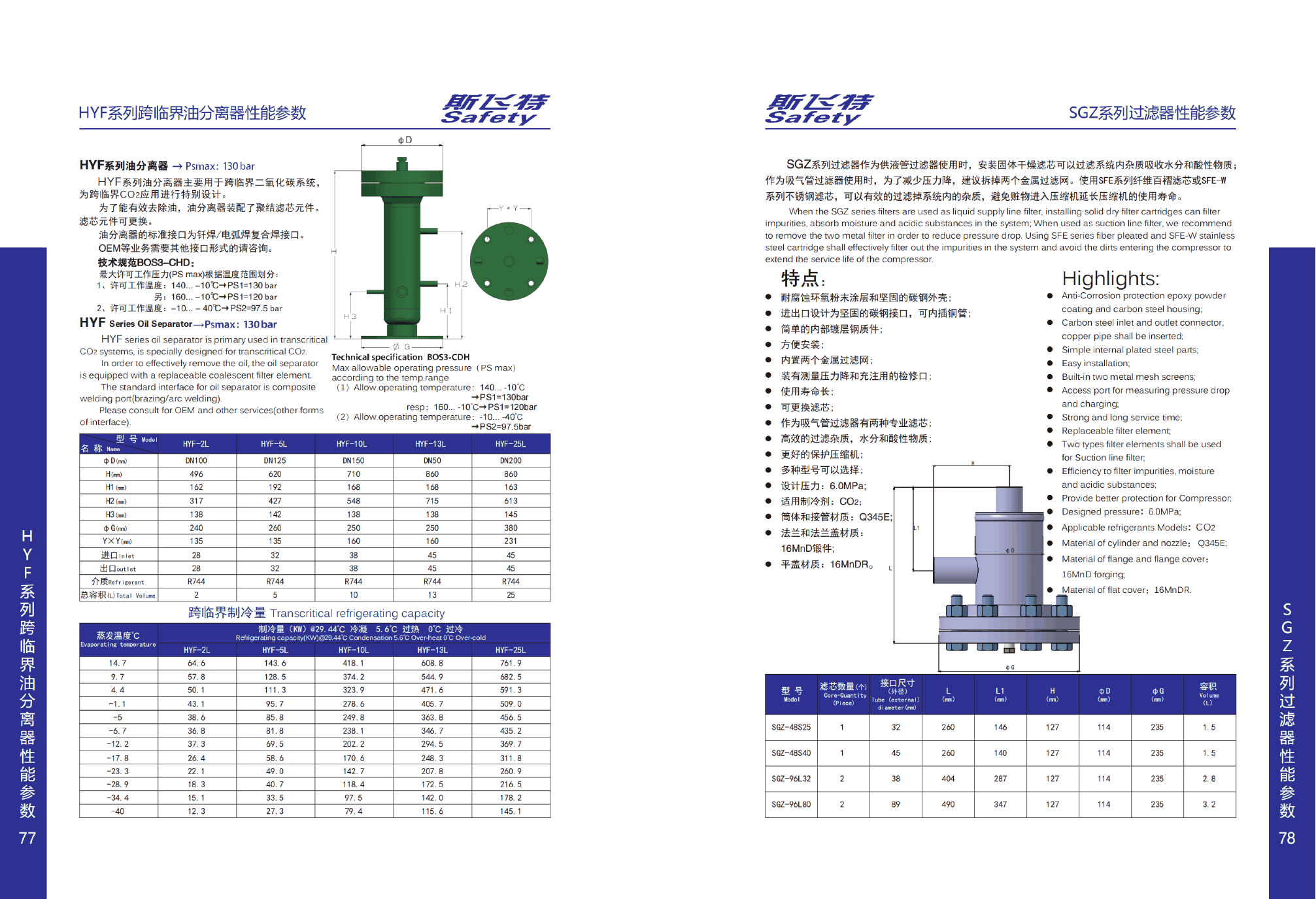

NEW CATALOG DATA · PDF PAGE 48
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
