Licensed pressure vessels
CXDX Series Low-pressure circulation vessel
Catalogue series available for project-specific selection and configuration.
- Model / series
- CXDX
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CXDX-1.5 to CXDX-12
- Liquid volume
- 0.44 to 3.48 m³
- Total volume
- 1.5 to 12 m³
- Processing capacity
- 779 to 3195 m³/h
- Application
- Pump-fed low-pressure circulation

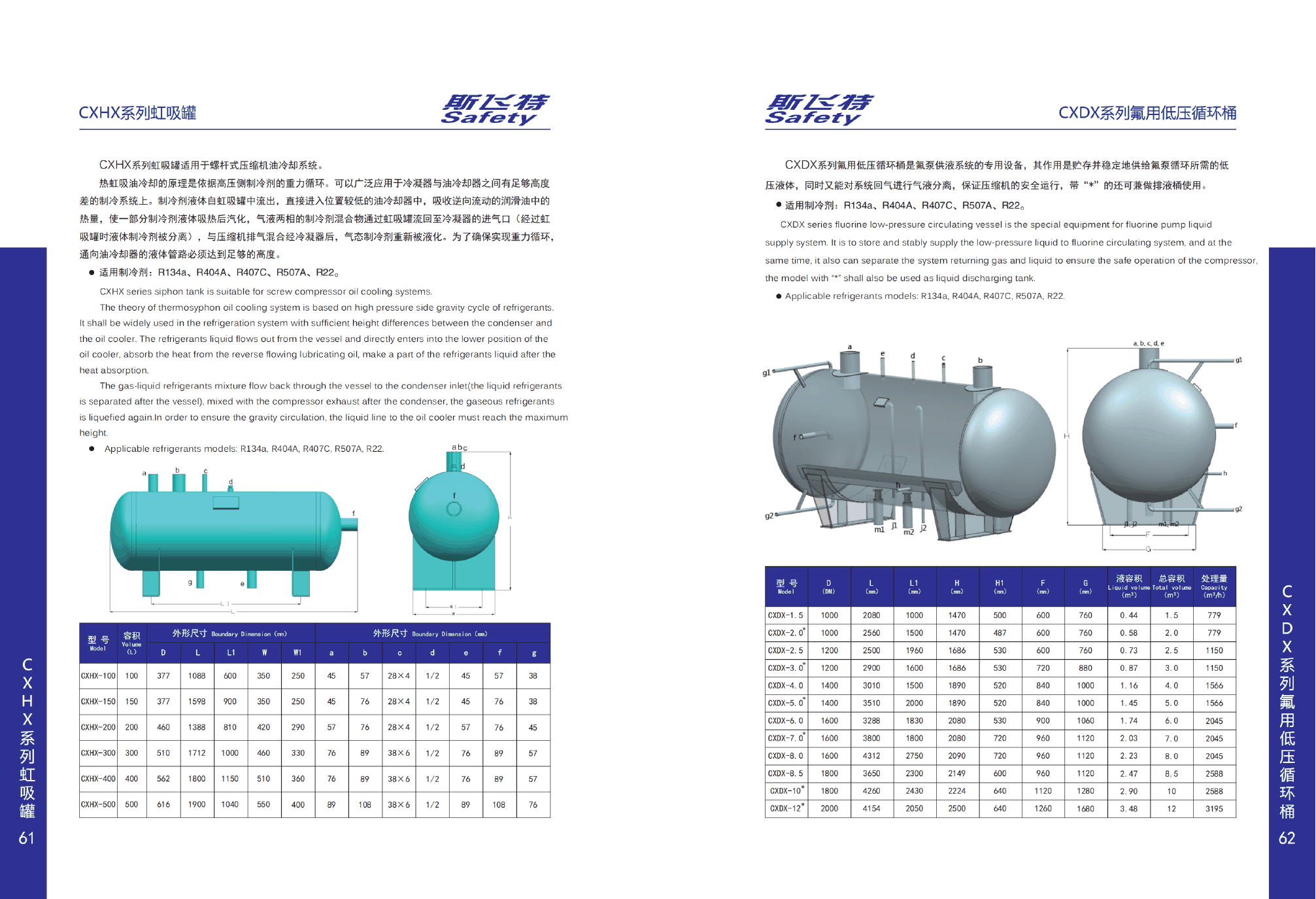

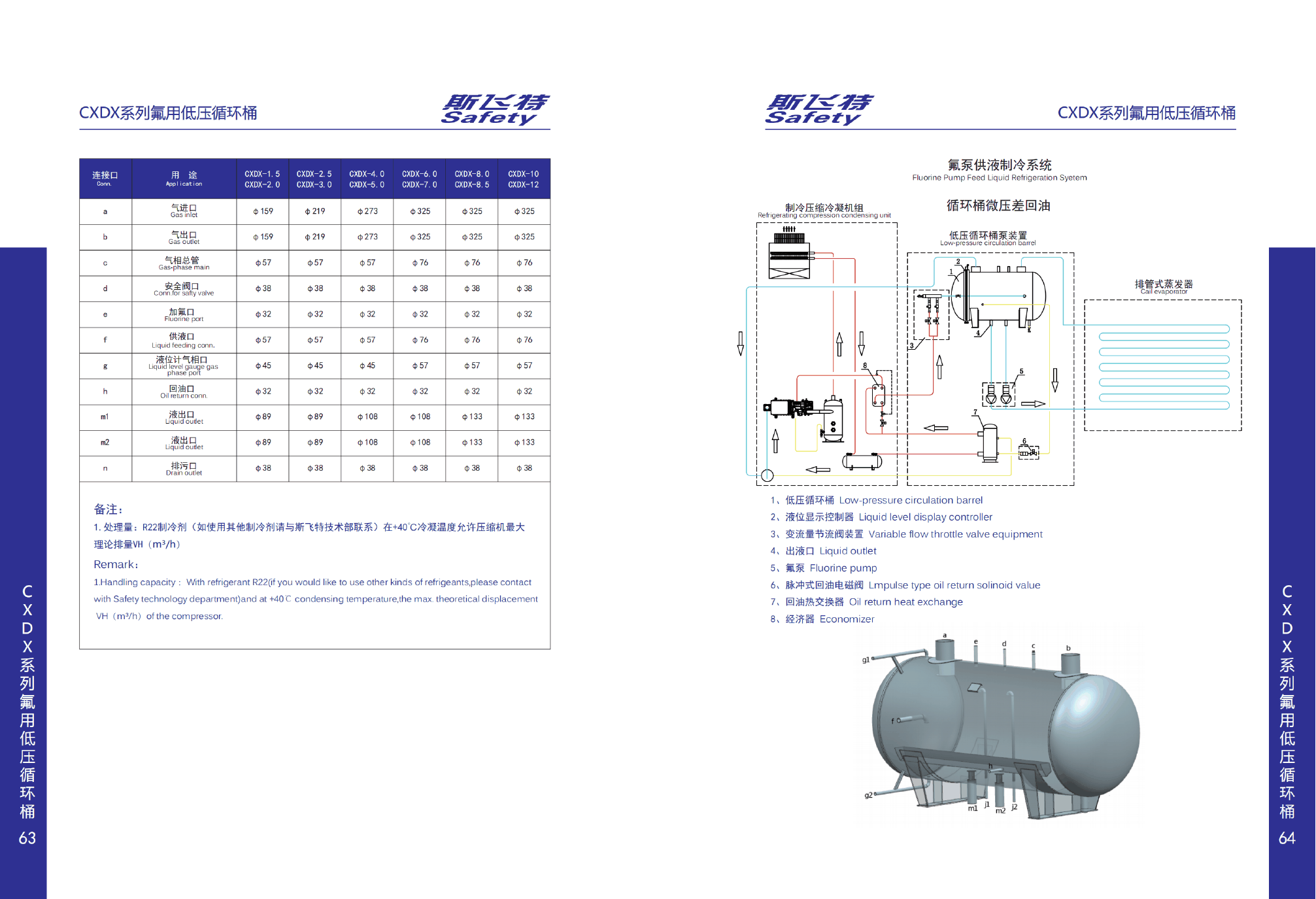

NEW CATALOG DATA · PDF PAGE 40, 41
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
