Shell-and-tube heat exchangers
ZF(U) Series Seawater heat exchanger
Catalogue series available for project-specific selection and configuration.
- Model / series
- ZF(U)
- Product family
- Shell-and-tube heat exchangers
- Applicable refrigerants
- R22, R134a, R407C; other refrigerants on request
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- ZF(U)-012A to ZF(U)-060A
- Nominal capacity
- 36.9 to 185.4 kW
- Nominal power
- 12 to 60 HP
- Construction
- Titanium heat-transfer tubes, titanium composite tube sheet, PP shell
- Service
- Seawater evaporator or condenser

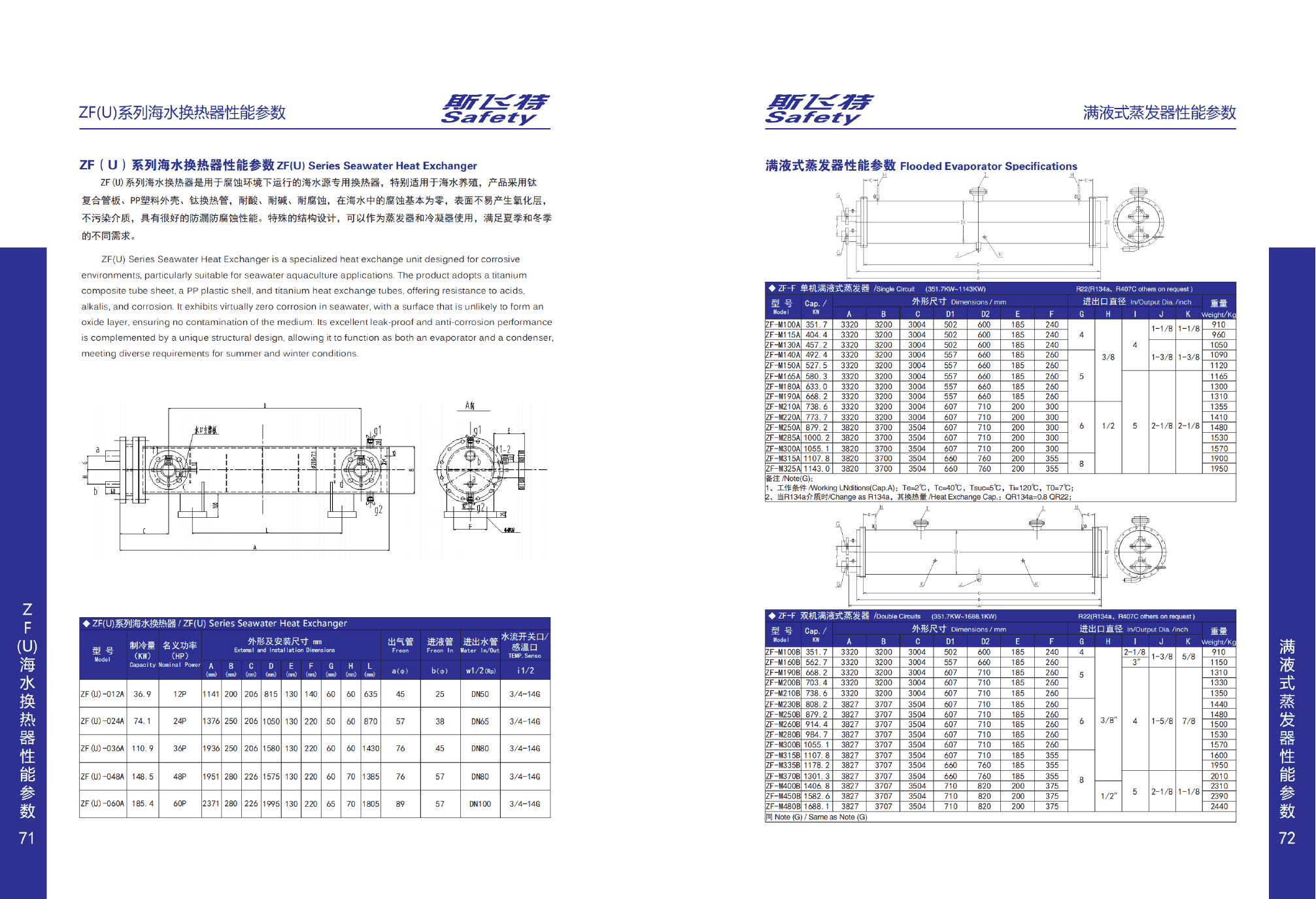

NEW CATALOG DATA · PDF PAGE 45
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
