Miniature vessels
SCL2 Series Chemical-engineering vertical receiver
Catalogue series available for project-specific selection and configuration.
- Model / series
- SCL2
- Product family
- Miniature vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SCL2-5 to SCL2-20
- Installation
- Vertical
- Inlet / outlet
- 1/2 to 7/8 in
- Volume
- 5 to 20 L
- Design pressure
- 3.0 MPa

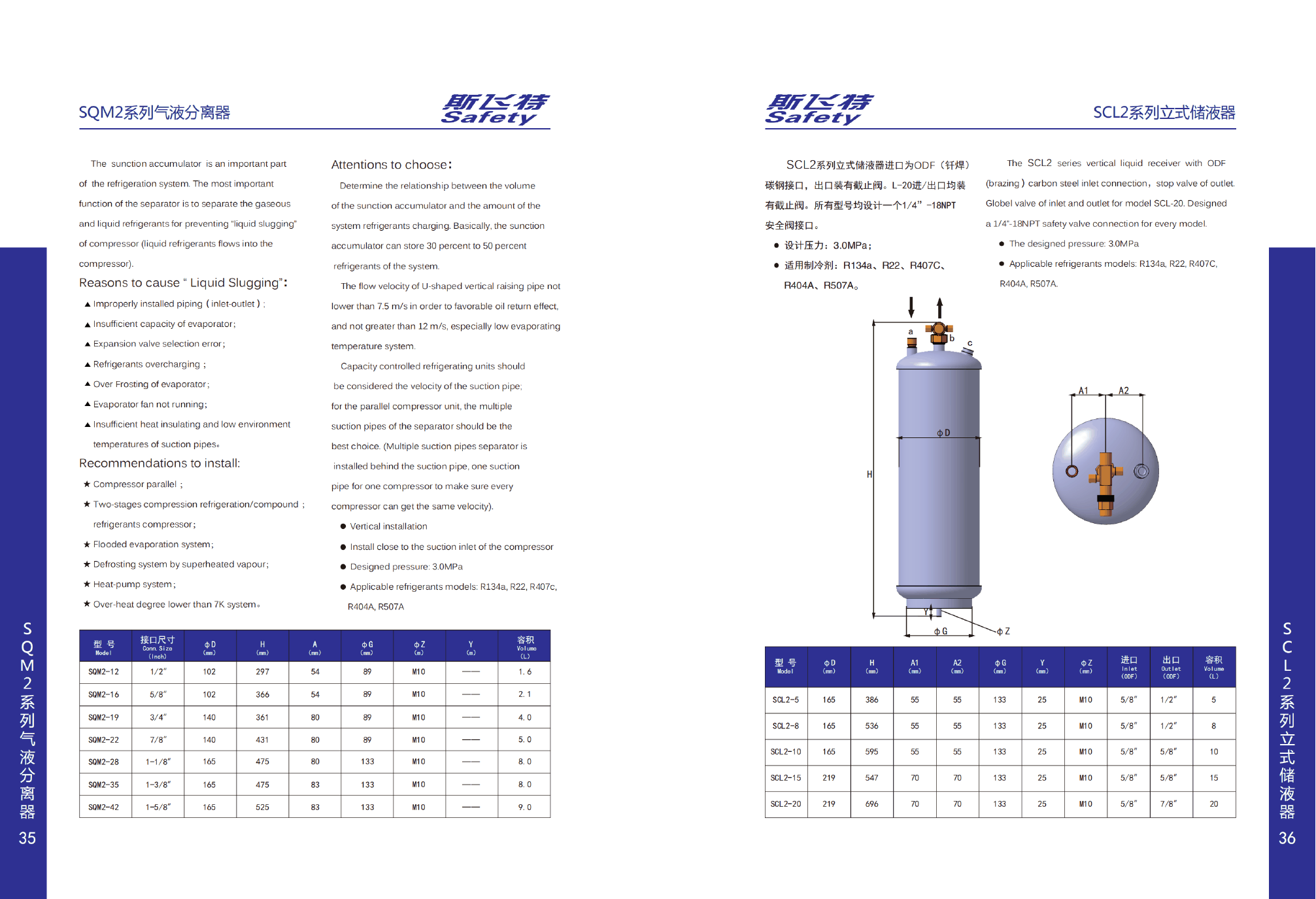

NEW CATALOG DATA · PDF PAGE 27
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
