Licensed pressure vessels
CXQF Series Suction accumulator
Catalogue series available for project-specific selection and configuration.
- Model / series
- CXQF
- Product family
- Licensed pressure vessels
- Applicable refrigerants
- R134a, R22, R407C, R404A, R507A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- CXQF-57 to CXQF-219
- Gas pipe diameter
- 57 to 219 mm
- Total volume
- 29 to 400 L
- Installation
- Vertical

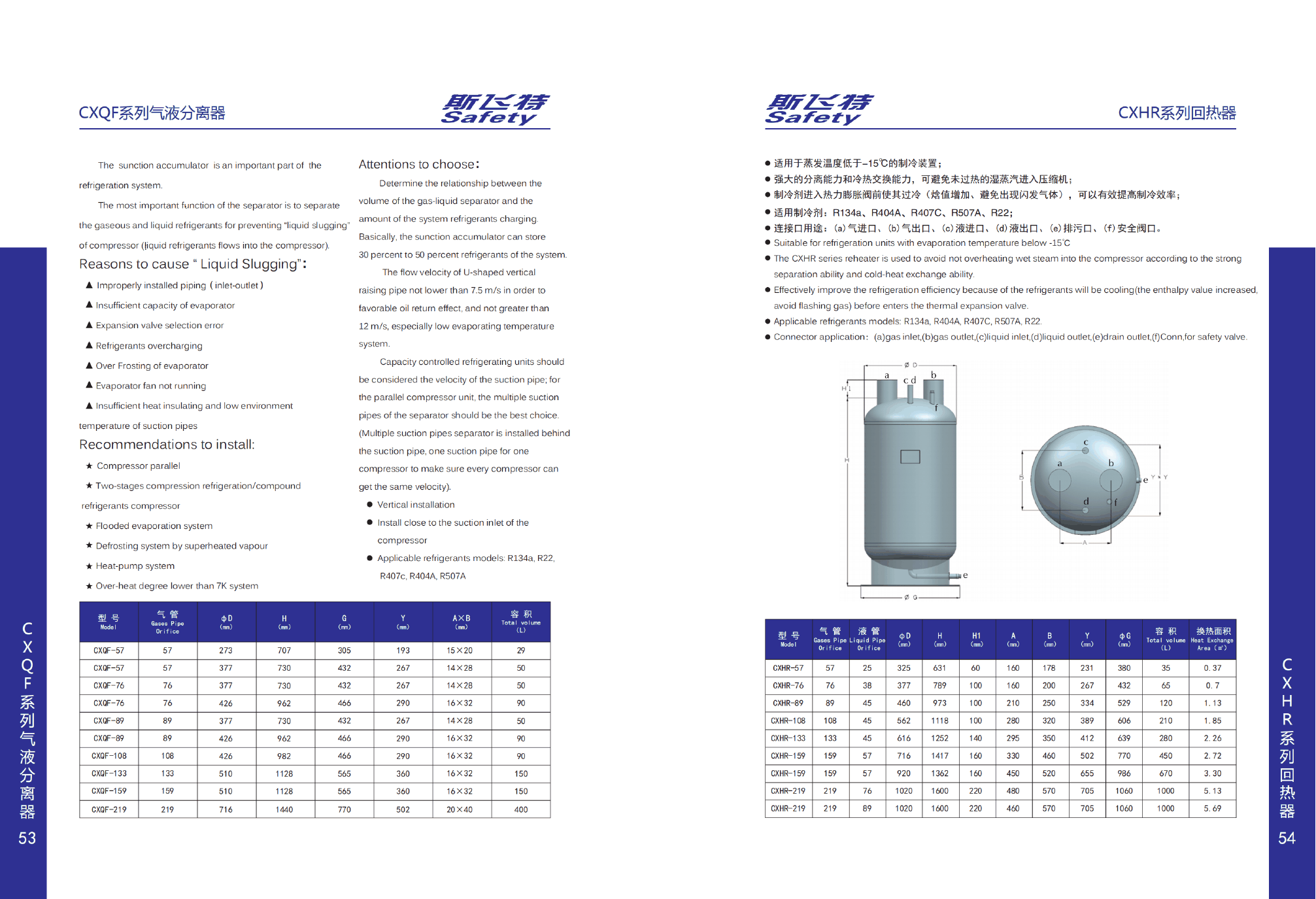

NEW CATALOG DATA · PDF PAGE 35, 36
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
