← Back to catalogue
Miniature vessels
SGG Series Filter drier
Catalogue series available for project-specific selection and configuration.
- Model / series
- SGG
- Product family
- Miniature vessels
- Applicable refrigerants
- CFC, HCFC and HFC refrigerants, including R410A
Final dimensions, connections, materials and operating limits are confirmed against refrigerant, capacity, pressure and temperature requirements.
Technical data
Technical data
- Series models
- SGG-0810 to SGG-3019
- Connection size
- 3/8 to 7/8 in
- Volume
- 0.2 to 0.7 L
- Maximum operating pressure
- 3.1 MPa

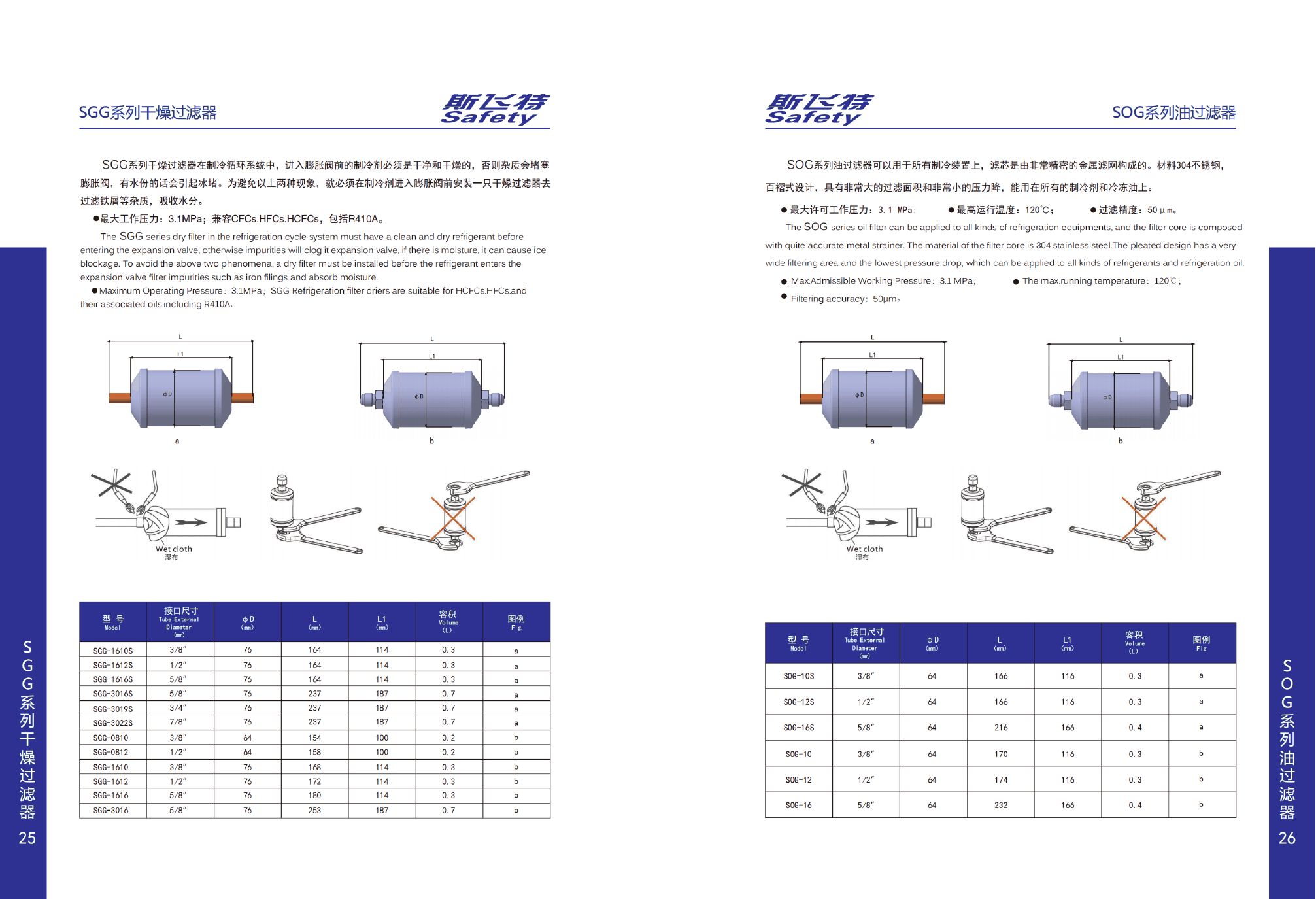

NEW CATALOG DATA · PDF PAGE 22
Complete catalogue technical data
Captured directly from the new catalogue with the original descriptions, drawings, model tables and dimensions preserved. Open any image to inspect it at full resolution.
Original catalogue pages · not redrawn
